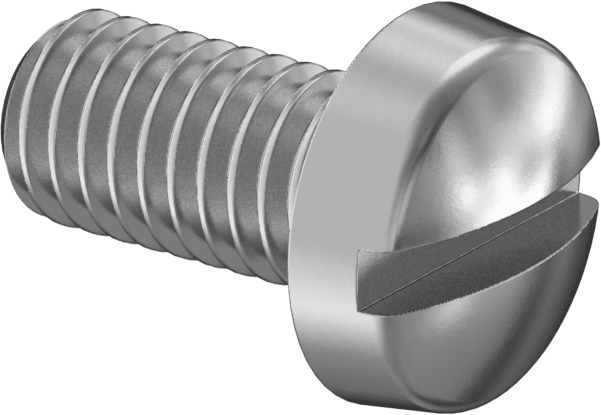

316 Stainless Steel Slotted Screws
Cheese Head, M3 x 0.5 mm Thread Size, 6 mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Cheese |
Profile | Narrow |
Height | 2 mm |
Diameter | 5.5 mm |
Drive Style | Slotted |
Length | 6 mm |
Threading | Fully Threaded |
Tensile Strength | 100,000 psi |
Specifications Met | DIN 84, ISO 1207 |
Hardness | Not Rated |
Material | 316 Stainless Steel |
Passivation | Passivated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These slotted cheese head screws won't rust or corrode from moisture and chemicals. They have a narrow profile, so they sneak past flanges and raised surfaces without snagging. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.

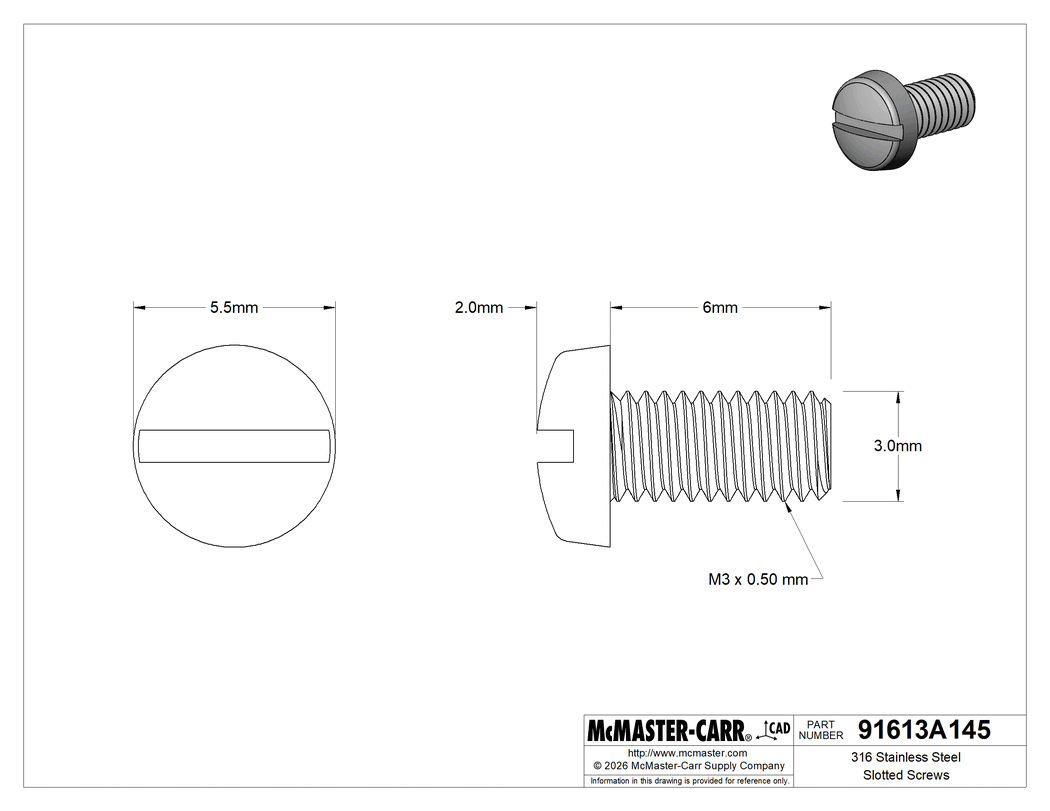

The information in this 3-D model is provided for reference only.
