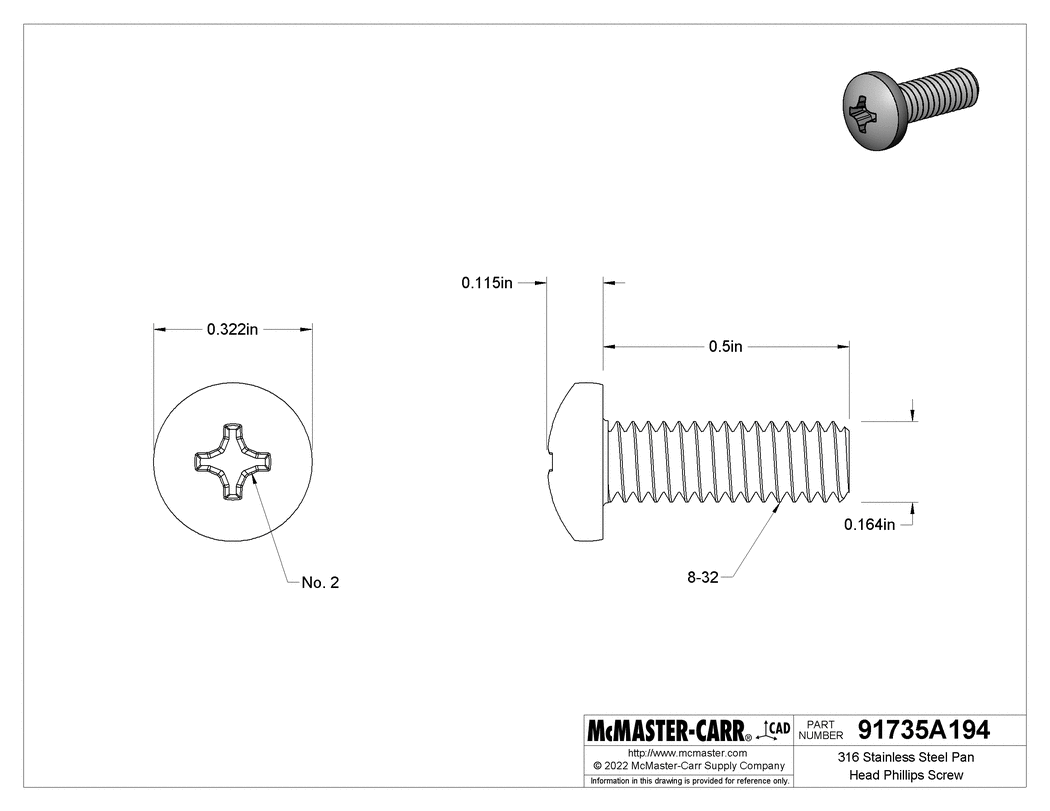

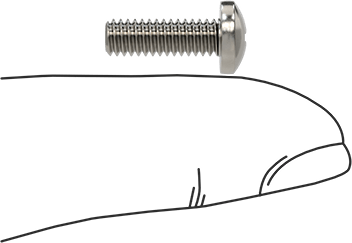

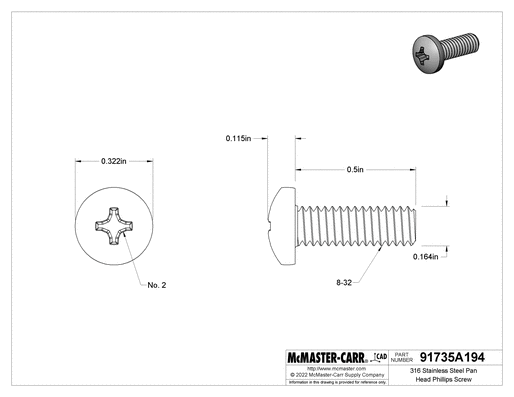

316 Stainless Steel Pan Head Phillips Screw
Super-Corrosion-Resistant, 8-32 Thread Size, 1/2" Long
Thread | |
Size | 8-32 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.115" |
Diameter | 0.322" |
Drive | |
Style | Phillips |
Size | No. 2 |
Material | 316 Stainless Steel |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B85 |
Passivation | Passivated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
Screw Size Decimal Equivalent | 0.164" |
System of Measurement | Inch |
Country of Origin | China, Philippines, Taiwan, Thailand |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

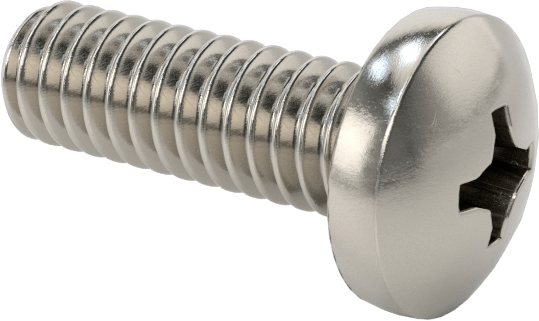

These stainless steel pan head Phillips screws won't rust or corrode when exposed to moisture and chemicals. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.
