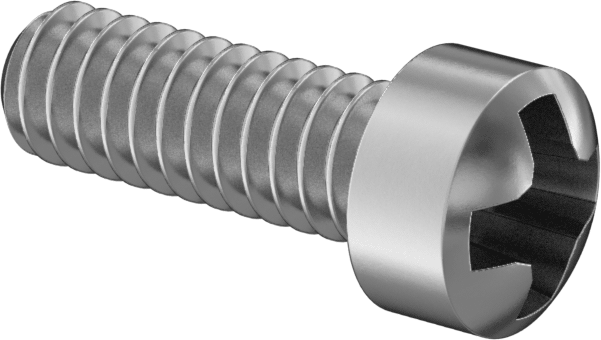

Narrow Fillister Head Phillips Screws
High-Profile, 2-56 Thread, 1/4" Long
Thread | |
Size | 2-56 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Fillister |
Profile | High, Narrow |
Height | 0.083" |
Diameter | 0.14" |
Drive | |
Style | Phillips |
Size | No. 1 |
Length | 1/4" |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B85 |
Material | 18-8 Stainless Steel |
Passivation | Passivated |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.086" |
System of Measurement | Inch |
Country of Origin | Taiwan, Thailand |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The most corrosion-resistant fillister head Phillips screws we offer. They have a tall head with a deep drive, so drivers are less likely to slip out. They also have a narrow diameter and fit into tight spaces, such as holes deep inside machinery. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers may slip when you apply too much force.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

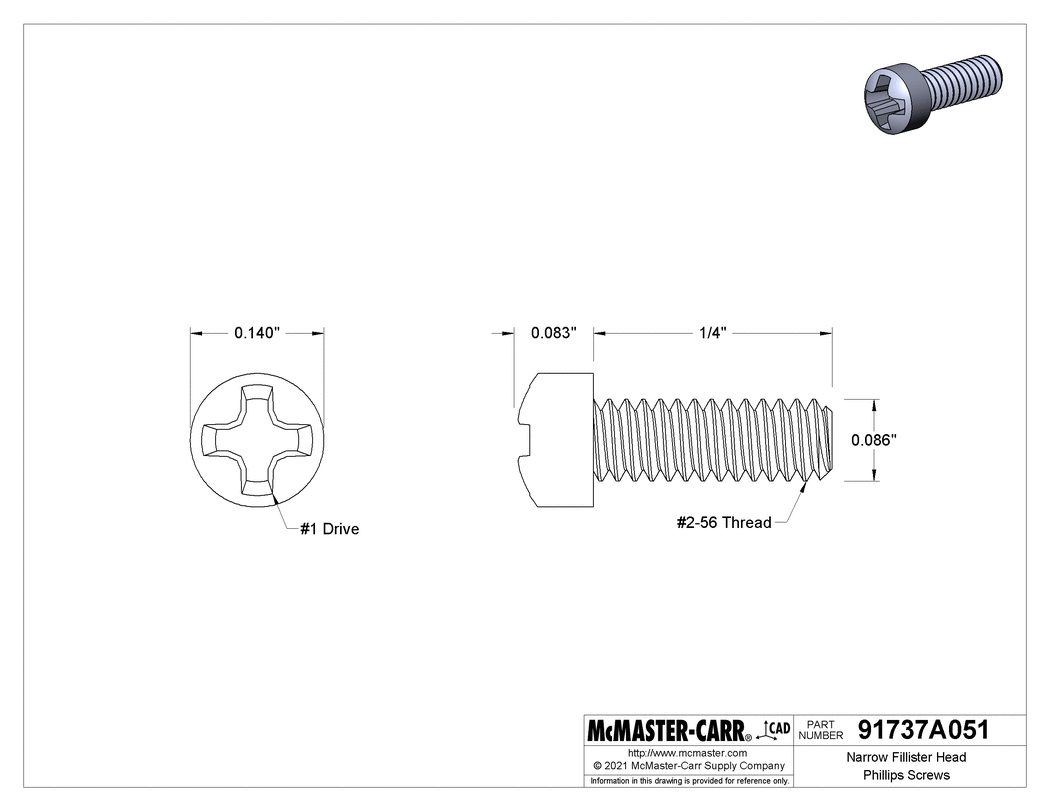

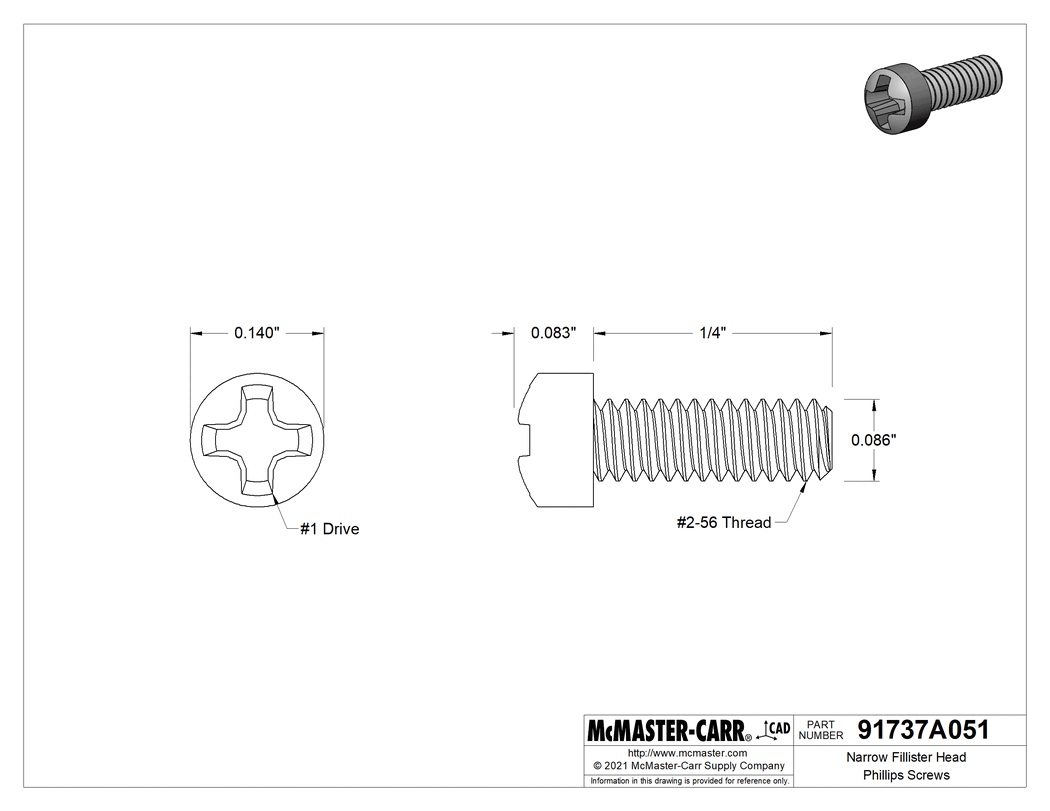

The information in this 3-D model is provided for reference only.
