    Passivated 18-8 Stainless Steel Pan Head Phillips Screw

    4-40 Thread, 1/4" Long

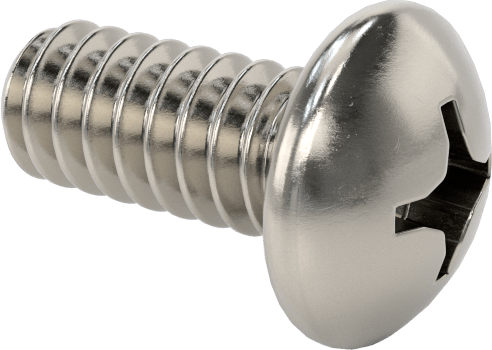

    Image of Product. Front orientation. Passivated 18-8 Stainless Steel Pan Head Phillips Screw, 4-40 Thread, 1/4" Long.

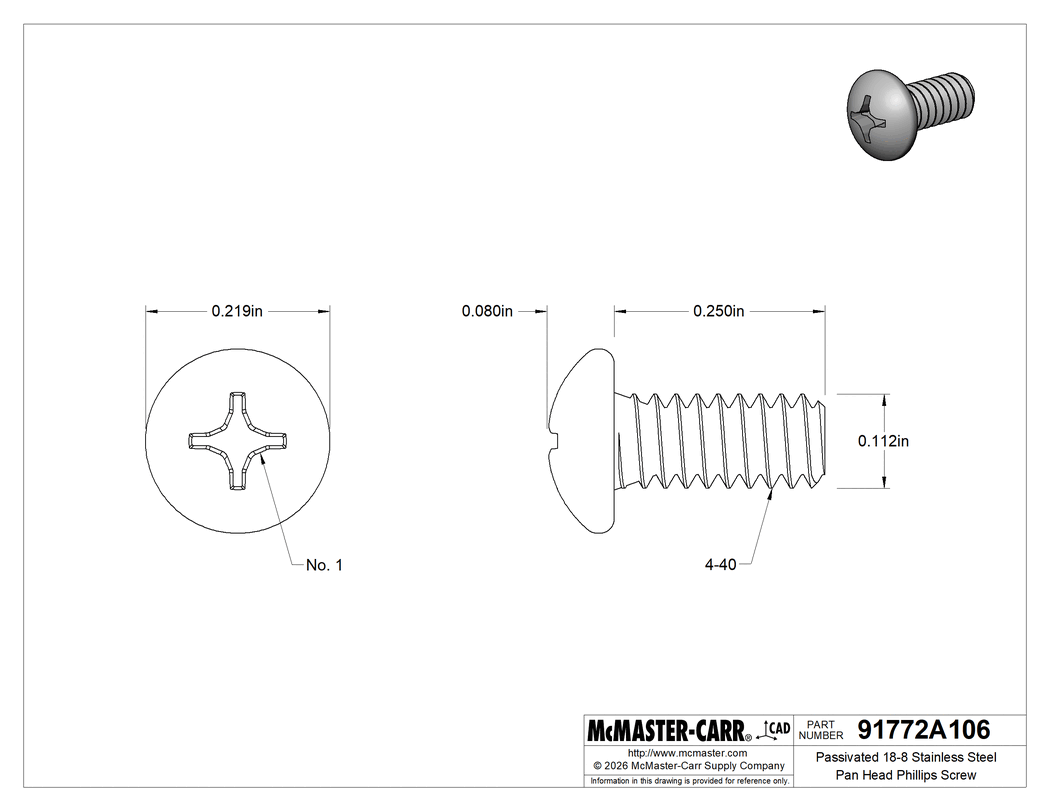

    Technical Drawing of Passivated 18-8 Stainless Steel Pan Head Phillips Screw, 4-40 Thread, 1/4" Long.
    Image of Product. Back orientation. Passivated 18-8 Stainless Steel Pan Head Phillips Screw, 4-40 Thread, 1/4" Long.

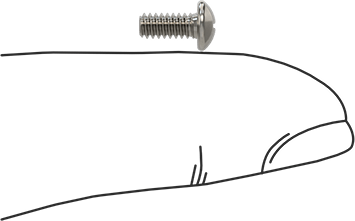

    Image of Product. Side1 orientation. Contains SizingReference. Passivated 18-8 Stainless Steel Pan Head Phillips Screw, 4-40 Thread, 1/4" Long.
    2-D PDF
    00000 per pack of 100
    91772A106
    Delivers tomorrow 7-9 am
    91772A106
    00000 per pack of 100
    Pack of 100
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    4-40

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    UNC

    Fit

    Unified Standard Class 2A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Pan

    Profile

    Standard

    Height

    0.08"

    Diameter

    0.219"

    Drive

    Style

    Phillips

    Size

    No. 1

    Material

    18-8 Stainless Steel

    Length

    1/4"

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Specifications Met

    ASME B18.6.3

    Hardness

    Rockwell B70

    Passivation

    Passivated

    Performance

    Corrosion Resistant

    Screw Size Decimal Equivalent

    0.112"

    System of Measurement

    Inch

    Country of Origin

    Canada, China, Germany, India, Italy, Japan, Mexico, Taiwan, Thailand, United States, Vietnam

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These stainless steel pan head Phillips screws won't rust or corrode when exposed to moisture and chemicals. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

    Length is measured from under the head.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

    The information in this 3-D model is provided for reference only.
