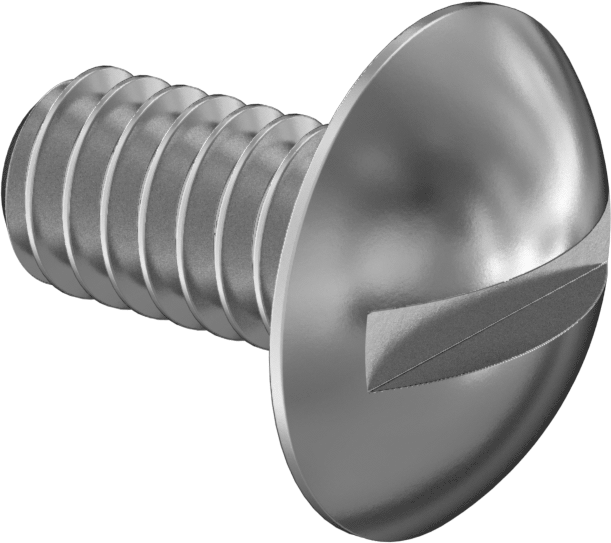

Stainless Steel Truss Head Slotted Screws
1/4"-20 Thread Size, 1/2" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Truss |
Profile | Wide |
Height | 0.15" |
Diameter | 0.573" |
Drive Style | Slotted |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 100,000 psi |
Hardness | Rockwell B100 |
Material | 18-8 Stainless Steel |
Passivation | Passivated |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.250" |
Specifications Met | ASME B18.6.3 |
System of Measurement | Inch |
Country of Origin | United States, China, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Taiwan, Thailand, United Arab Emirates |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most corrosion-resistant truss head slotted screws. Their wide head spreads out pressure without adding a washer to reduce the risk of crushing thin material, such as sheet metal. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

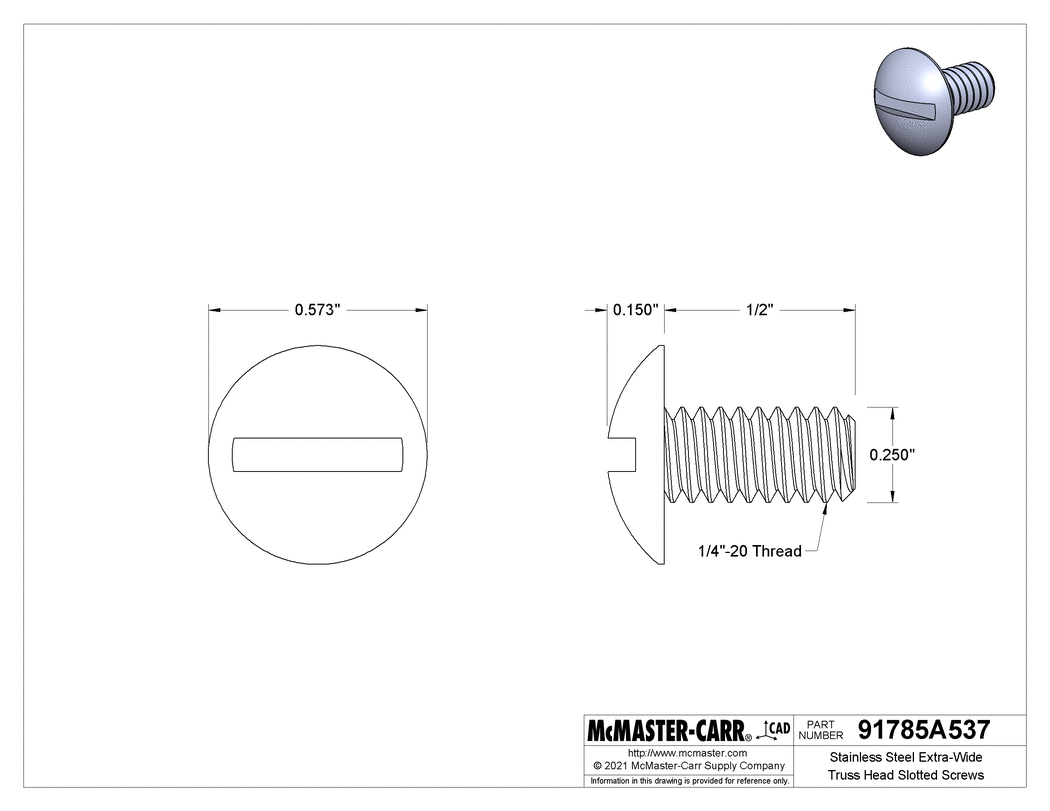

The information in this 3-D model is provided for reference only.
