    Stainless Steel Binding Head Slotted Screws

    8-32 Thread, 3/8" Long

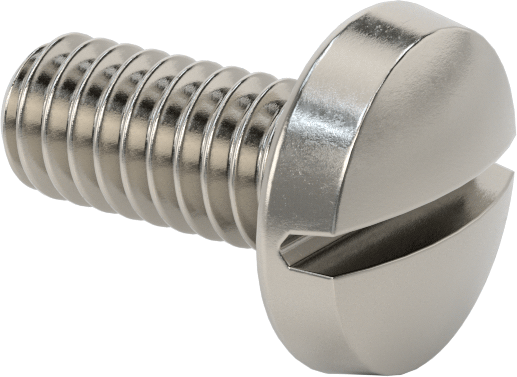

    Image of Product. Front orientation. Stainless Steel Binding Head Slotted Screws, 8-32 Thread, 3/8" Long.

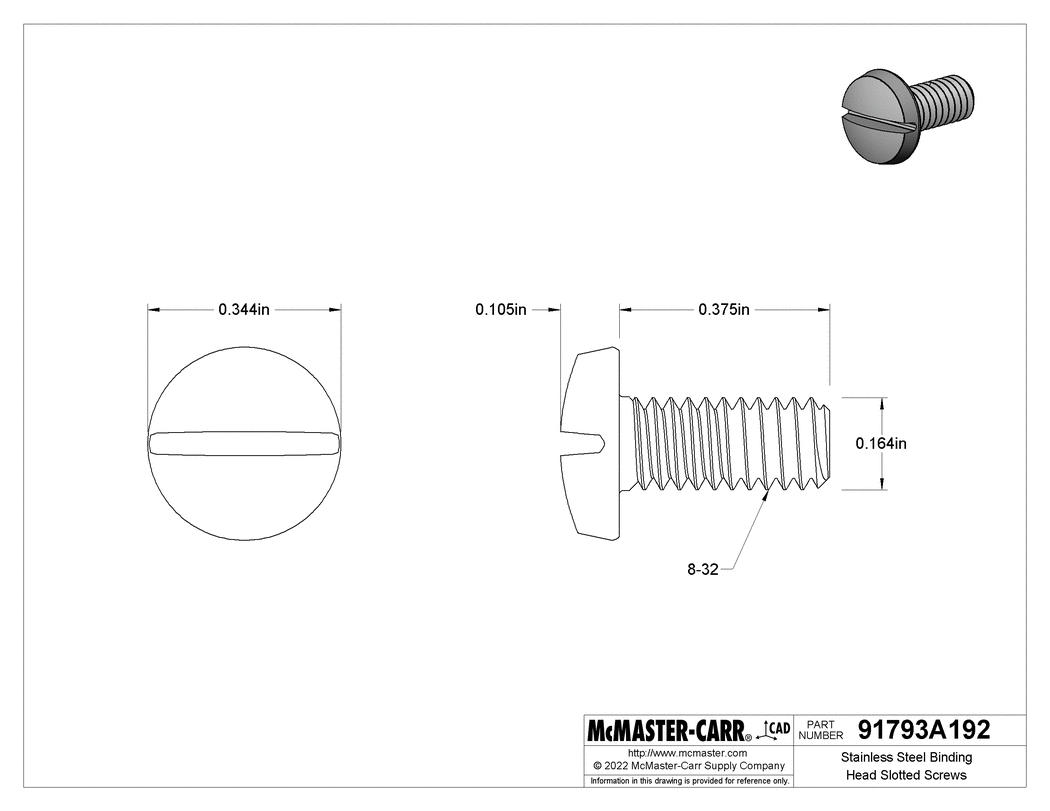

    Technical Drawing of Stainless Steel Binding Head Slotted Screws, 8-32 Thread, 3/8" Long.
    Image of Product. Back orientation. Stainless Steel Binding Head Slotted Screws, 8-32 Thread, 3/8" Long.

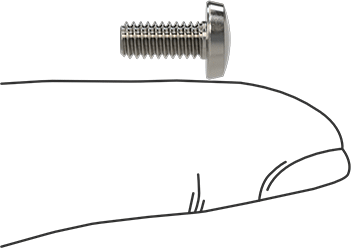

    Image of Product. Side1 orientation. Contains SizingReference. Stainless Steel Binding Head Slotted Screws, 8-32 Thread, 3/8" Long.
    2-D PDF
    00000 per pack of 100
    91793A192
    Delivers tomorrow 7-9 am
    91793A192
    00000 per pack of 100
    Pack of 100
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    8-32

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    UNC

    Fit

    Unified Standard Class 2A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Binding

    Profile

    Wide

    Height

    0.105"

    Diameter

    0.344"

    Drive Style

    Slotted

    Material

    18-8 Stainless Steel

    Length

    3/8"

    Threading

    Fully Threaded

    Tensile Strength

    100,000 psi

    Specifications Met

    ASME B18.6.3

    Hardness

    Rockwell B100

    Passivation

    Passivated

    Performance

    Corrosion Resistant

    Screw Size Decimal Equivalent

    0.164"

    System of Measurement

    Inch

    Country of Origin

    China, Taiwan, Thailand

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Our most corrosion-resistant binding head screws. They have a wide, tapered head that secures wires and terminals in electrical connections. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.

    Length is measured from under the head.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
