18-8 Stainless Steel Fillister Head Slotted Screw

1/4"-28 Thread Size, 3/4" Long

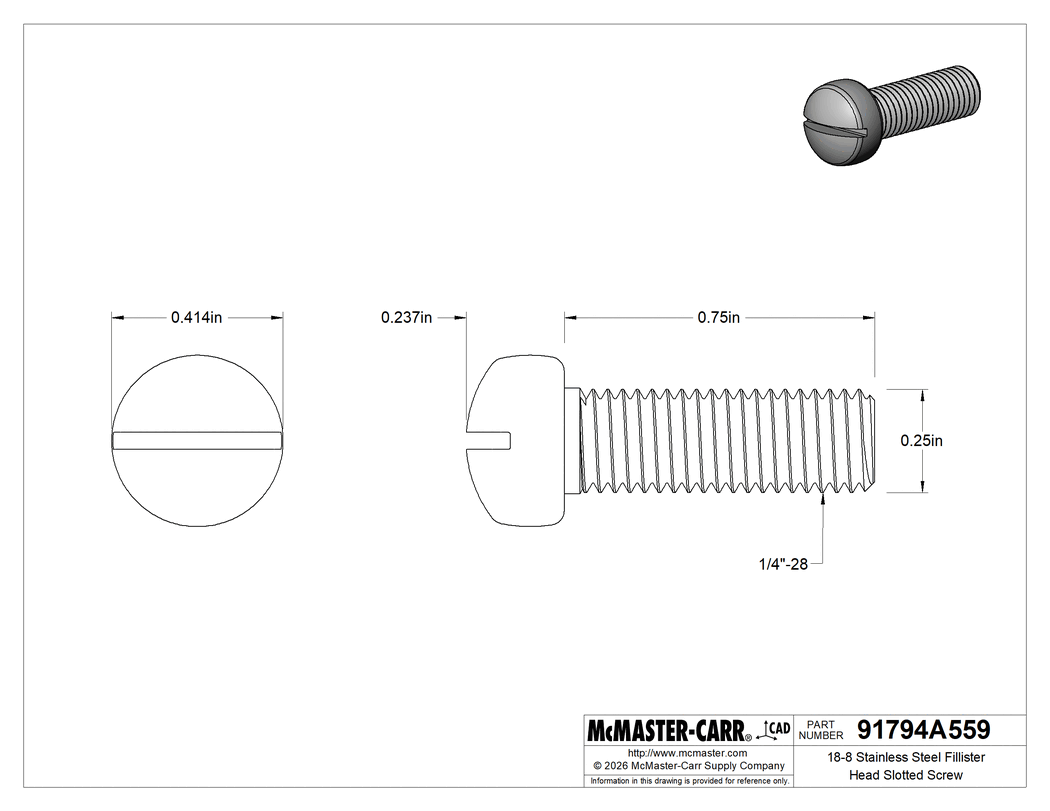

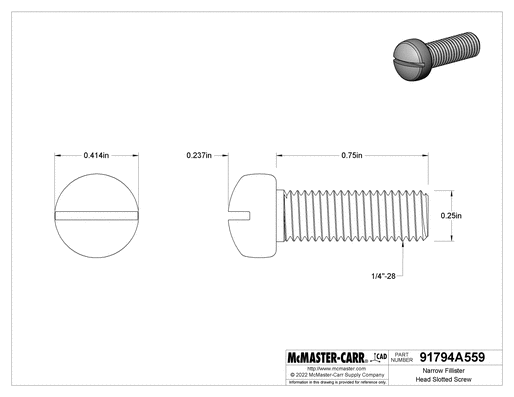

Technical Drawing of 18-8 Stainless Steel Fillister Head Slotted Screw, 1/4"-28 Thread Size, 3/4" Long.

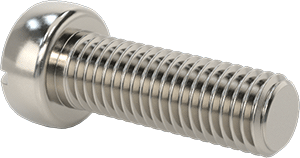

Image of Product. Back orientation. 18-8 Stainless Steel Fillister Head Slotted Screw, 1/4"-28 Thread Size, 3/4" Long.

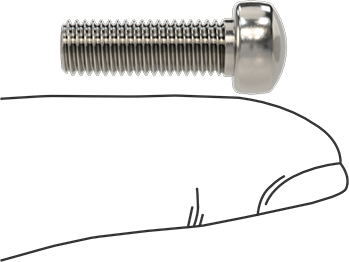

Image of Product. Side1 orientation. Contains SizingReference. 18-8 Stainless Steel Fillister Head Slotted Screw, 1/4"-28 Thread Size, 3/4" Long.

2-D PDF

000000 per pack of 25

91794A559

In stock

91794A559

000000 per pack of 25

QuantityPack of 25

In stock

Select a compatible file type: Parasolid

Solidworks 2022 and Parasolid files now available

Solidworks 2022, PDF, and DWG files now available

Parasolid files now available

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread
Size	1/4"-28
Direction	Right Hand
Spacing	Fine
Type	UNF
Fit	Unified Standard Class 2A
Tip Type	Flat
Fastener Head Type	Rounded
Head
Style	Fillister
Profile	High, Narrow
Height	0.237"
Diameter	0.414"
Drive Style	Slotted
Length	3/4"
Threading	Fully Threaded
Tensile Strength	70,000 psi
Specifications Met	ASME B18.6.3
Hardness	Rockwell B55
Material	18-8 Stainless Steel
Passivation	Passivated
Performance	Corrosion Resistant
Screw Size Decimal Equivalent	0.250"
System of Measurement	Inch
Country of Origin	China, Taiwan, Thailand
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

The most corrosion-resistant fillister head slotted screws we offer. With a deeper drive than others, fillister heads reduce the likelihood that basic slotted drivers slip as you hand-tighten them. Since they also have a narrow diameter, they fit into tight spaces, such as holes tucked away inside machinery.

Length is measured from under the head.

18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
