    18-8 Stainless Steel Cheese Head Slotted Screw

    M1 x 0.25 mm Thread Size, 3 mm Long

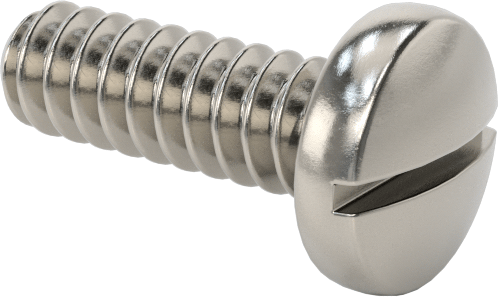

    Image of Product. Front orientation. 18-8 Stainless Steel Cheese Head Slotted Screw, M1 x 0.25 mm Thread Size, 3 mm Long.

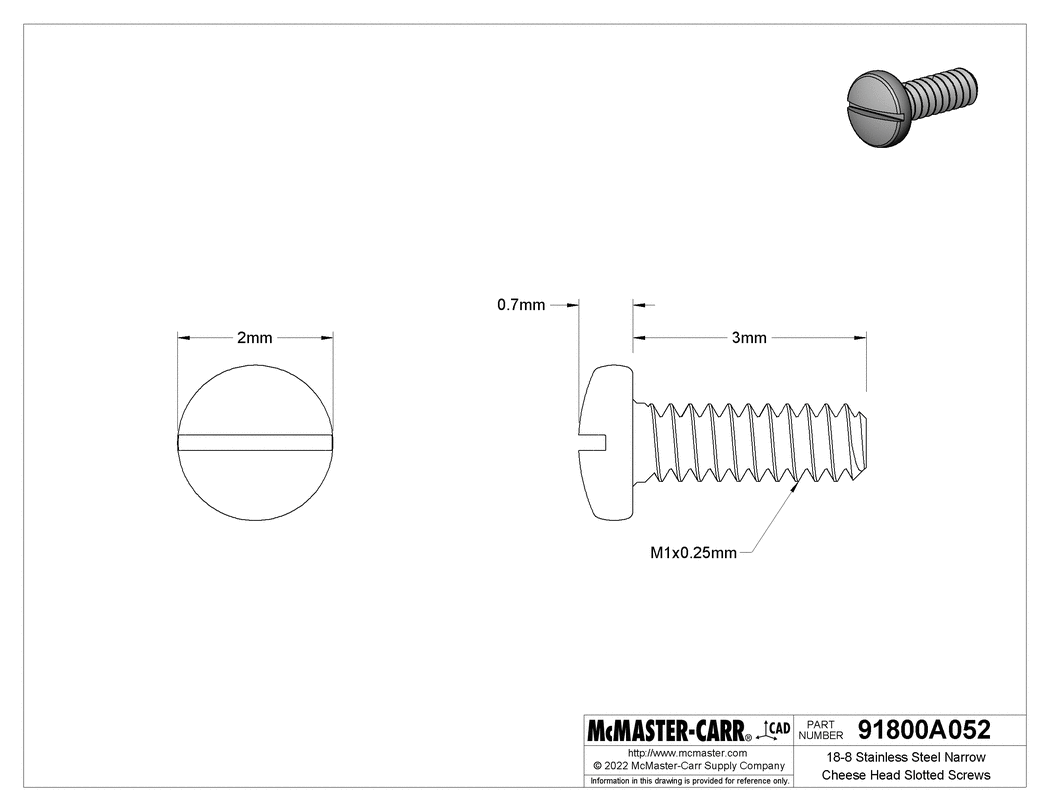

    Technical Drawing of 18-8 Stainless Steel Cheese Head Slotted Screw, M1 x 0.25 mm Thread Size, 3 mm Long.
    Image of Product. Back orientation. 18-8 Stainless Steel Cheese Head Slotted Screw, M1 x 0.25 mm Thread Size, 3 mm Long.
    Image of Product. Side1 orientation. Contains SizingReference. 18-8 Stainless Steel Cheese Head Slotted Screw, M1 x 0.25 mm Thread Size, 3 mm Long.
    2-D PDF
    000000 per pack of 5
    91800A052
    In stock
    91800A052
    000000 per pack of 5
    Pack of 5
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M1

    Pitch

    0.25 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6g

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Cheese

    Profile

    Narrow

    Height

    0.7 mm

    Diameter

    2 mm

    Drive Style

    Slotted

    Length

    3 mm

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Specifications Met

    DIN 84, ISO 1207

    Hardness

    Rockwell B70

    Material

    18-8 Stainless Steel

    Passivation

    Passivated

    Performance

    Corrosion Resistant

    System of Measurement

    Metric

    Country of Origin

    Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These slotted cheese head screws won't rust or corrode from moisture and chemicals. They have a narrow profile, so they sneak past flanges and raised surfaces without snagging. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.

    Length is measured from under the head.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
