Alloy Steel Flanged Button Head Screws
Black-Oxide, M6 x 1.00 mm Thread, 12mm Long
Thread | |
Size | M6 |
Pitch | 1 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Flanged, Rounded |
Head | |
Style | Button |
Profile | Wide |
Height | 3.3 mm |
Diameter | 10 mm |
Drive | |
Style | Hex |
Size | 4 mm |
Length | 12 mm |
Flange Diameter | 13.6 mm |
Threading | Fully Threaded |
Tensile Strength | 150,000 psi |
Specifications Met | ISO 7380-2 |
Fastener Strength Grade/Class | ISO Class 10.9 |
Hardness | Rockwell C32 |
Material | Black-Oxide Alloy Steel |
Performance | High Strength |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
With nearly twice the tensile strength of others, these alloy screws are the strongest flanged rounded head screws we offer. The flange spreads out pressure, reducing damage to thin and soft materials. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Length is measured from under the head.
Black-Oxide Alloy Steel—Typically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They offer minimal corrosion resistance, so they're best for dry environments.

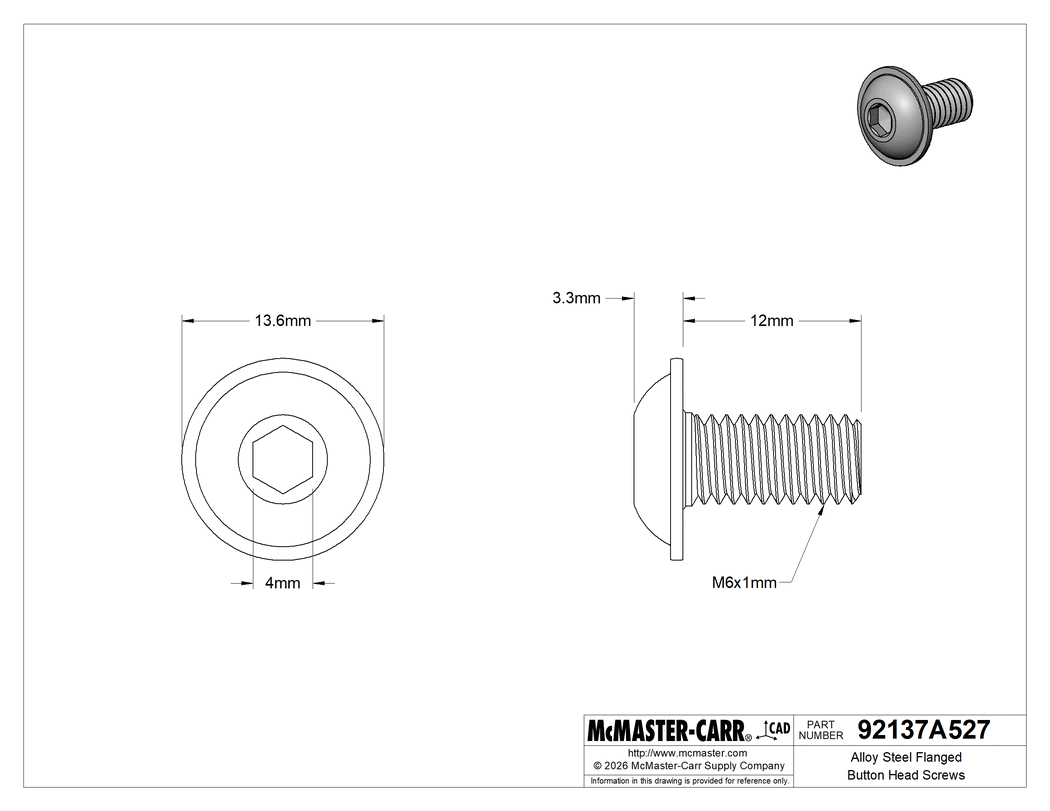

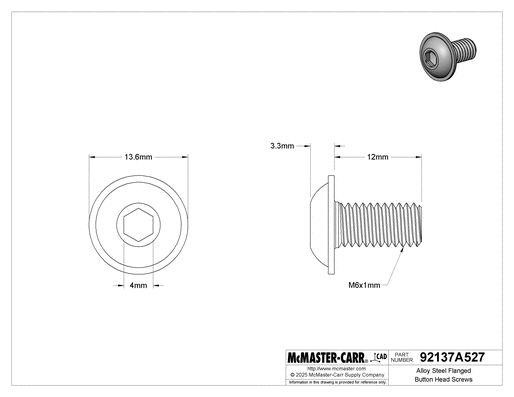

The information in this 3-D model is provided for reference only.
