    Sealing Stainless Steel Tamper-Resistant Button Head Torx Screws

    with Buna-N Rubber O-Ring, M3 x 0.5 mm Thread, 6 mm Long

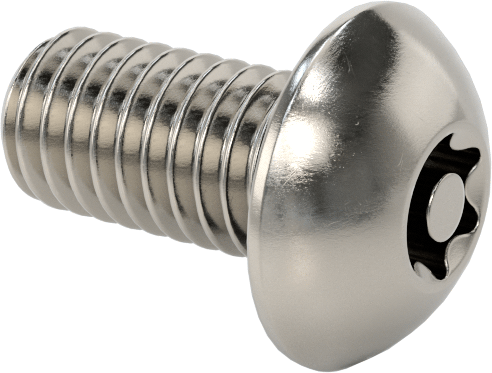

    Image of Product. Front orientation. Sealing Stainless Steel Tamper-Resistant Button Head Torx Screws, with Buna-N Rubber O-Ring, M3 x 0.5 mm Thread, 6 mm Long.

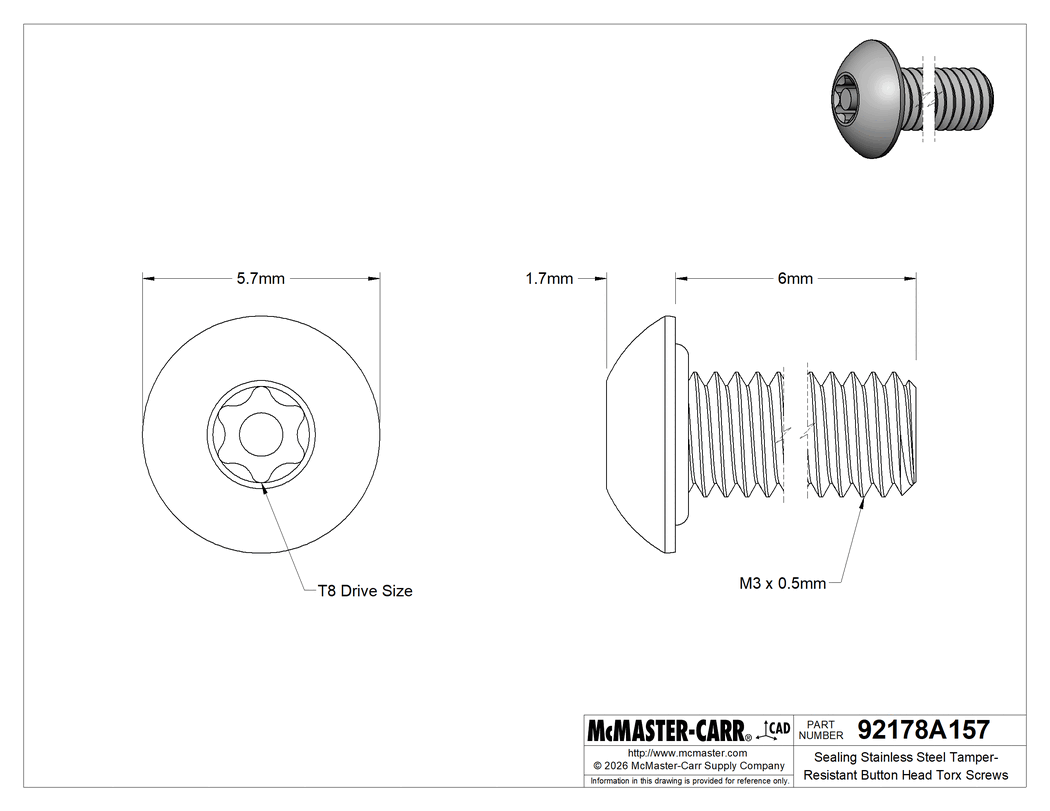

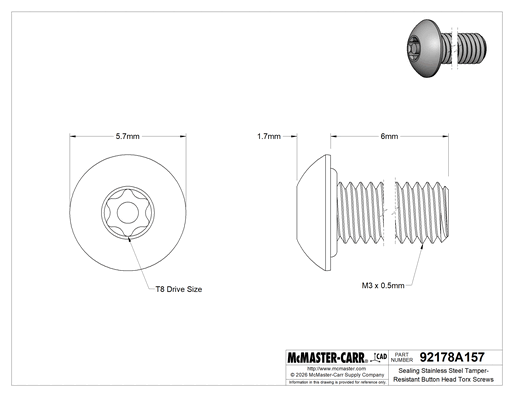

    Technical Drawing of Sealing Stainless Steel Tamper-Resistant Button Head Torx Screws, with Buna-N Rubber O-Ring, M3 x 0.5 mm Thread, 6 mm Long.
    Image of Product. Back orientation. Sealing Stainless Steel Tamper-Resistant Button Head Torx Screws, with Buna-N Rubber O-Ring, M3 x 0.5 mm Thread, 6 mm Long.

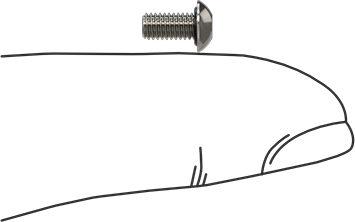

    Image of Product. Side1 orientation. Contains SizingReference. Sealing Stainless Steel Tamper-Resistant Button Head Torx Screws, with Buna-N Rubber O-Ring, M3 x 0.5 mm Thread, 6 mm Long.
    2-D PDF
    000000 per pack of 5
    92178A157
    Delivers tomorrow 7-9 am
    92178A157
    000000 per pack of 5
    Pack of 5
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M3

    Pitch

    0.5 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6g

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Button

    Profile

    Standard

    Height

    1.65 mm

    Diameter

    5.69 mm

    Drive

    Style

    Tamper-Resistant Torx

    Size

    T8

    Material

    18-8 Stainless Steel

    O-Ring

    Material

    Buna-N

    Temperature Range

    -40° F to 225° F

    Length

    6 mm

    Threading

    Fully Threaded

    Tensile Strength

    100,000 psi

    For Maximum Hole Diameter

    3.454 mm

    Maximum Pressure

    1,500 psi

    Specifications Met

    ASTM F879M, ISO 7380

    Application

    Sealing

    Hardness

    Rockwell B96

    Passivation

    Passivated

    Performance

    Corrosion Resistant, Tamper Resistant

    System of Measurement

    Metric

    Country of Origin

    United States

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Related Products

    Restrict unauthorized access while keeping out contaminants and locking in air and fluid. Also known as pin-in Torx, these screws have a security pin in the drive that only turns with a tamper-resistant Torx driver. They also have a rubber O-ring under the head that compresses to form a tight seal as you tighten them. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals. The button head looks similar to a pan head, but it's lower and more compact, taking up less space.

    These screws are reusable as long as the rubber O-ring is intact and undamaged. Length is measured from under the head.

    18-8 Stainless SteelThe choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

    Buna-N O-RingThese seals won't swell or soften when they touch oil, grease, or fuel.

    L-KeysTurn screws by hand for more control and less chance of overtightening compared to power tools.

    Power Tool BitsPair these bits with your power tools to turn screws more quickly than manual tools.
