    Thread-Locking Button Head Hex Drive Screws

    Alloy Steel, 1/4"-20 Thread, 1/2" Long

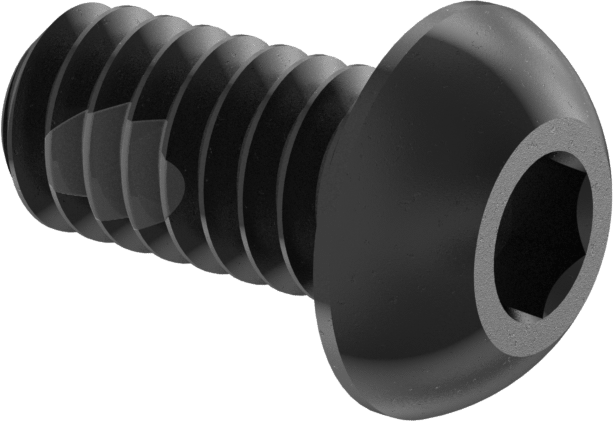

    Image of Product. Front orientation. Thread-Locking Button Head Hex Drive Screws, Alloy Steel, 1/4"-20 Thread, 1/2" Long.

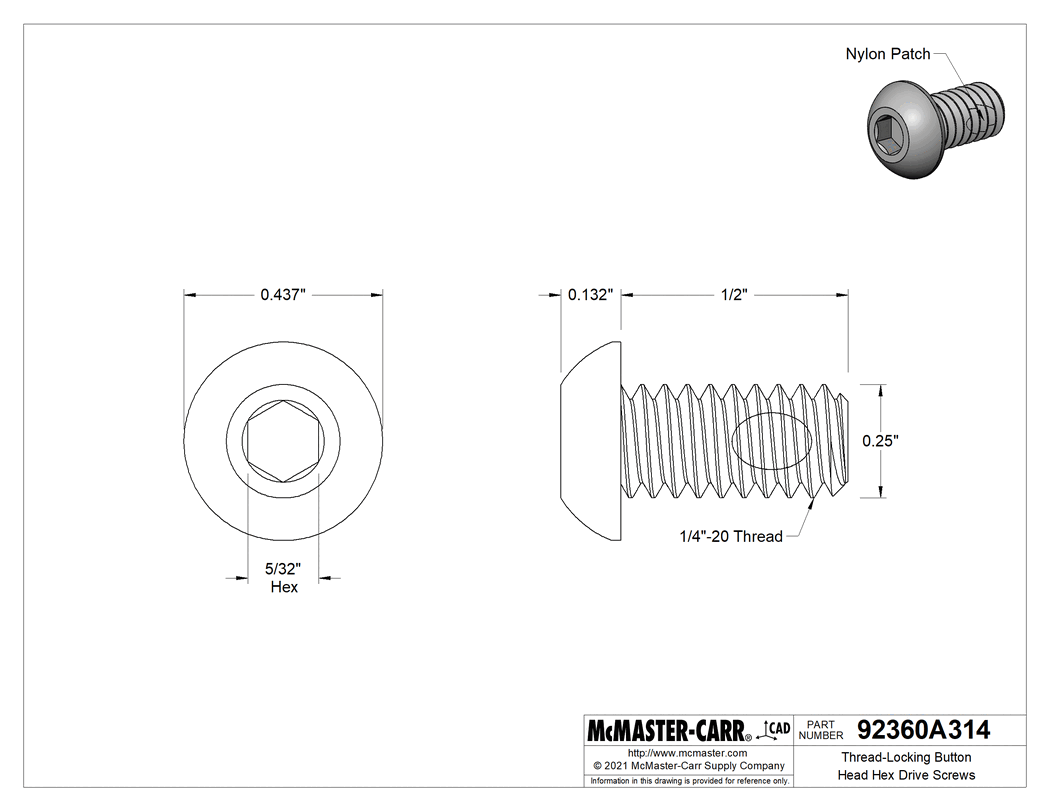

    Technical Drawing of Thread-Locking Button Head Hex Drive Screws, Alloy Steel, 1/4"-20 Thread, 1/2" Long.
    2-D PDF
    00000 per pack of 25
    92360A314
    In stock
    92360A314
    00000 per pack of 25
    Pack of 25
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Locking Type

    Threadlocker

    Thread

    Size

    1/4"-20

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    UNC

    Fit

    Unified Standard Class 3A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Button

    Profile

    Standard

    Height

    0.132"

    Diameter

    0.437"

    Drive

    Style

    Hex

    Size

    5/32"

    Length

    1/2"

    Threading

    Fully Threaded

    Tensile Strength

    120,000 psi

    Threadlocker Type

    Nylon Patch

    Threadlocker Temperature Range

    -70° F to 250° F

    Specifications Met

    ASME B18.3, ASTM F835

    Military Specification

    MIL-DTL-18240

    Certification

    Mil. Spec.

    Hardness

    Rockwell C39

    Material

    Black-Oxide Alloy Steel

    Performance

    High Strength, Vibration Resistant

    Screw Size Decimal Equivalent

    0.250"

    System of Measurement

    Inch

    Country of Origin

    China, India, Taiwan, United States

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Lock parts in place on machinery that experiences mild vibration with these strong and vibration-resistant screws. Made of alloy steel, they have nearly twice the tensile strength of other thread-locking options. With a nylon-patch threadlocker bonded to the threads, they save you the time and mess of adding it yourself. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.

    Length is measured from under the head.

    Black-Oxide Alloy SteelTypically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They offer minimal corrosion resistance, so they're best for dry environments.

    Military SpecificationThese screws are manufactured and tested to meet strict U.S. military standards for material and construction.

    The information in this 3-D model is provided for reference only.
