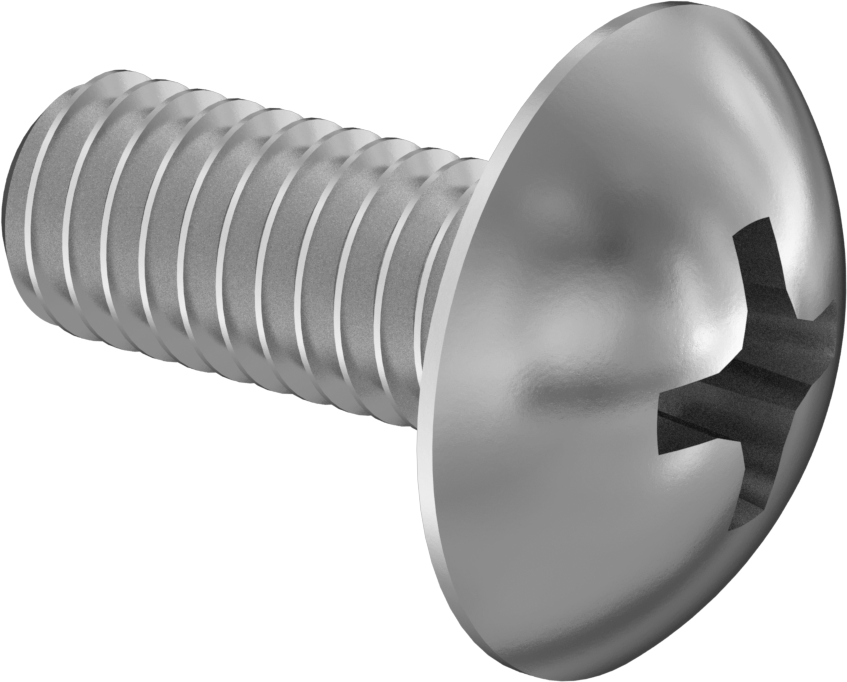

18-8 Stainless Steel Extra-Wide Truss Head Phillips Screws
M4 x 0.7 mm Thread, 10 mm Long
Thread | |
Size | M4 |
Pitch | 0.7 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Truss |
Profile | Wide |
Height | 2.59 mm |
Diameter | 9.75 mm |
Drive | |
Style | Phillips |
Size | No. 2 |
Material | 18-8 Stainless Steel |
Length | 10 mm |
Threading | Fully Threaded |
Tensile Strength | 100,000 psi |
Hardness | Not Rated |
Passivation | Passivated |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most corrosion-resistant truss head Phillips screws. Their wide head spreads out pressure without adding a washer and reduces the risk of crushing thin material, such as sheet metal. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

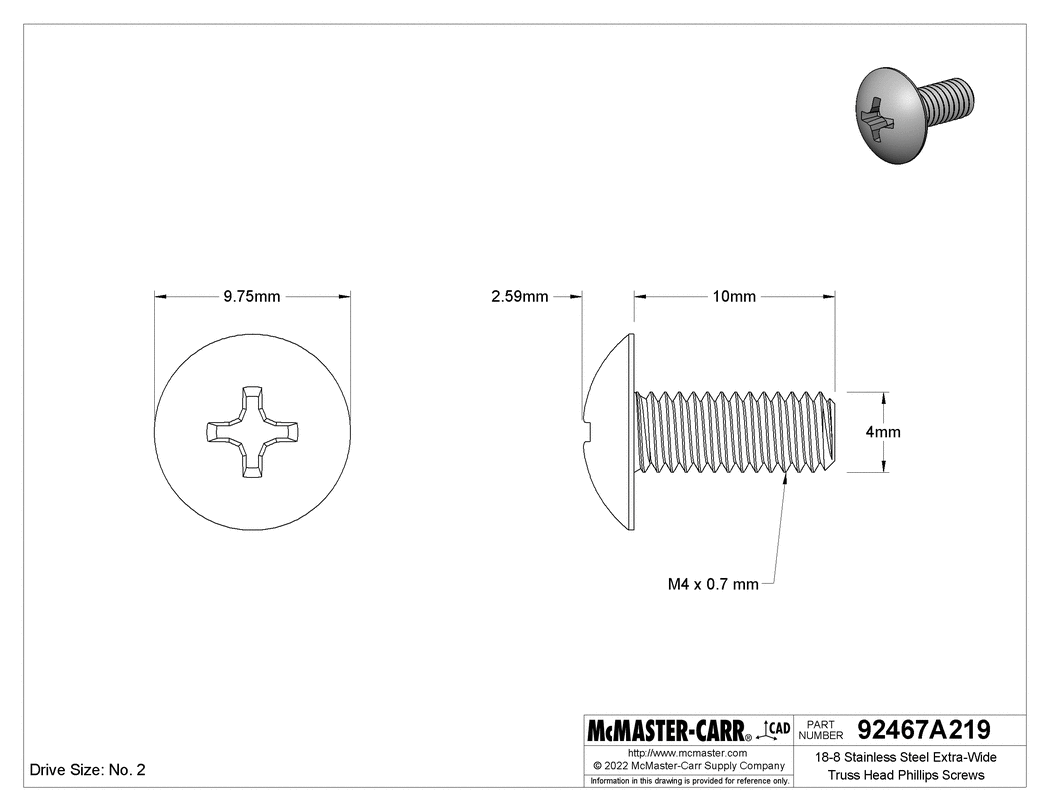

The information in this 3-D model is provided for reference only.
