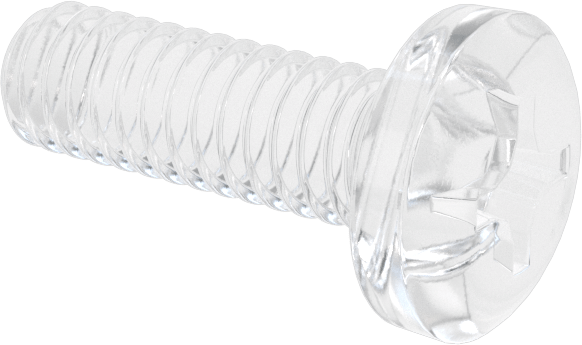

Impact-Resistant Polycarbonate Screws
Pan Head Phillips, 1/4"-20 Thread Size, 3/4" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.18" |
Diameter | 0.505" |
Drive | |
Style | Phillips |
Size | No. 3 |
Length | 3/4" |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Color | Clear |
Temperature Range | -40° F to 210° F |
Clarity | Clear |
Hardness | Not Rated |
Material | Polycarbonate |
Performance | Clear, Impact Resistant |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Our most common plastic pan head screws, these are often used to attach panels and covers to electronics and automated equipment. They're lightweight and nonconductive. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
Clear Impact-Resistant Polycarbonate—Our most impact-resistant plastic rounded head screws. These absorb bumps and vibration without cracking or breaking.

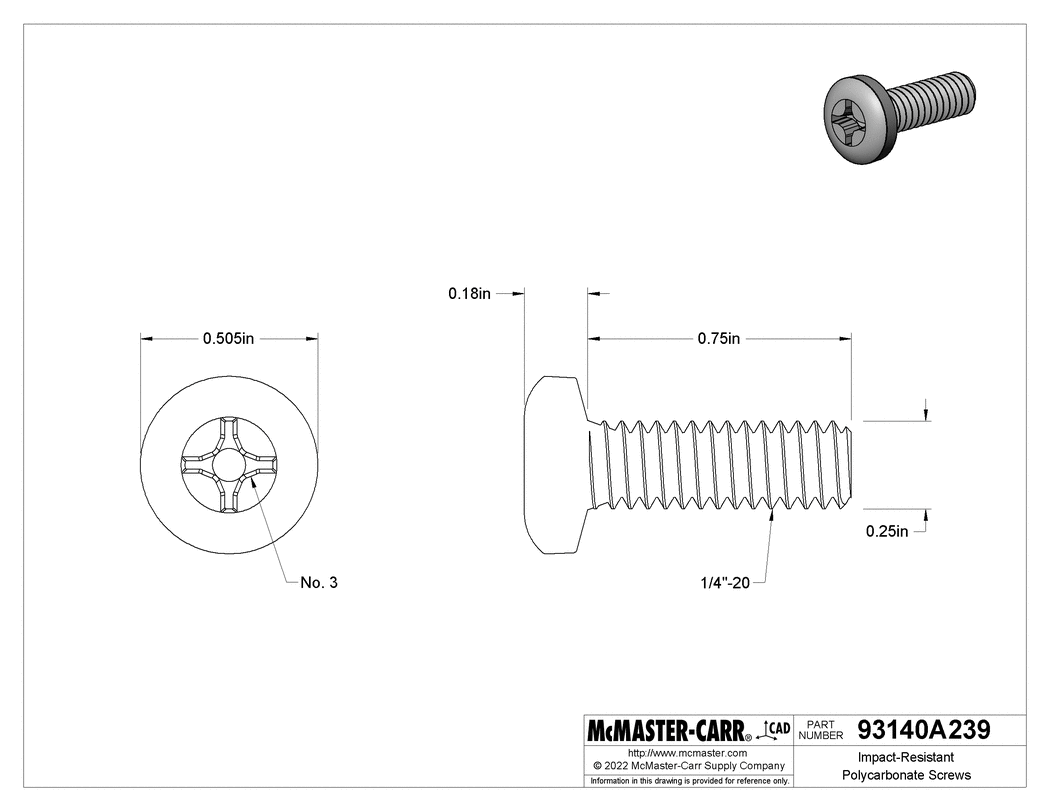

The information in this 3-D model is provided for reference only.
