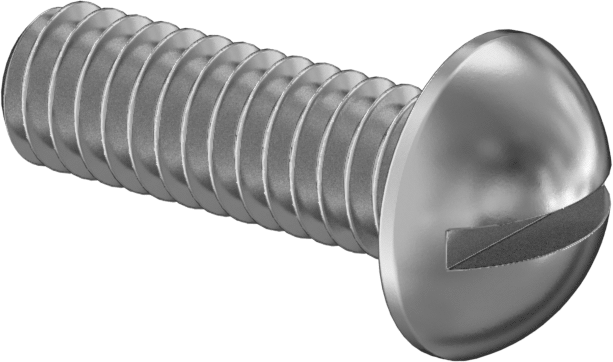

Aluminum Decorative Round Head Slotted Screws
8-32 Thread Size, 1/2" Long
Thread | |
Size | 8-32 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Round |
Profile | Standard |
Height | 0.12" |
Diameter | 0.309" |
Drive Style | Slotted |
Material | 2024 Aluminum |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B70 |
Performance | Conductive, Corrosion Resistant, High Strength, Lightweight, Nonmagnetic |
Screw Size Decimal Equivalent | 0.164" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 761610.6000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our lightest metal round head screws. One-third the weight of steel, these screws are a good choice for applications with weight limitations. Like stainless steel, the aluminum also resists rust, but it's not as strong. The round head has a domed profile that gives a smooth, decorative look to brackets and architectural features. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.
2024 Aluminum—These lightweight screws have a high strength-to-weight ratio and offer good corrosion resistance.

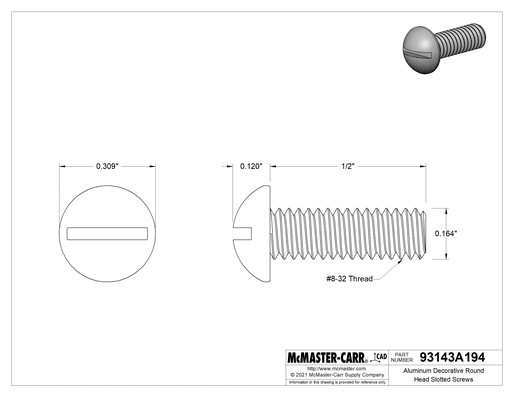

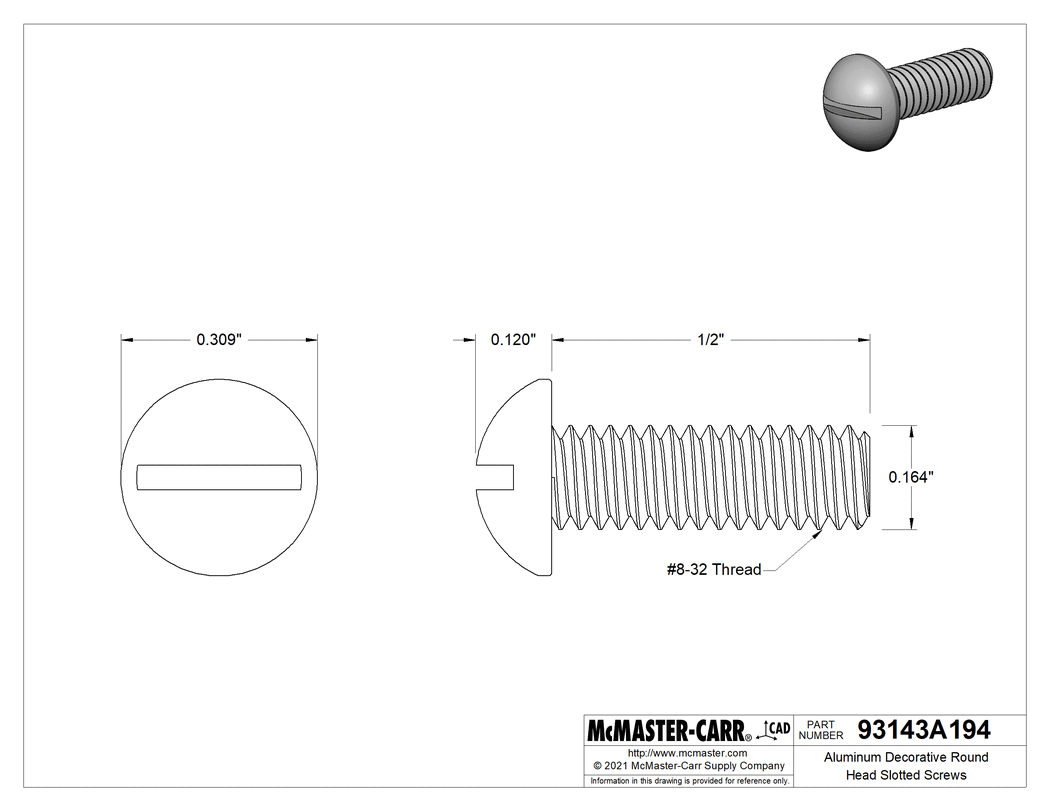

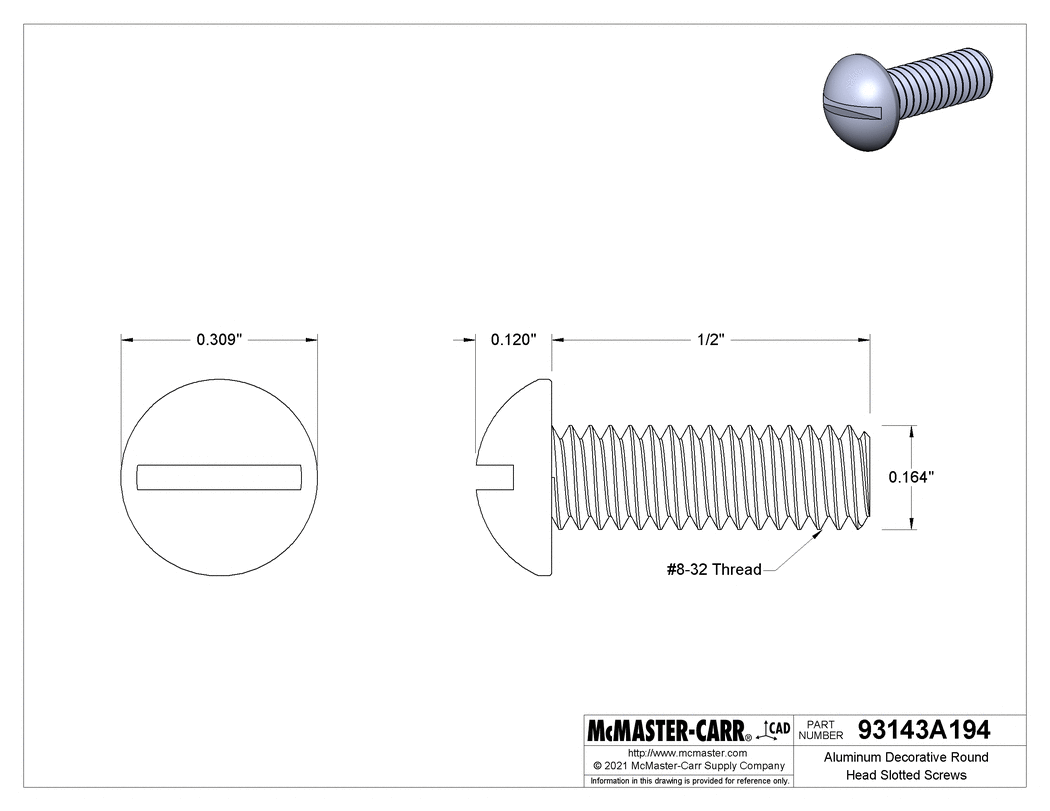

The information in this 3-D model is provided for reference only.
