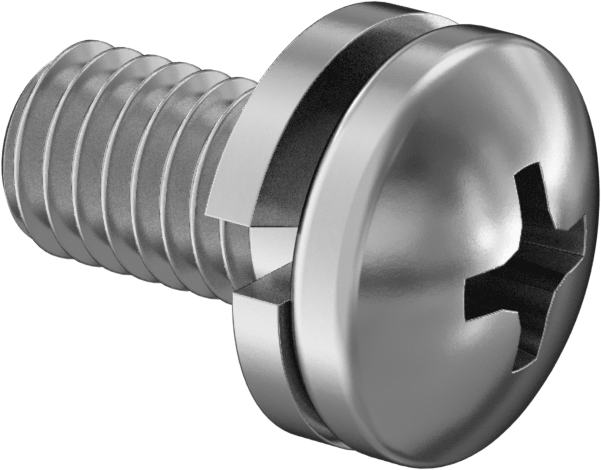

Steel Pan Head Screws with Split Lock Washer
10-32 Thread Size, 3/8" Long
Locking Type | Lock Washer |
Thread | |
Size | 10-32 |
Direction | Right Hand |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.133" |
Diameter | 0.373" |
Drive | |
Style | Phillips |
Size | No. 2 |
Washer | |
Type | Split |
Material | Zinc-Plated Steel |
OD | 0.373" |
Thickness | 0.047" |
Length | 3/8" |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | ASME B18.13 |
Hardness | Rockwell B70 |
Material | Zinc-Plated Steel |
Performance | Vibration Resistant |
Screw Size Decimal Equivalent | 0.190" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Stop screws from loosening due to light vibration. These screws have a washer with uneven ends that bite into the screw head and the mating surface as you tighten them. While they're not as vibration resistant as tooth lock washers, they're a good choice for electrical panels, light fixtures, and other light duty assemblies. Also known as Sems screws, the washer rotates freely but is permanently attached. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

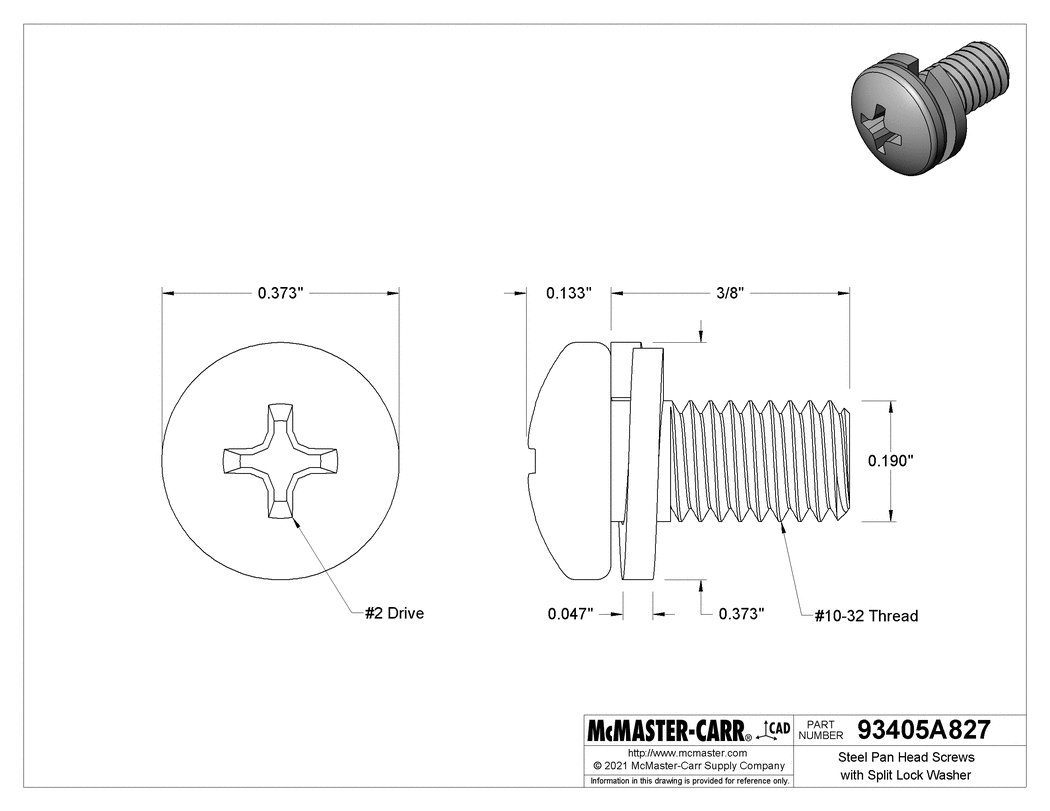

The information in this 3-D model is provided for reference only.
