Sealing Pan Head Screws

M3 x 0.5 mm Thread, 8 mm Long

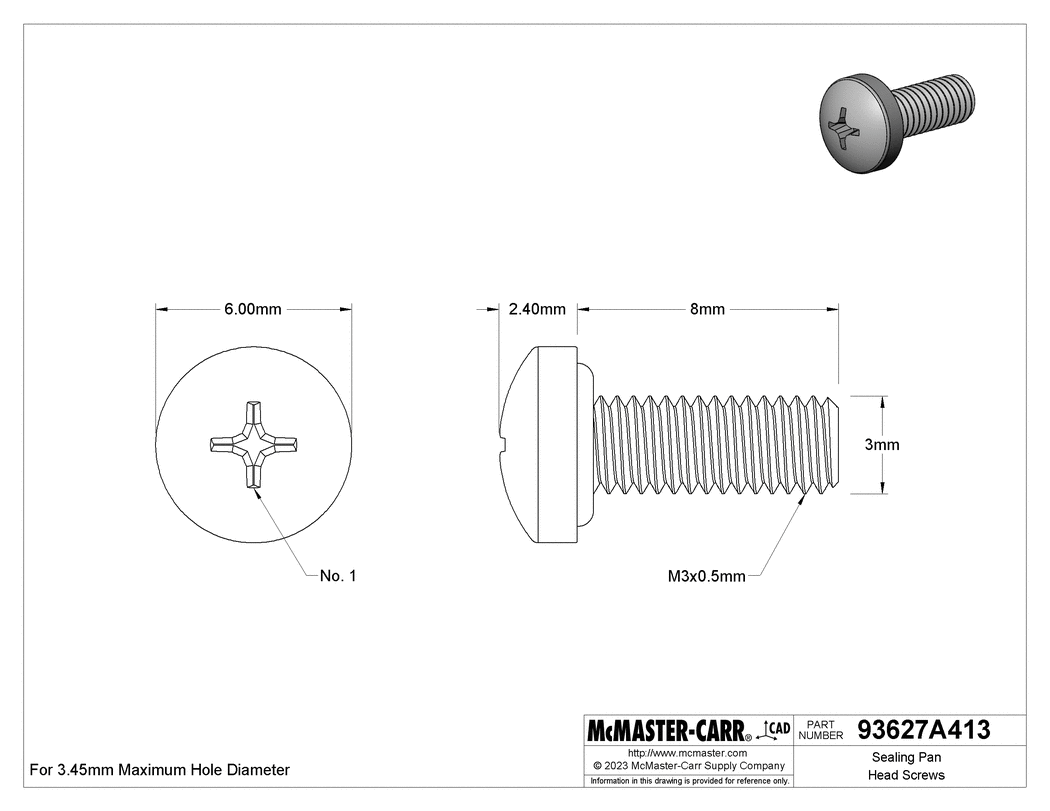

Technical Drawing of Sealing Pan Head Screws, M3 x 0.5 mm Thread, 8 mm Long.

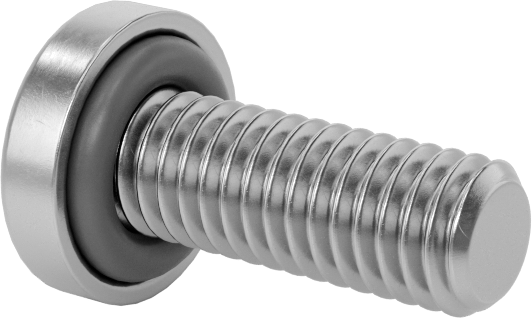

Image of Product. Front orientation. Sealing Pan Head Screws, M3 x 0.5 mm Thread, 8 mm Long.

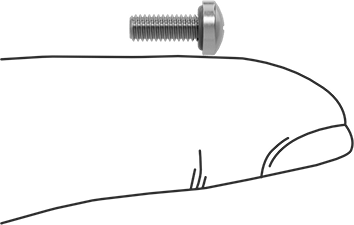

Image of Product. Side1 orientation. Contains SizingReference. Sealing Pan Head Screws, M3 x 0.5 mm Thread, 8 mm Long.

2-D PDF

00000 per pack of 10

93627A413

In stock

93627A413

00000 per pack of 10

QuantityPack of 10

In stock

Select a compatible file type: Parasolid

Solidworks 2022 and Parasolid files now available

Solidworks 2022, PDF, and DWG files now available

Parasolid files now available

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread
Size	M3
Pitch	0.5 mm
Direction	Right Hand
Spacing	Coarse
Type	Metric
Fit	Metric Class 6g
Tip Type	Flat
Fastener Head Type	Rounded
Head
Style	Pan
Profile	Standard
Height	2.4 mm
Diameter	6 mm
Drive
Style	Phillips
Size	No. 1
O-Ring
Material	Silicone Rubber
Temperature Range	-80° F to 400° F
Length	8 mm
Threading	Fully Threaded
Tensile Strength	70,000 psi
For Maximum Hole Diameter	3.45 mm
Maximum Pressure	1,500 psi
Specifications Met	DIN 7985
Application	Sealing
Hardness	Not Rated
Material	18-8 Stainless Steel
Passivation	Passivated
Performance	Corrosion Resistant
System of Measurement	Metric
Country of Origin	United States
DFARS Compliance	Specialty Metals Compliant (252.225-7009)
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Keep out dust and contaminants while locking in air and fluid. These pan head screws have a rubber O-ring under the head that compresses to form a tight seal as you tighten them. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals. The Phillips drive aligns easily with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

These screws are reusable as long as the rubber O-ring is intact and undamaged. Length is measured from under the head.

18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

Silicone Rubber O-Ring—Tolerate a wider range of temperatures than Buna-N and fluoroelastomer seals without becoming brittle. However, these seals degrade when exposed to oil, grease, and fuel.

Compatible Products for This Rounded Head Screw
