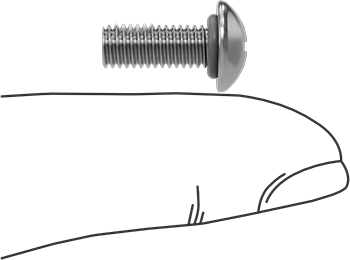

Vibration-Resistant Sealing Rounded Head Screws
10-32 Thread Size, 1/2" Long
Locking Type | Threadlocker |
Thread | |
Size | 10-32 |
Direction | Right Hand |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.133" |
Diameter | 0.403" |
Drive | |
Style | Phillips |
Size | No. 2 |
O-Ring | |
Material | Silicone Rubber |
Temperature Range | -80° F to 400° F |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Threadlocker Type | Nylon Patch |
For Maximum Hole Diameter | 0.200" |
Maximum Pressure | 1,500 psi |
Threadlocker Temperature Range | -40° F to 225° F |
Specifications Met | NASM3212, NASM82496 |
Military Specification | MIL-DTL-18240, MS3212-33L |
Application | Sealing |
Certification | Mil. Spec. |
Hardness | Not Rated |
Material | 18-8 Stainless Steel |
Passivation | Passivated |
Performance | Corrosion Resistant, Vibration Resistant |
Screw Size Decimal Equivalent | 0.190" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

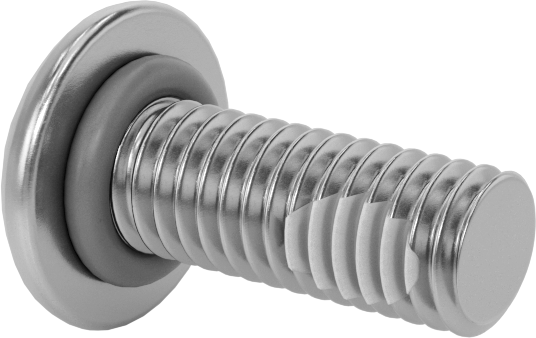

Keep parts from coming loose on machinery with mild vibration while keeping out contaminants and locking in air and fluid. These pan head screws have a rubber O-ring under the head that compresses to form a tight seal as you tighten them. With a nylon-patch threadlocker bonded to the threads, these screws save you the time and mess of adding it yourself. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals. The Phillips drive aligns easily with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
Silicone Rubber O-Ring—Silicone rubber maintains its integrity when exposed to water and some chemicals, such as ammonium hydroxide. However, these seals degrade when exposed to oil, grease, and fuel.
Military Specification—These screws are manufactured and tested to meet strict U.S. military standards for material and construction.

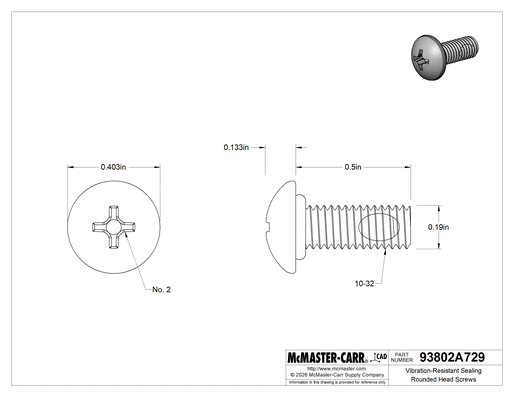

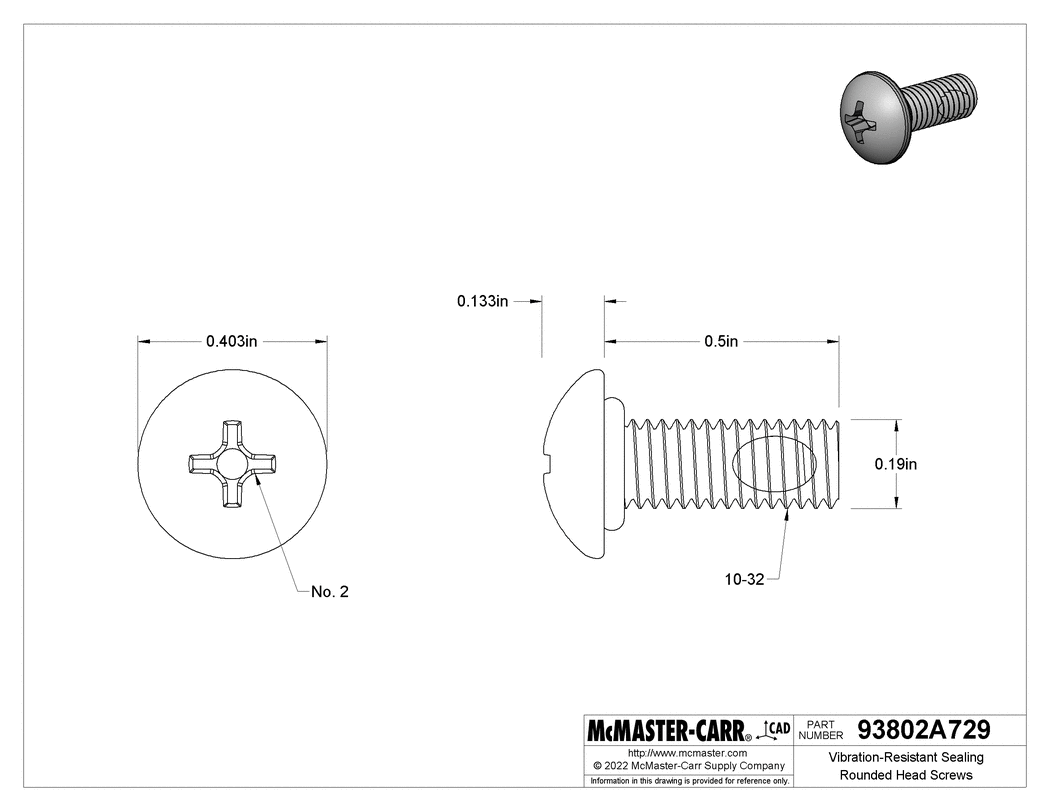

The information in this 3-D model is provided for reference only.
