    316 Stainless Steel Pan Head Slotted Screws

    M4 x 0.70mm Thread, 6mm Length

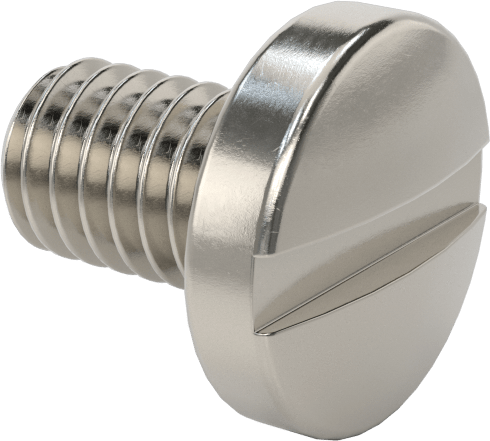

    Image of Product. Front orientation. 316 Stainless Steel Pan Head Slotted Screws, M4 x 0.70mm Thread, 6mm Length.

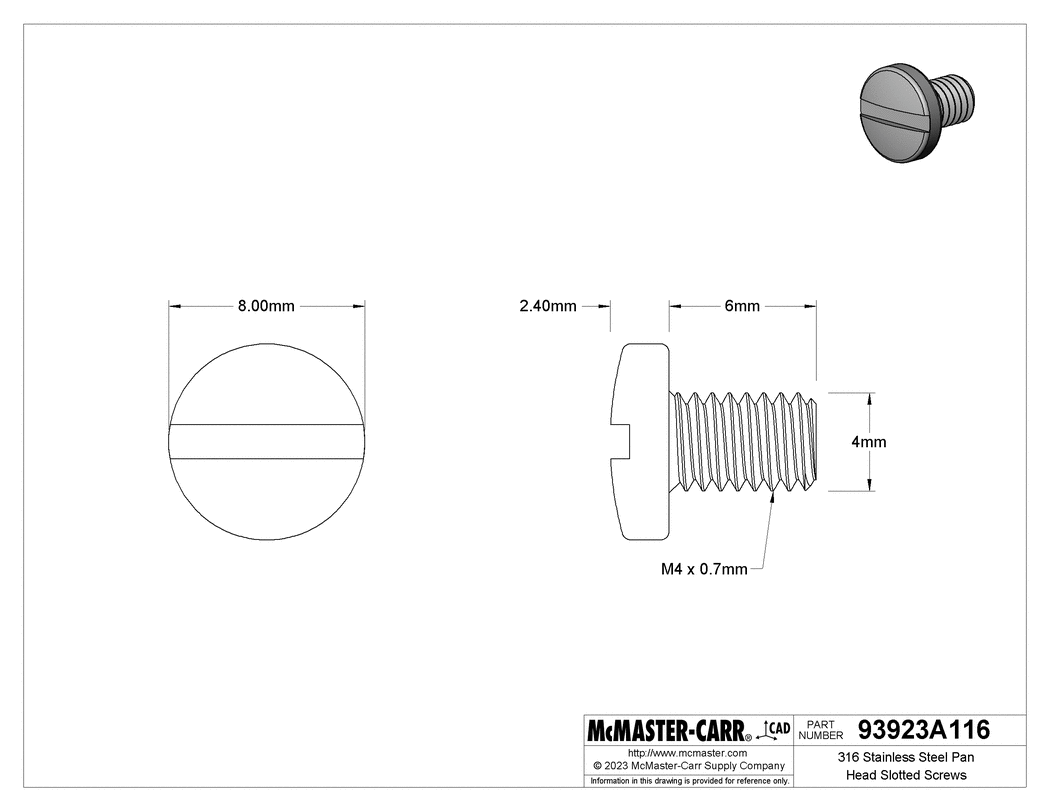

    Technical Drawing of 316 Stainless Steel Pan Head Slotted Screws, M4 x 0.70mm Thread, 6mm Length.
    Image of Product. Back orientation. 316 Stainless Steel Pan Head Slotted Screws, M4 x 0.70mm Thread, 6mm Length.

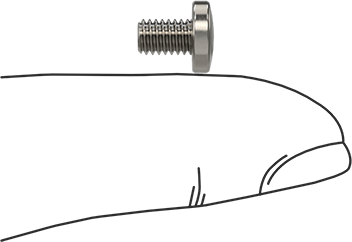

    Image of Product. Side1 orientation. Contains SizingReference. 316 Stainless Steel Pan Head Slotted Screws, M4 x 0.70mm Thread, 6mm Length.
    2-D PDF
    000000 per pack of 50
    93923A116
    Delivers tomorrow 7-9 am
    93923A116
    000000 per pack of 50
    Pack of 50
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M4

    Pitch

    0.7 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6g

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Pan

    Profile

    Standard

    Height

    2.4 mm

    Diameter

    8 mm

    Drive Style

    Slotted

    Material

    316 Stainless Steel

    Length

    6 mm

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Specifications Met

    DIN 85, ISO 1580

    Hardness

    Rockwell B80

    Passivation

    Passivated

    Performance

    Chemical Resistant, Highly Corrosion Resistant

    System of Measurement

    Metric

    Country of Origin

    Germany, Italy, Philippines, Taiwan, Thailand

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    The most corrosion-resistant pan head slotted screws we offer. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.

    Length is measured from under the head.

    Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.
