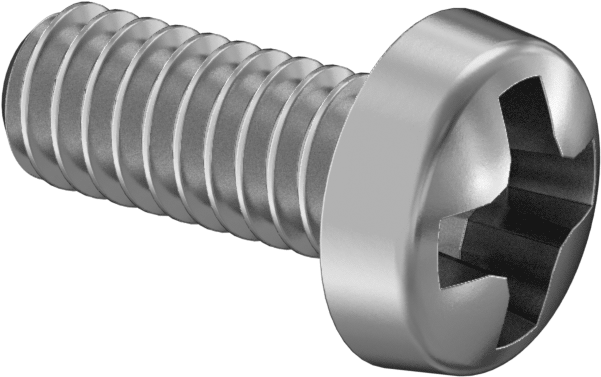

Narrow Cheese Head Phillips Screws

M2 x 0.4mm Thread, 5mm Long

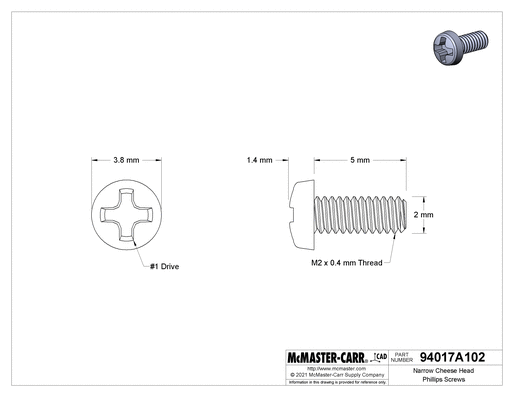

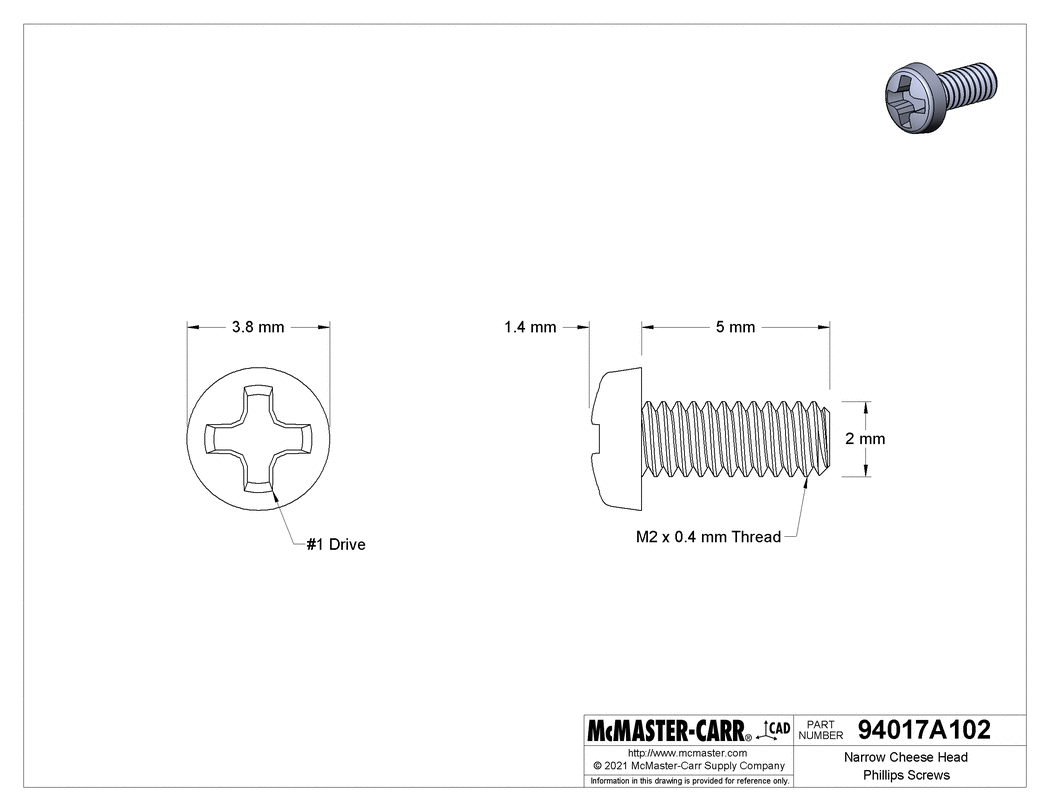

Technical Drawing of Narrow Cheese Head Phillips Screws, M2 x 0.4mm Thread, 5mm Long.

2-D PDF

000000 per pack of 50

94017A102

In stock

94017A102

000000 per pack of 50

QuantityPack of 50

In stock

Select a compatible file type: Parasolid

Solidworks 2022 and Parasolid files now available

Solidworks 2022, PDF, and DWG files now available

Parasolid files now available

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread
Size	M2
Pitch	0.4 mm
Direction	Right Hand
Spacing	Coarse
Type	Metric
Fit	Metric Class 6g
Tip Type	Flat
Fastener Head Type	Rounded
Head
Style	Cheese
Profile	Narrow
Height	1.4 mm
Diameter	3.8 mm
Drive
Style	Phillips
Size	No. 1
Length	5 mm
Threading	Fully Threaded
Tensile Strength	100,000 psi
Specifications Met	ISO 7048
Hardness	Not Rated
Material	18-8 Stainless Steel
Passivation	Passivated
Performance	Corrosion Resistant
System of Measurement	Metric
Country of Origin	Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

Our most corrosion-resistant cheese head Phillips screws. They have a narrow profile, so they sneak past flanges and raised surfaces without snagging. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

Length is measured from under the head.

18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
