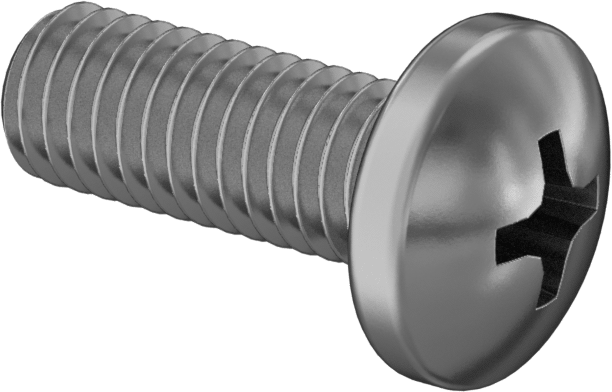

Brass Pan Head Phillips Screws
10-32 Thread Size, 1/2" Long
Thread | |
Size | 10-32 |
Direction | Right Hand |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.133" |
Diameter | 0.373" |
Drive | |
Style | Phillips |
Size | No. 2 |
Material | Brass |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 50,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B40 |
Performance | Conductive, Corrosion Resistant, Nonmagnetic |
Screw Size Decimal Equivalent | 0.190" |
System of Measurement | Inch |
Country of Origin | China, India, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 741533.8550 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These pan head Phillips screws have a shiny look and won't rust in damp environments. Made of brass, they're also conductive and nonmagnetic, making them useful for electrical applications. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.

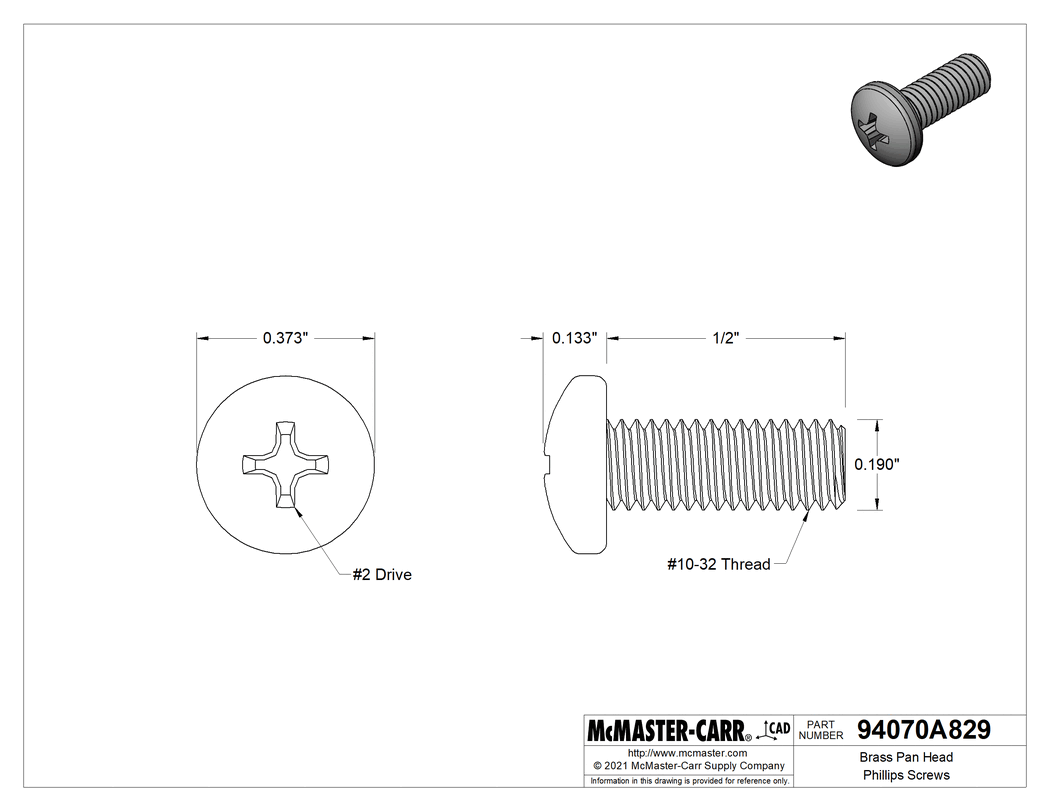

The information in this 3-D model is provided for reference only.
