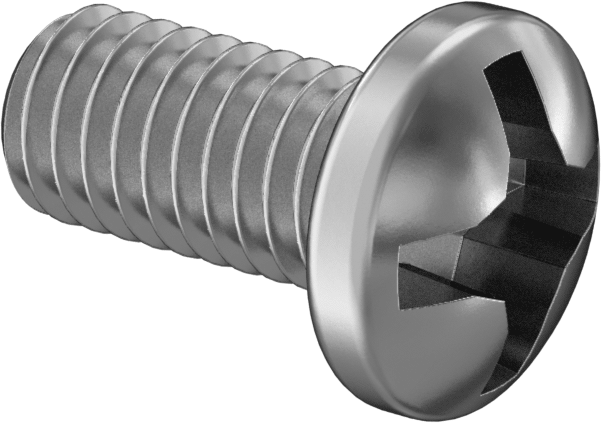

JIS Stainless Steel Pan Head Screws
M3 x 0.5 mm Thread, 6 mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 2 mm |
Diameter | 5.5 mm |
Drive | |
Style | JIS |
Size | No. 2 |
Material | 18-8 Stainless Steel |
Length | 6 mm |
Threading | Fully Threaded |
Tensile Strength | 50,000 psi |
JIS Specification | JIS B 1111 |
Hardness | Not Rated |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | China |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most corrosion-resistant rounded head screws that are made to Japanese Industrial Standards. Similar in appearance to Phillips, the JIS drive has a shallower opening with sharper angles and straighter internal walls. This lets them withstand more torque while preventing the driver from slipping and damaging the drive. Tighten them only with a JIS driver to avoid stripping the screw. Some JIS screws are marked with a dot near the drive for quick identification. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.

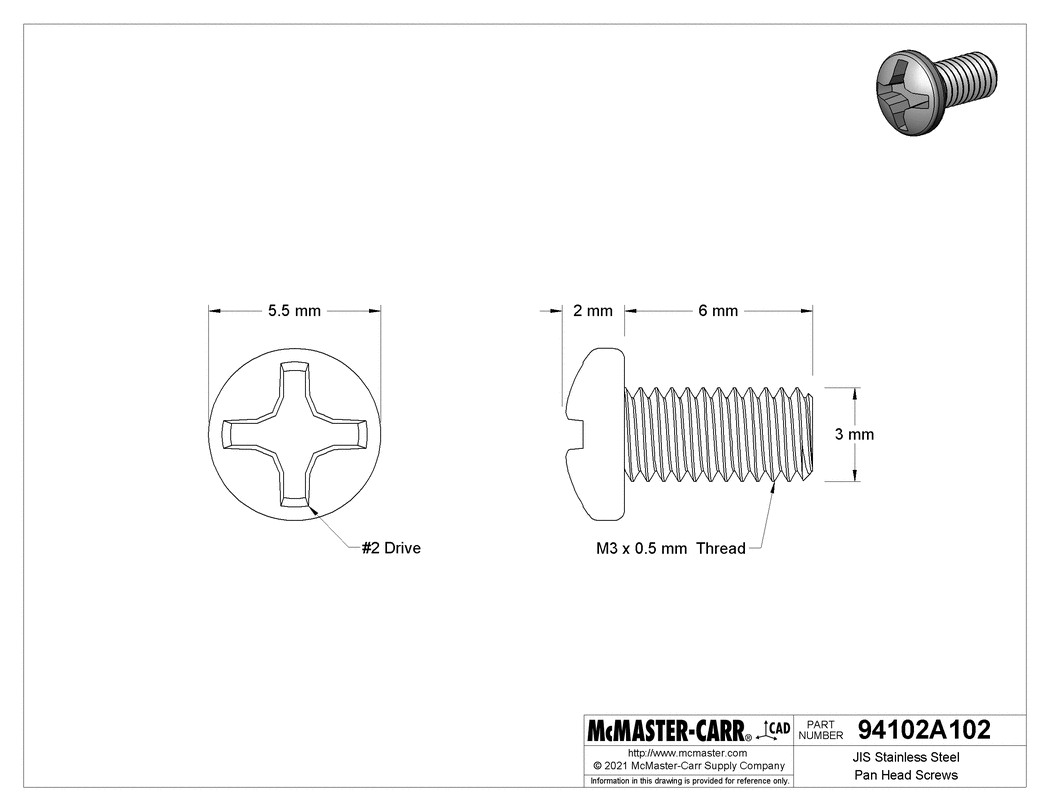

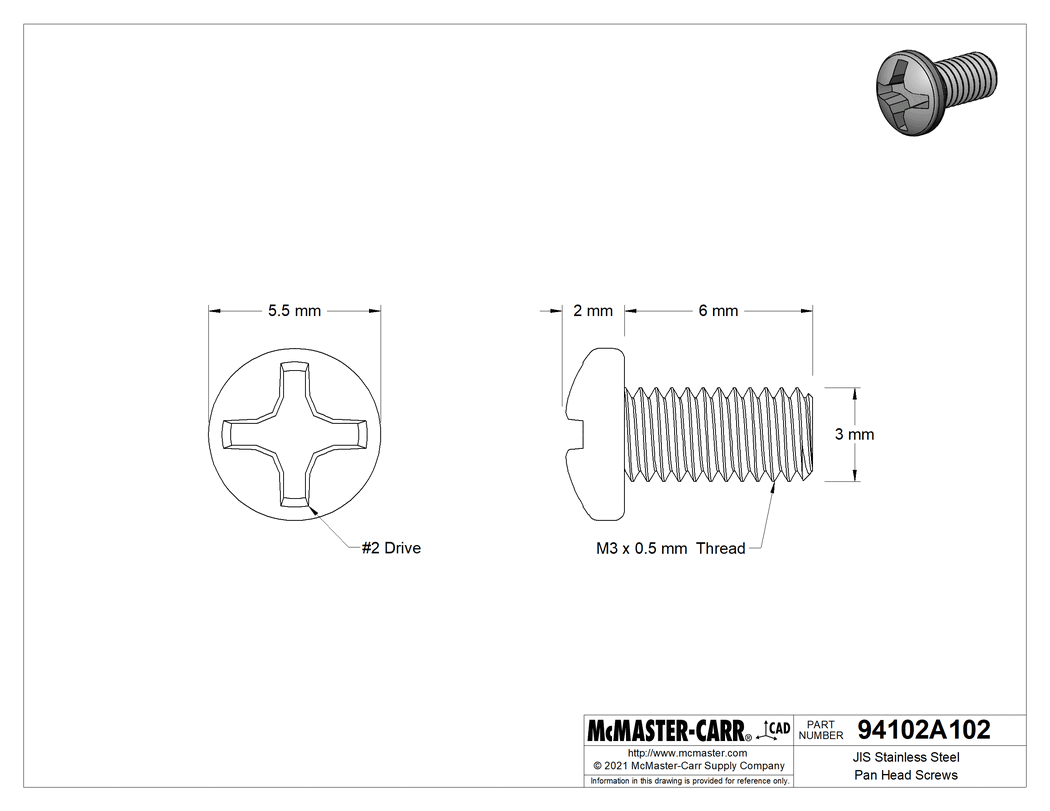

Length is measured from the top of the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
The information in this 3-D model is provided for reference only.
