    Aluminum Ultra-Wide Flanged Button Head Screws

    M6 x 1 mm Thread Size, 20 mm Long

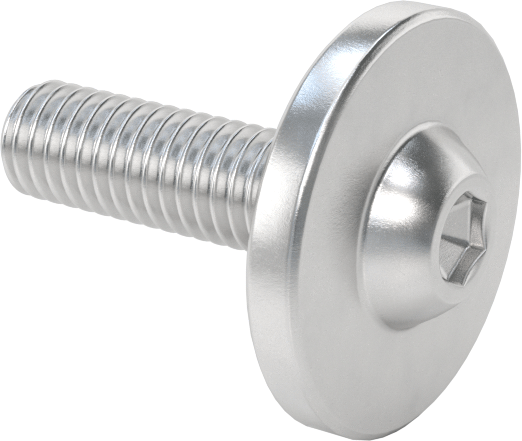

    Image of Product. Front orientation. Aluminum Ultra-Wide Flanged Button Head Screws, M6 x 1 mm Thread Size, 20 mm Long.

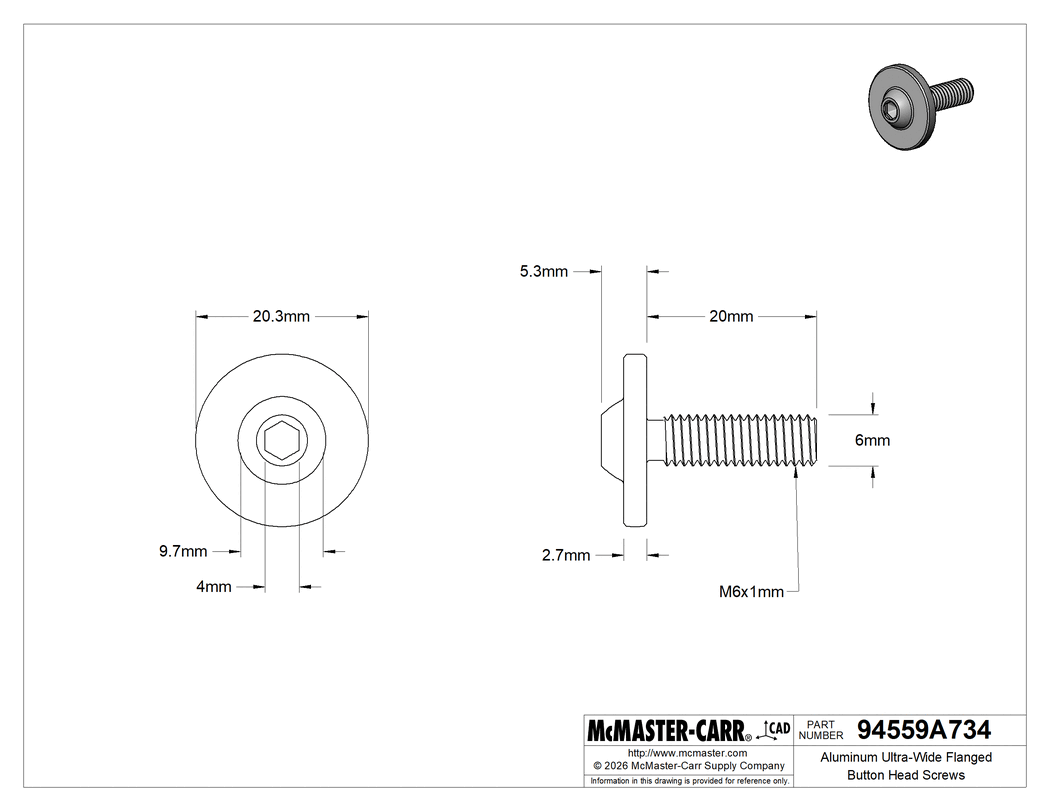

    Technical Drawing of Aluminum Ultra-Wide Flanged Button Head Screws, M6 x 1 mm Thread Size, 20 mm Long.
    Image of Product. Back orientation. Aluminum Ultra-Wide Flanged Button Head Screws, M6 x 1 mm Thread Size, 20 mm Long.

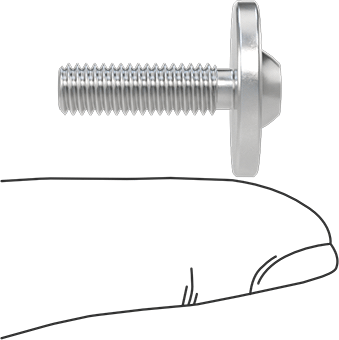

    Image of Product. Side1 orientation. Contains SizingReference. Aluminum Ultra-Wide Flanged Button Head Screws, M6 x 1 mm Thread Size, 20 mm Long.
    2-D PDF
    00000 each
    94559A734
    In stock
    94559A734
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M6

    Pitch

    1 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6g

    Tip Type

    Flat

    Size Designation

    Oversized

    Fastener Head Type

    Flanged, Rounded

    Head

    Style

    Button

    Profile

    Wide

    Height

    5.3 mm

    Diameter

    9.7 mm

    Drive

    Style

    Hex

    Size

    4 mm

    Length

    20 mm

    Flange Diameter

    20.3 mm

    Threading

    Fully Threaded

    Tensile Strength

    40,000 psi

    Flange Thickness

    2.7 mm

    Hardness

    Rockwell B40

    Material

    6061 Aluminum

    Performance

    Conductive, Corrosion Resistant, Lightweight, Nonmagnetic

    System of Measurement

    Metric

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(b)-II

    Schedule B Number

    761610.6000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    One-third the weight of steel, these are the lightest flanged screws we offer. They have an oversized flange that spreads pressure over a large area to protect thin material without needing a washer. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.

    Length is measured from under the head.

    6061 Aluminum—With a high strength-to-weight ratio, these lightweight screws offer good corrosion resistance.

    Compatible Products for This Rounded Head Screw
    Fasten

    Hex Nuts

    1 product

    Spacers

    5 products

    Adhere

    Threadlockers

    2 products

    The information in this 3-D model is provided for reference only.
