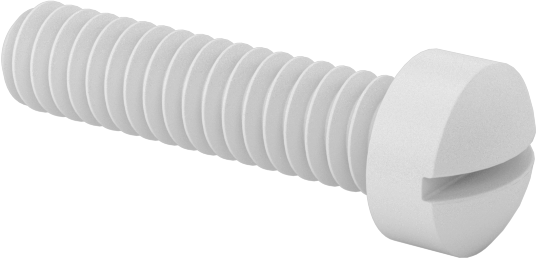

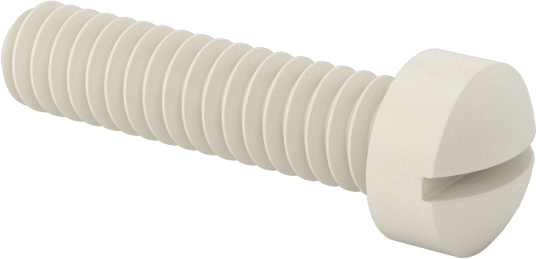

Narrow Fillister Head Slotted Screws
Plastic, High-Profile, 0-80 Thread, 1/4" Long
Thread | |
Size | 0-80 |
Direction | Right Hand |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Fillister |
Profile | High, Narrow |
Height | 0.055" |
Diameter | 0.096" |
Drive Style | Slotted |
Length | 1/4" |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Temperature Range | -40° F to 185° F |
Hardness | Not Rated |
Material | Nylon |
Screw Size Decimal Equivalent | 0.060" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Combine the lightweight and nonconductive properties of plastic with the tall, narrow head of these fillister screws. Since they have a deeper drive than other screws, slotted drivers are less likely to slip. These screws often secure panels to electronics deep inside machinery and in other applications where screws are hard to reach.
Length is measured from under the head.
Nylon—The most common plastic rounded head screws, these are good for general purpose fastening. Slippery and abrasion resistant, they thread in smoothly and stand up to daily wear and tear. Nylon will swell and weaken when exposed to moisture, so these screws are best for dry environments.

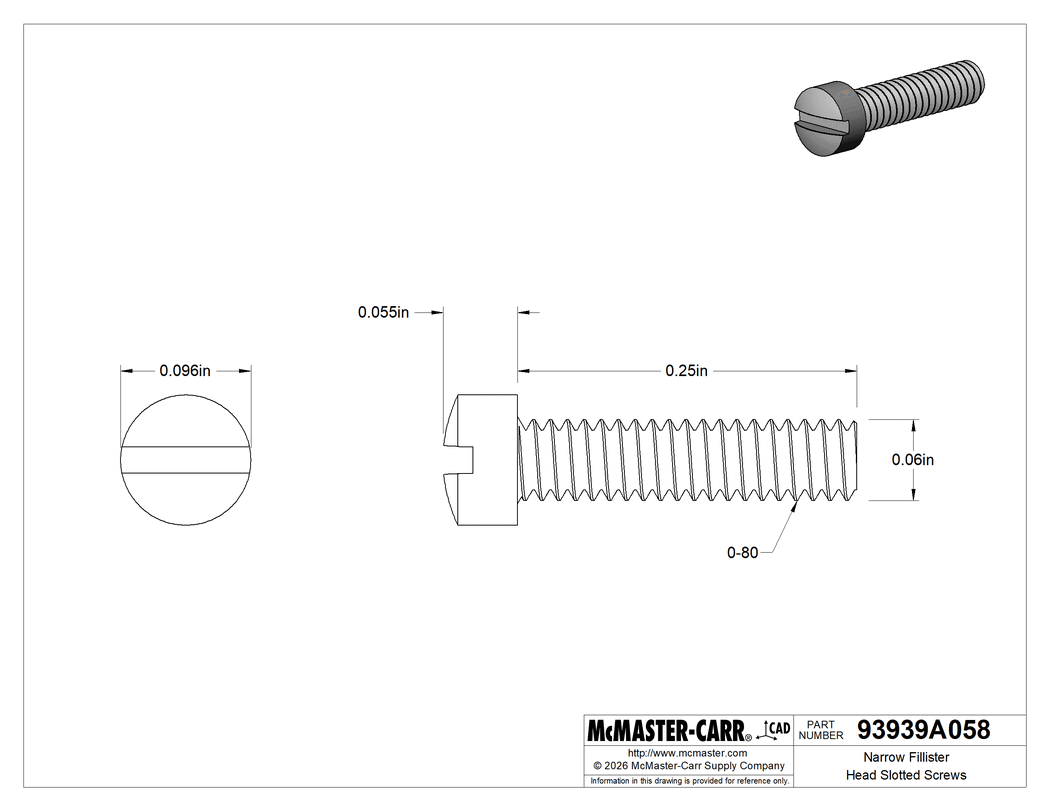

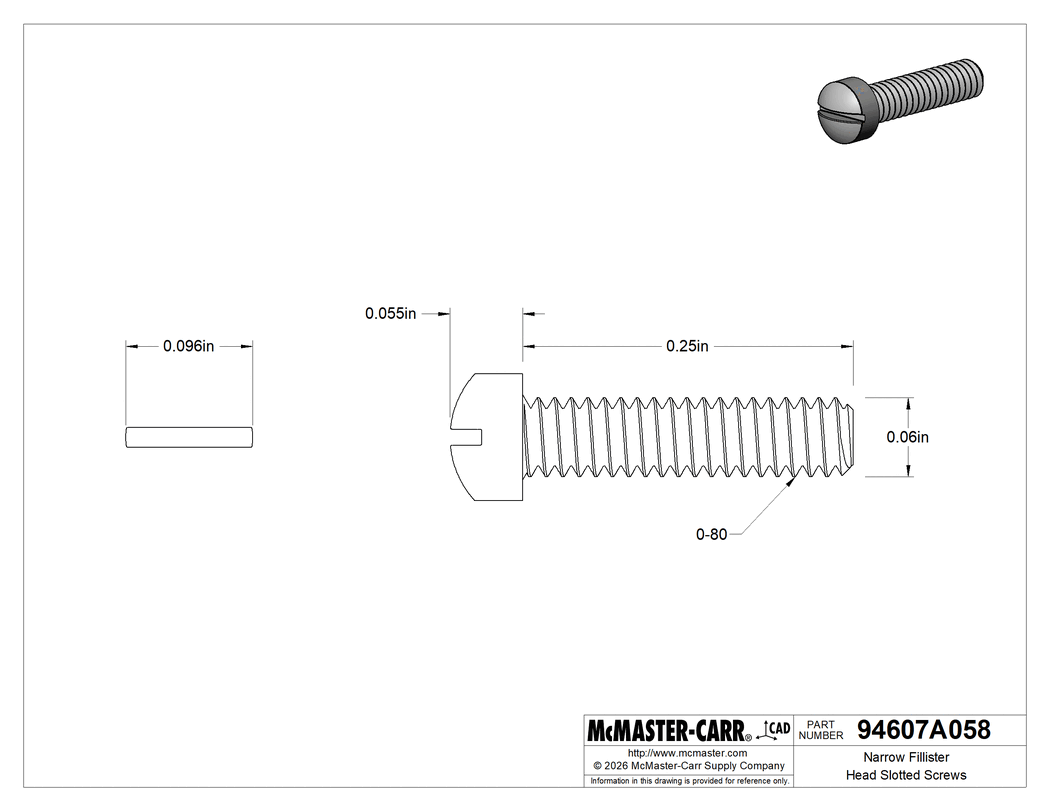

The information in this 3-D model is provided for reference only.
