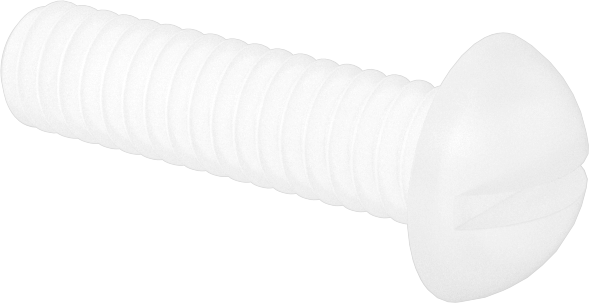

Nylon Decorative Round Head Slotted Screws
1/4"-20 Thread, 1" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Round |
Profile | Standard |
Height | 0.175" |
Diameter | 0.472" |
Drive Style | Slotted |
Material | Nylon |
Length | 1" |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Temperature Range | -40° F to 185° F |
Hardness | Not Rated |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Create a finished appearance on panels and covers with the smooth, domed head. Made of plastic, they're lightweight and nonconductive. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.
Nylon—The most common plastic rounded head screws, these are good for general purpose fastening. Slippery and abrasion resistant, they thread in smoothly and stand up to daily wear and tear. Nylon will swell and weaken when exposed to moisture, so these screws are best for dry environments.

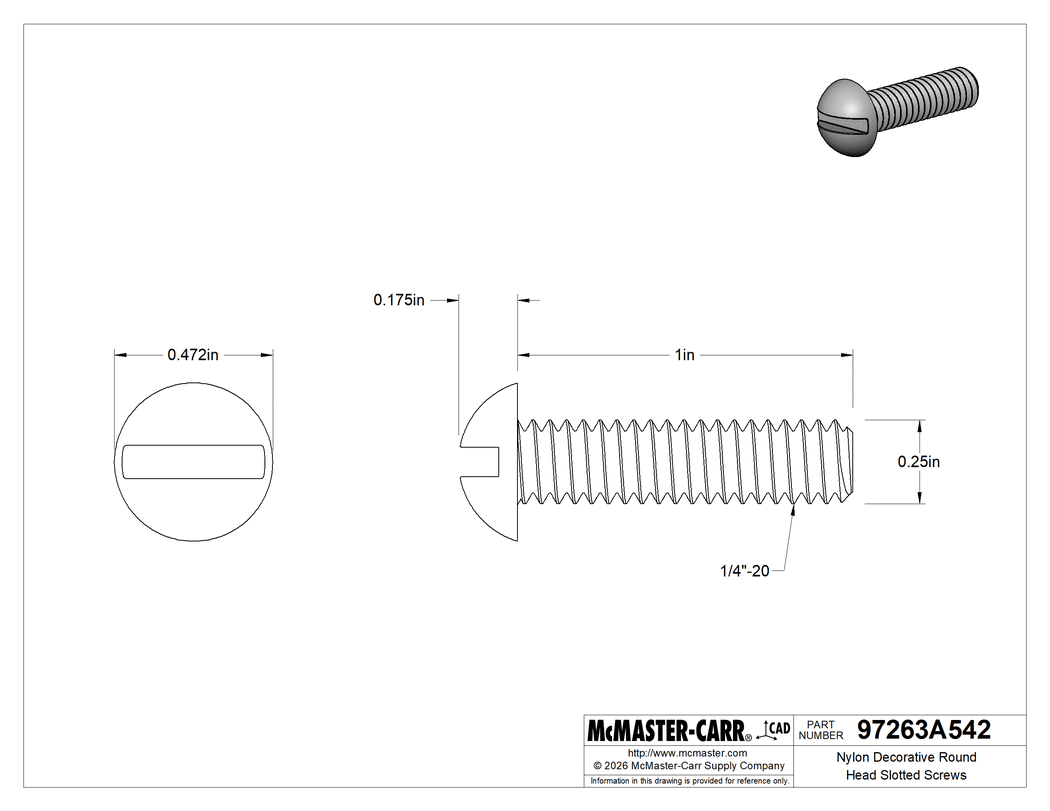

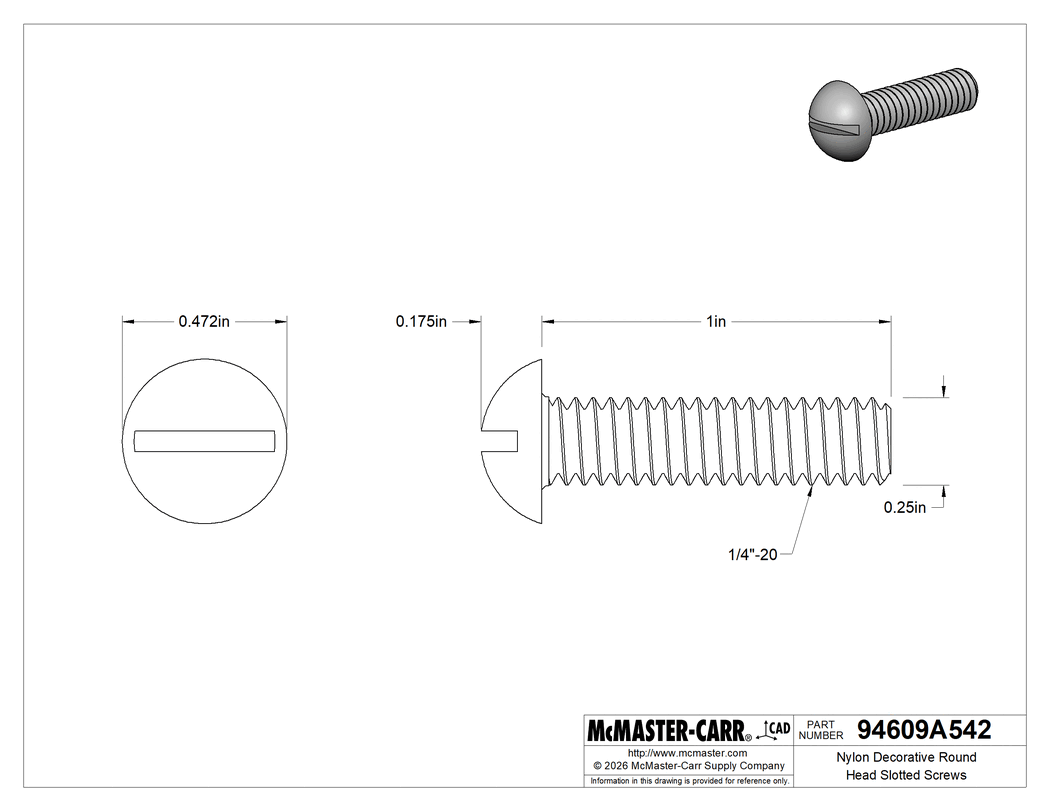

The information in this 3-D model is provided for reference only.
