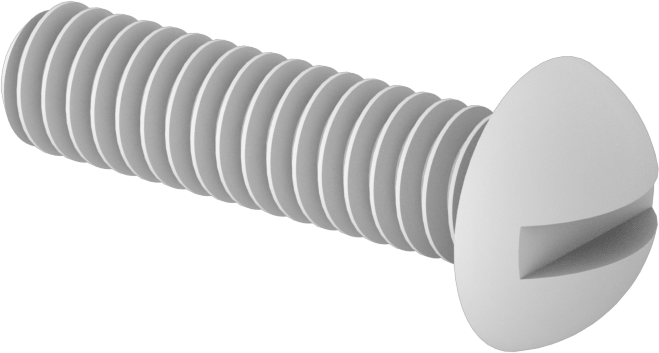

PTFE Decorative Round Head Slotted Screws
Extreme-Temperature, Chemical-Resistant, 1/4"-20 Thread, 1" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Round |
Profile | Standard |
Height | 0.175" |
Diameter | 0.472" |
Drive Style | Slotted |
Material | PTFE |
Length | 1" |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Color | White |
Temperature Range | -100° F to 500° F |
Hardness | Not Rated |
Performance | Chemical Resistant, High Temperature, Seize Resistant |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Create a finished appearance on panels and covers with the smooth, domed head. Made of plastic, they're lightweight and nonconductive. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.
High-Temperature Chemical-Resistant PTFE—The most chemical-resistant plastic rounded head screws we offer, these stand up to the widest range of harsh acids, bases, solvents, and corrosive cleaners. They also keep their shape and strength at higher temperatures than most plastics.

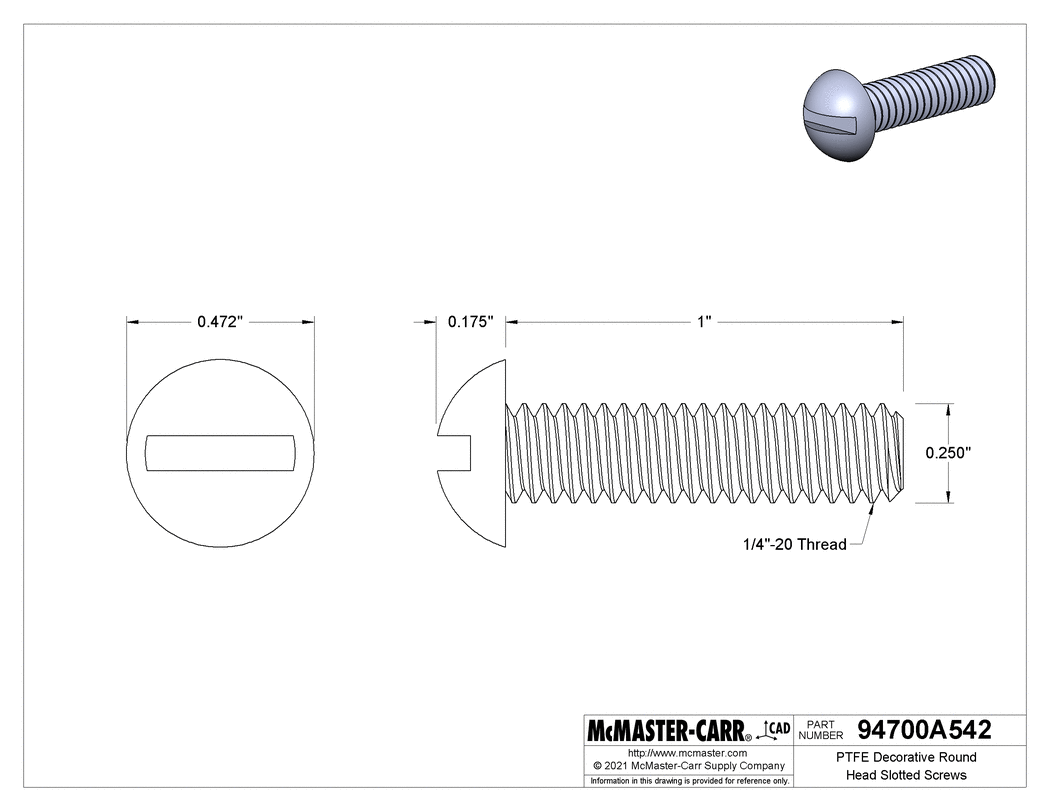

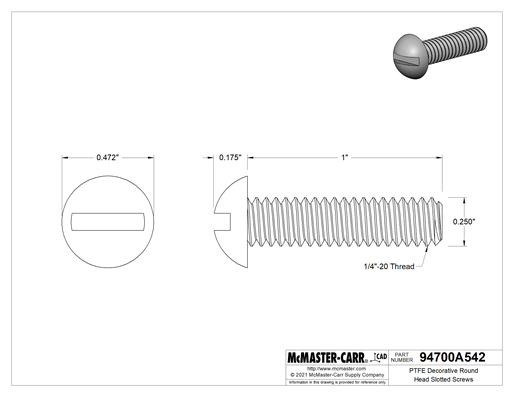

The information in this 3-D model is provided for reference only.
