Chemical-Resistant High-Temperature PTFE Plastic Screw
Pan Head Slotted, 10-32 Thread Size, 1/2" Long
Thread | |
Size | 10-32 |
Direction | Right Hand |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.11" |
Diameter | 0.373" |
Drive Style | Slotted |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Color | White |
Temperature Range | -350° F to 500° F |
Specifications Met | ASME B18.6.3 |
Hardness | Not Rated |
Material | PTFE |
Performance | Chemical Resistant, High Temperature, Seize Resistant |
Screw Size Decimal Equivalent | 0.190" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Combine the lightweight and nonconductive properties of plastic with the simplest drive style. These screws are often used to attach panels and covers to electronics and automated equipment. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.

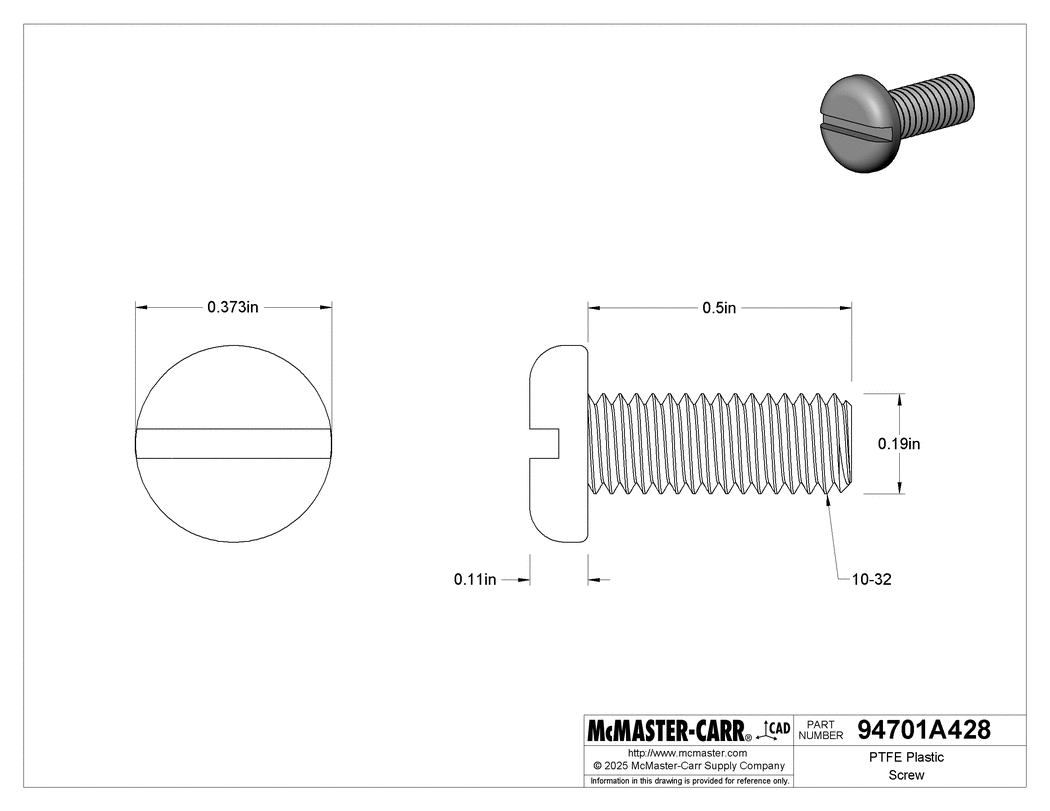

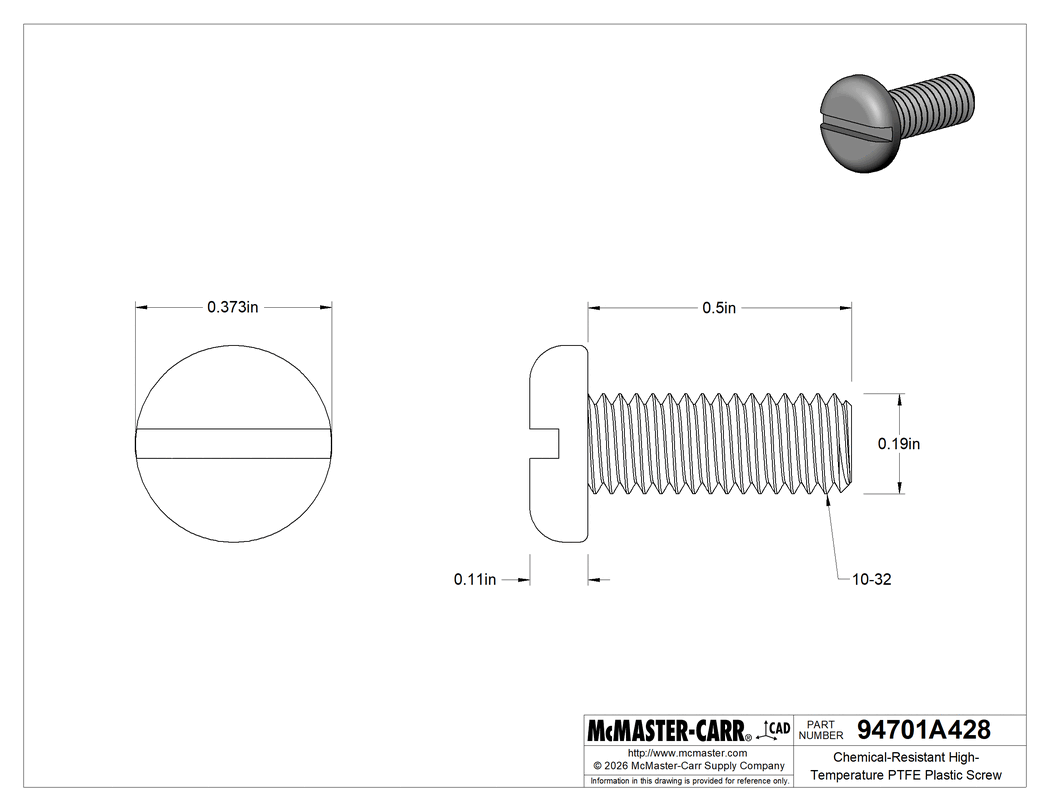

Length is measured from under the head.
High-Temperature Chemical-Resistant PTFE—The most chemical-resistant plastic rounded head screws we offer, these stand up to the widest range of harsh acids, bases, solvents, and corrosive cleaners. They also keep their shape and strength at higher temperatures than most plastics.

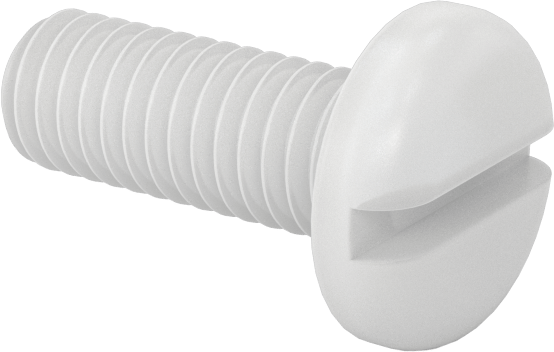

The information in this 3-D model is provided for reference only.
