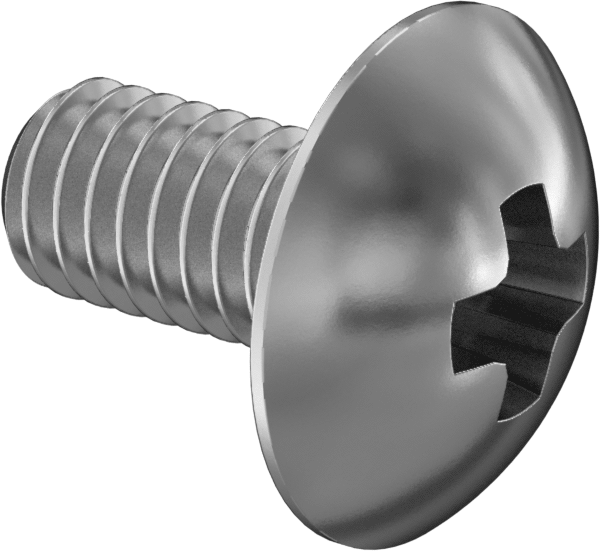

316 Stainless Steel Extra-Wide Truss Head Phillips Screws
M4 x 0.7mm Thread, 8mm Long
Thread | |
Size | M4 |
Pitch | 0.7 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Truss |
Profile | Wide |
Height | 2.59 mm |
Diameter | 9.75 mm |
Drive | |
Style | Phillips |
Size | No. 2 |
Length | 8 mm |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Hardness | Not Rated |
Material | 316 Stainless Steel |
Passivation | Passivated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most corrosion-resistant truss head Phillips screws. Their wide head spreads out pressure without adding a washer and reduces the risk of crushing thin material, such as sheet metal. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.

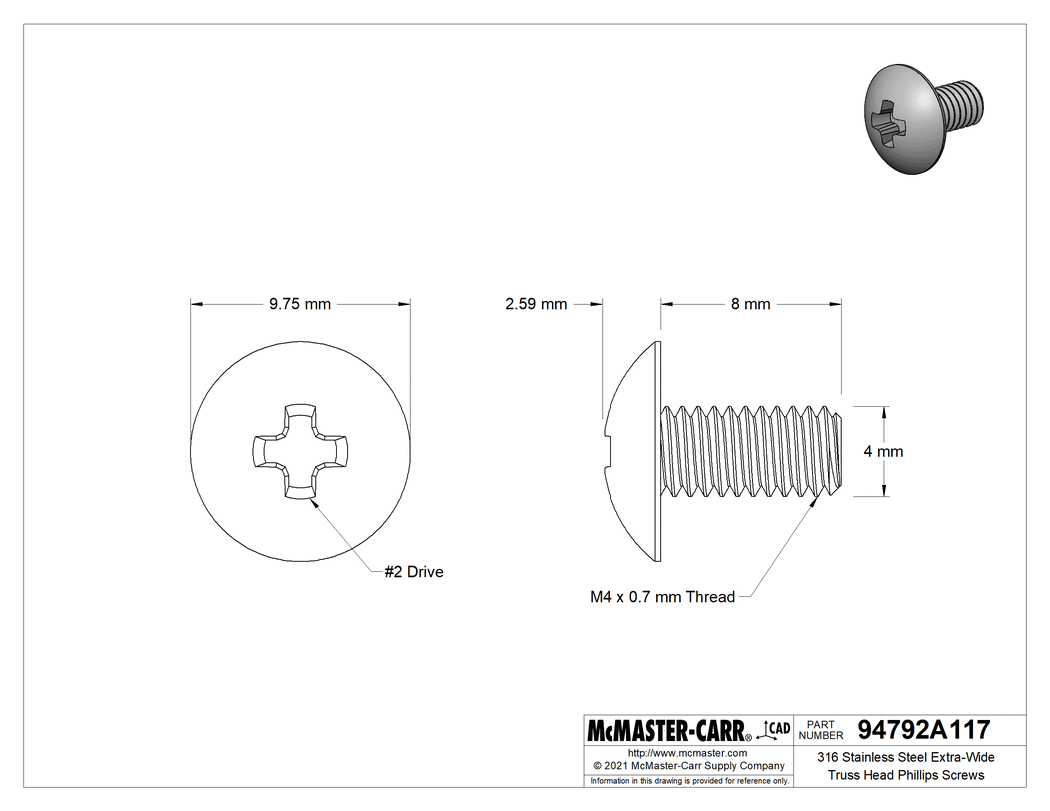

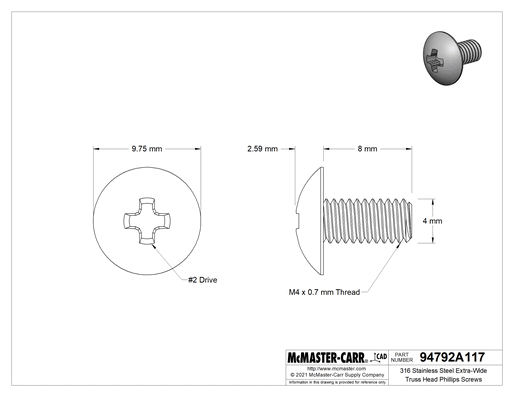

The information in this 3-D model is provided for reference only.
