316 Stainless Steel Extra-Wide Truss Head Phillips Screws
1/4"-20 Thread, 3/4" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Truss |
Profile | Wide |
Height | 0.15" |
Diameter | 0.573" |
Drive | |
Style | Phillips |
Size | No. 3 |
Material | 316 Stainless Steel |
Length | 3/4" |
Threading | Fully Threaded |
Tensile Strength | 100,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B100 |
Passivation | Passivated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most corrosion-resistant truss head Phillips screws. Their wide head spreads out pressure without adding a washer and reduces the risk of crushing thin material, such as sheet metal. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.

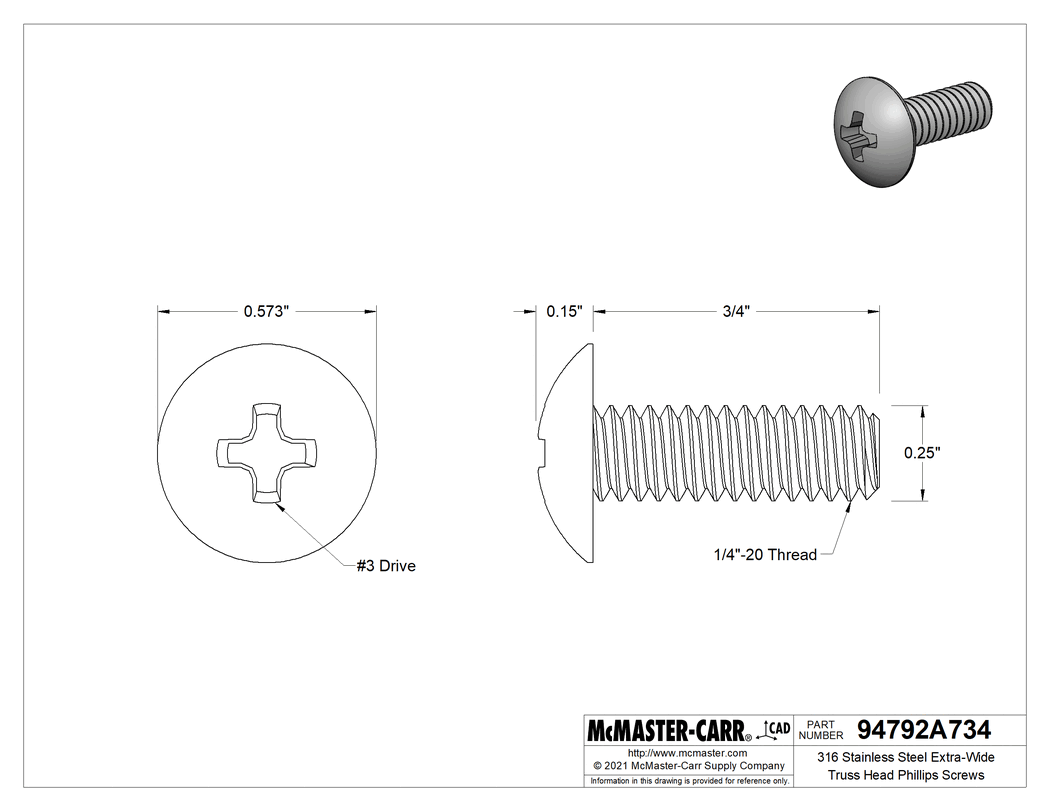

The information in this 3-D model is provided for reference only.
