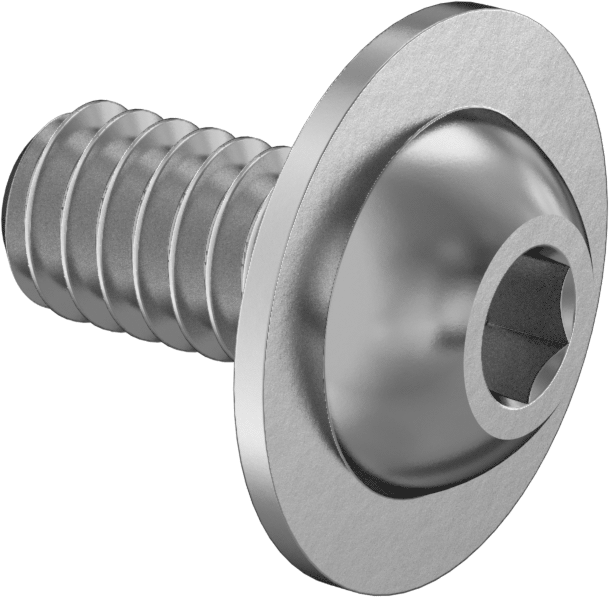

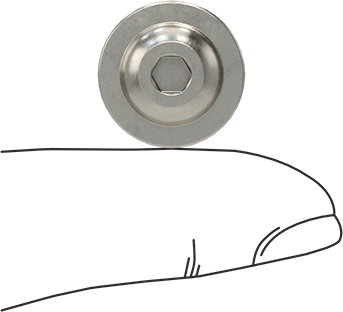

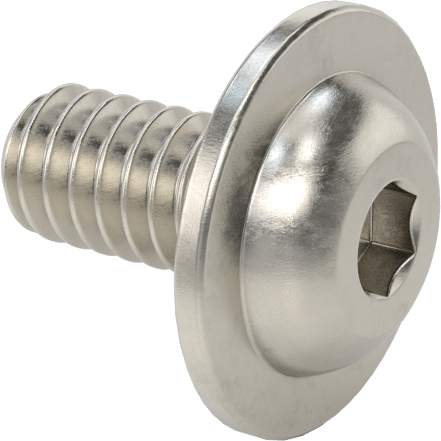

Extra-Wide Flanged Button Head Screw
1/4"-20 Thread, 1/2" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Size Designation | Oversized |
Fastener Head Type | Flanged, Rounded |
Head | |
Style | Button |
Profile | Wide |
Height | 0.156" |
Diameter | 0.46" |
Drive | |
Style | Hex |
Size | 5/32" |
Material | 316 Stainless Steel |
Length | 1/2" |
Flange Diameter | 0.656" |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Hardness | Rockwell B85 |
Performance | Chemical Resistant, Highly Corrosion Resistant |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Spread out pressure over a large area without adding a washer. Up to twice the diameter of standard flanges, the flange on these screws distributes pressure over a large area, protecting thin material. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals, but they're not as strong as alloy steel. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Length is measured from under the head.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.

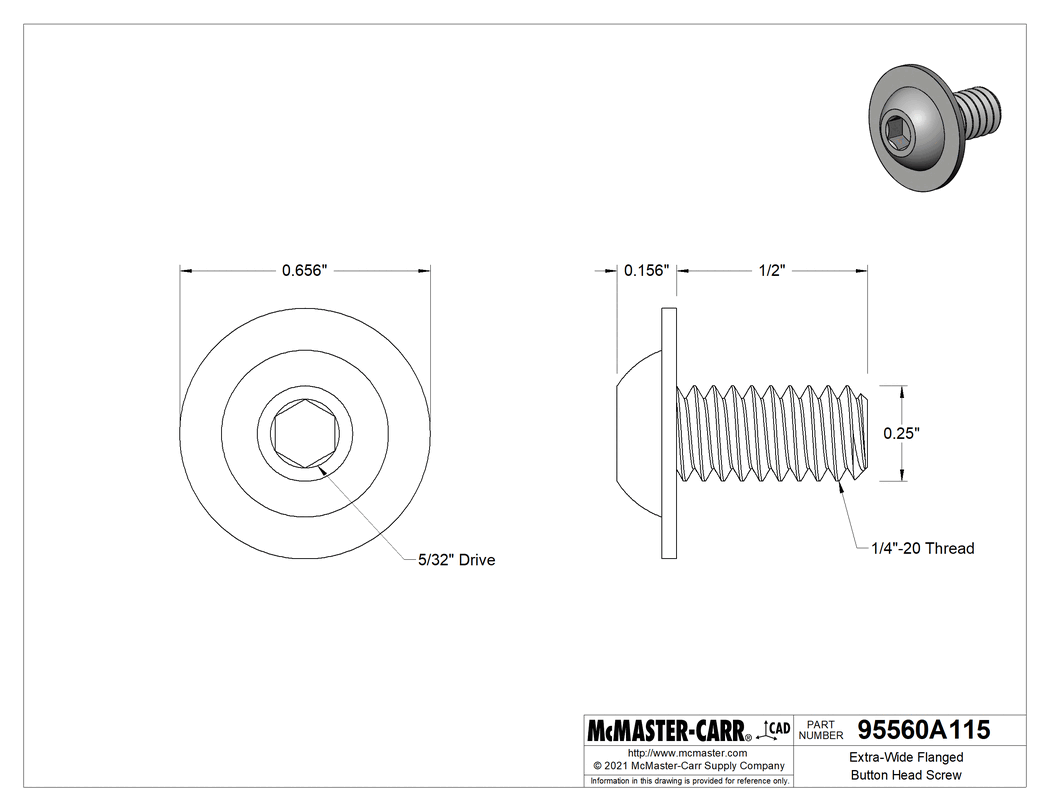

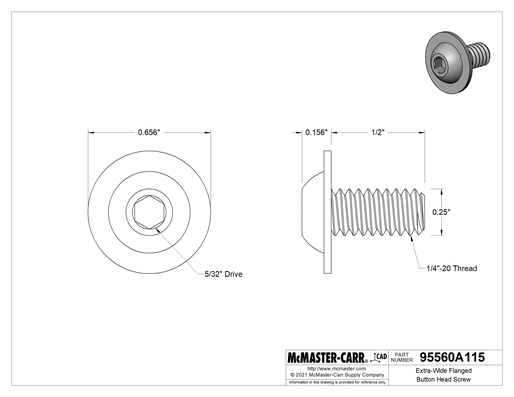

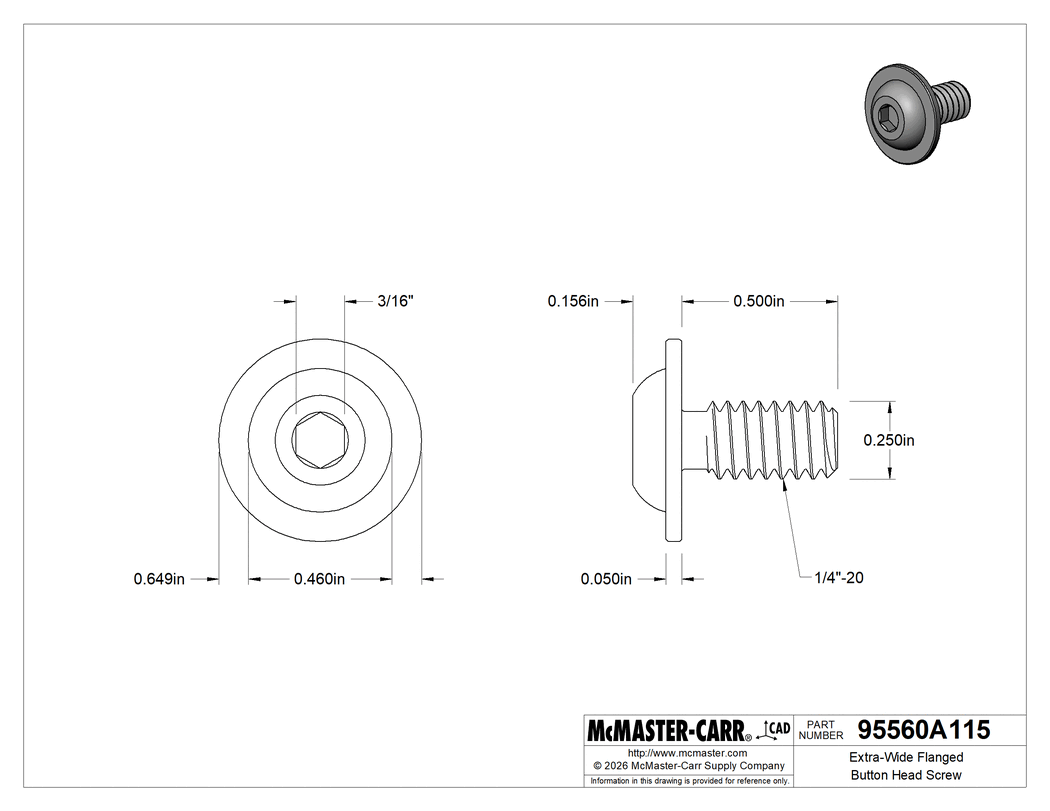

The information in this 3-D model is provided for reference only.
