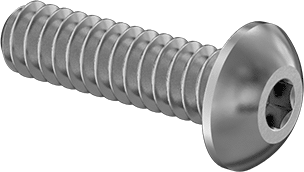

Vented Button Head Screws
6-32 Thread, 1/2" Long
Thread | |
Size | 6-32 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 3A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 0.073" |
Diameter | 0.262" |
Drive | |
Style | Hex |
Size | 5/64" |
Material | 18-8 Stainless Steel |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Application | Venting |
Construction | Vented |
Hardness | Rockwell B81 |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.138" |
System of Measurement | Inch |
Vent Diameter | 0.048" |
Country of Origin | China, India, Taiwan, United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

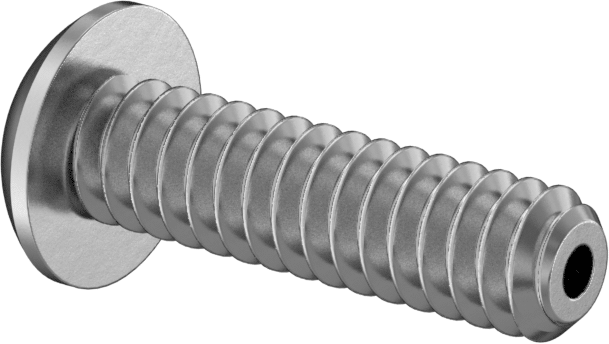

Prevent the buildup of pressure or vacuum in sealed spaces. These screws have a hole drilled through their center that lets air, fluid, and gases escape. They're often used to release trapped gas and equalize pressure caused by high temperatures in coating, curing, and heating applications. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

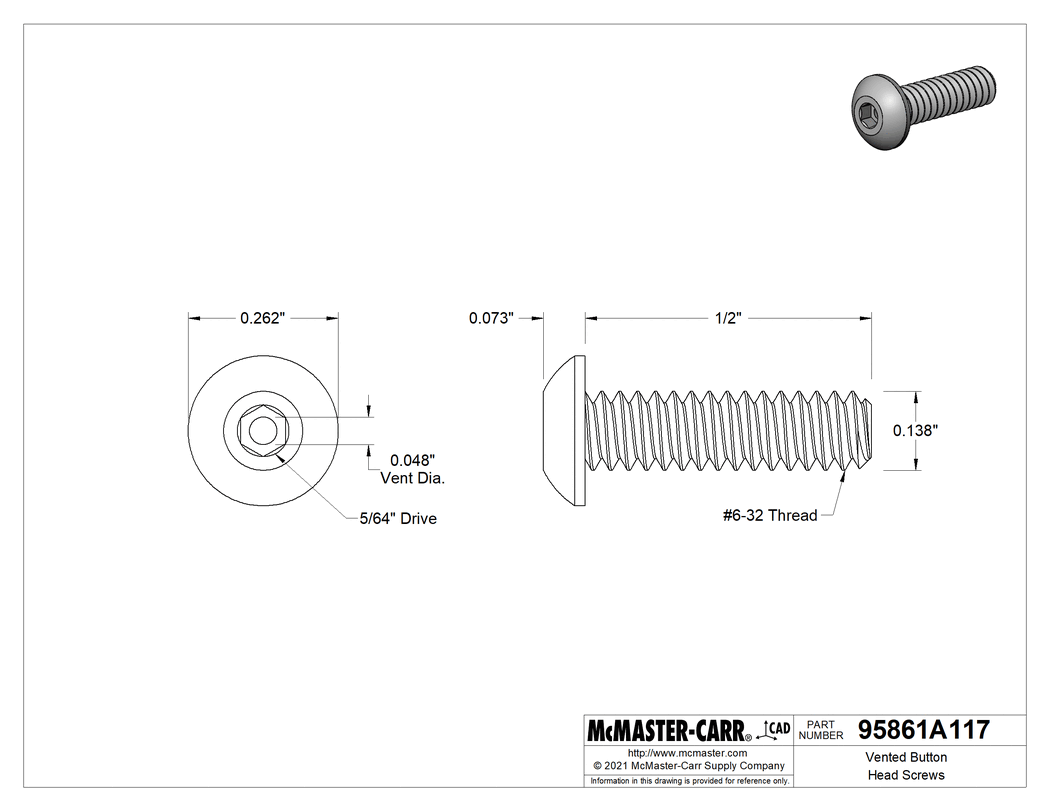

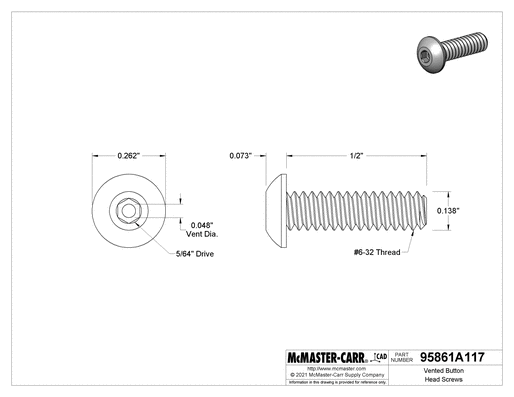

The information in this 3-D model is provided for reference only.
