    Thread-Locking Rounded Head Screws

    Ultra Vibration-Resistant, 8-32 Thread, 3/8" Long

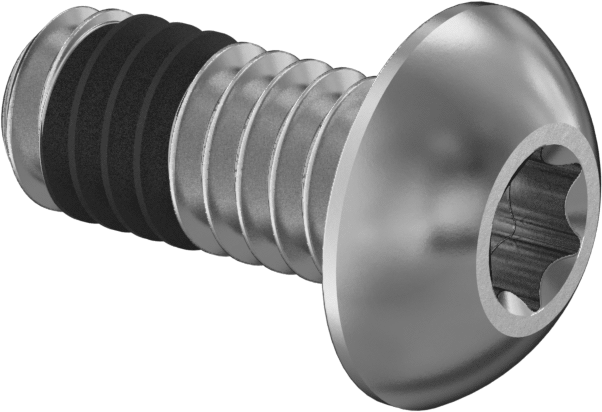

    Image of Product. Front orientation. Thread-Locking Rounded Head Screws, Ultra Vibration-Resistant, 8-32 Thread, 3/8" Long.

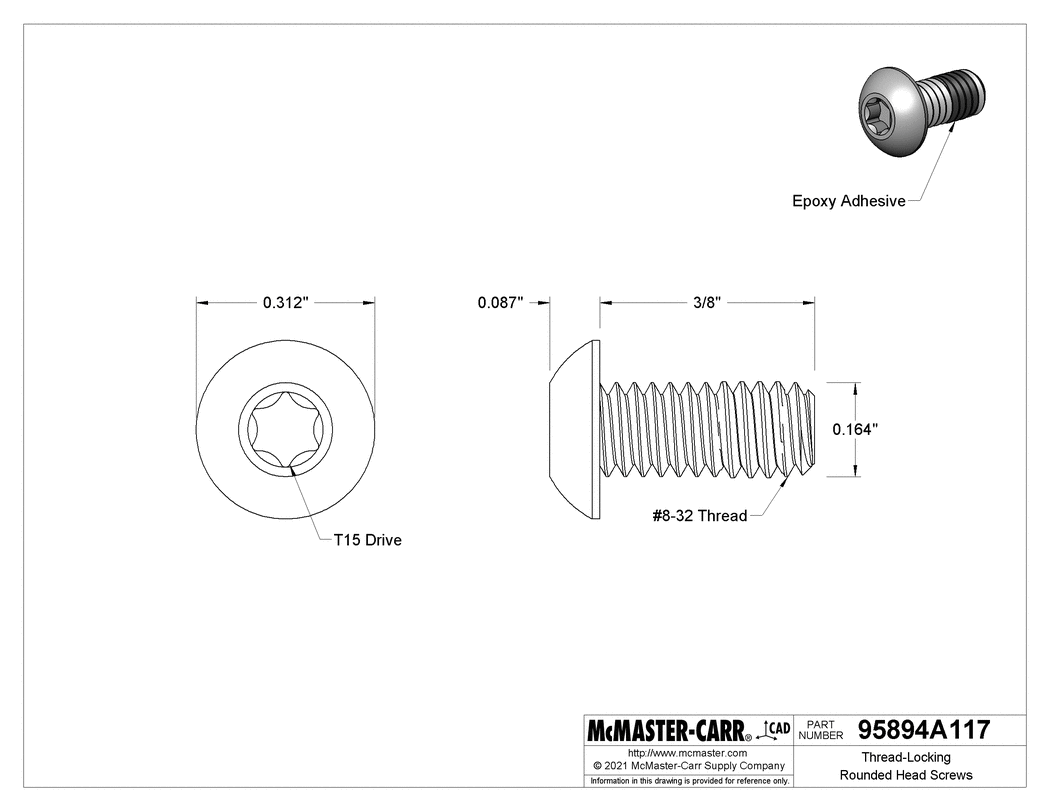

    Technical Drawing of Thread-Locking Rounded Head Screws, Ultra Vibration-Resistant, 8-32 Thread, 3/8" Long.
    Image of Specification. Front orientation. Thread-Locking Rounded Head Screws, Ultra Vibration-Resistant, 8-32 Thread, 3/8" Long.
    2-D PDF
    000000 per pack of 5
    95894A117
    In stock
    95894A117
    000000 per pack of 5
    Pack of 5
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Locking Type

    Threadlocker

    Thread

    Size

    8-32

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    UNC

    Fit

    Unified Standard Class 3A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Button

    Profile

    Standard

    Height

    0.087"

    Diameter

    0.312"

    Drive

    Style

    Torx

    Size

    T15

    Length

    3/8"

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Threadlocker Type

    Epoxy Adhesive

    Threadlocker Temperature Range

    -65° F to 300° F

    Begins to Harden

    4 hr.

    Reaches Full Strength

    72 hr.

    Hardness

    Rockwell B55

    Material

    18-8 Stainless Steel

    Performance

    Corrosion Resistant, Vibration Resistant

    Screw Size Decimal Equivalent

    0.164"

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7008)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These Torx screws keep parts in place on machinery with vibration when fastening in corrosive environments. These screws have threadlocker bonded to the threads, saving you the time and mess of adding it yourself. Made of stainless steel, they won't rust, but they're not as strong as alloy steel. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With a deep six-lobe opening, the Torx drive prevents your driver from slipping and stripping the drive. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives.

    Length is measured from under the head.

    18-8 Stainless SteelThe choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

    Epoxy-Adhesive ThreadlockerWith twice the holding power of nylon-patch threadlockers, these give you the best vibration resistance of our thread-locking rounded head screws. As you tighten these screws, the epoxies mix and harden to hold the screw in place.

    The information in this 3-D model is provided for reference only.
