Left-Hand Threaded Button Head Screws
M6 x 1.00 mm Thread, 20mm Long
Thread | |
Size | M6 |
Pitch | 1 mm |
Direction | Left Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 3.3 mm |
Diameter | 10.5 mm |
Drive | |
Style | Hex |
Size | 4 mm |
Material | 18-8 Stainless Steel |
Length | 20 mm |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Hardness | Rockwell B85 |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

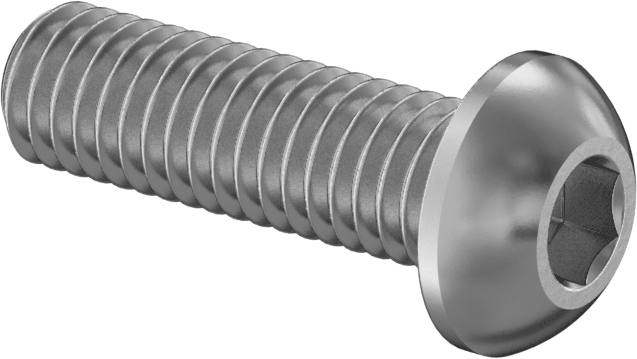

No more righty tighty. Turn these screws to the left to tighten them. Unlike other screws, they won't come loose during counterclockwise motions on reverse motors, grinders, and fans. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

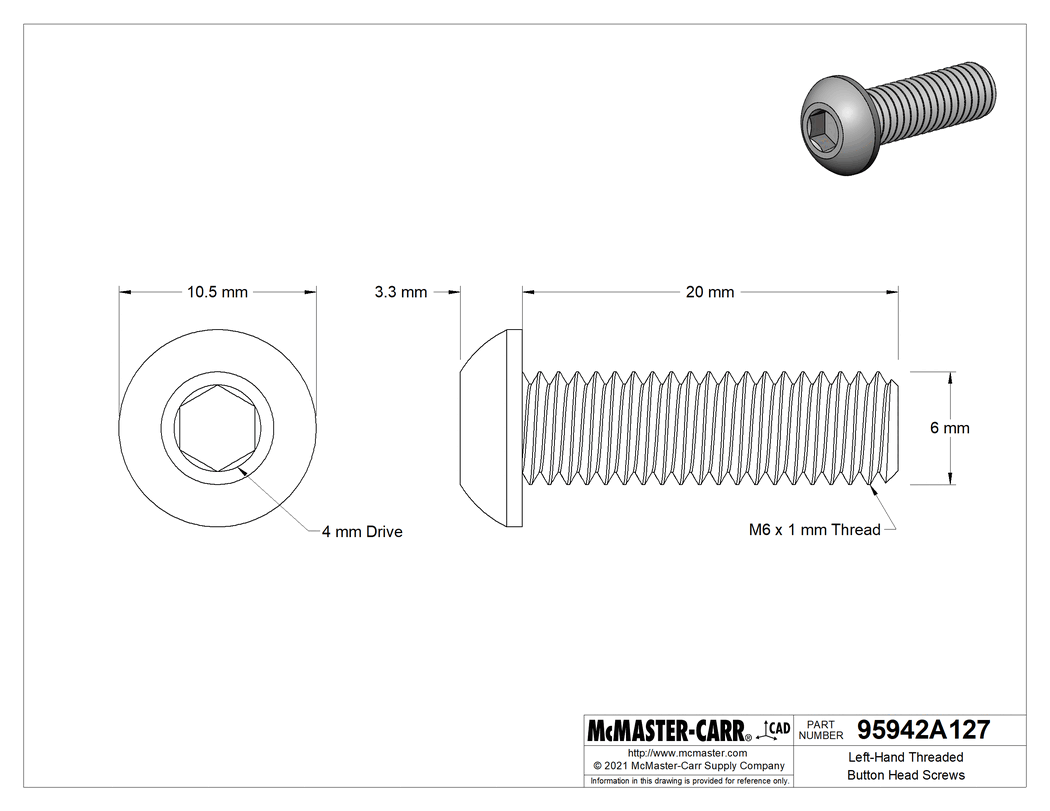

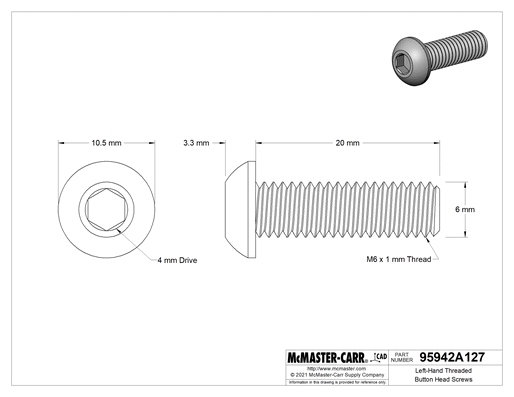

The information in this 3-D model is provided for reference only.
