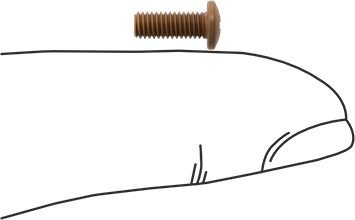

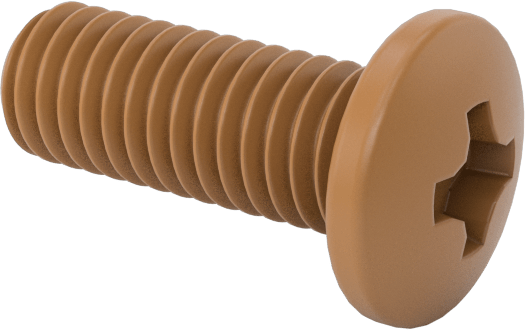

High-Strength High-Temperature PEEK Screw
Pan Head Phillips, M3 x 0.5 mm Thread Size, 8 mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 1.5 mm |
Diameter | 5.4 mm |
Drive | |
Style | Phillips |
Size | No. 1 |
Length | 8 mm |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Color | Beige |
Temperature Range | -50° F to 500° F |
Hardness | Not Rated |
Material | PEEK |
Performance | Chemical Resistant, High Strength, High Temperature |
System of Measurement | Metric |
Country of Origin | Serbia, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 1C998 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most common plastic pan head screws, these are often used to attach panels and covers to electronics and automated equipment. They're lightweight and nonconductive. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
High-Temperature High-Strength PEEK—Our strongest plastic screws. They also won't degrade from high heat, so they're good for joining components on circuit boards and other electrical applications. They aren't very impact resistant, however, and may crack or dent if subjected to hard bumps and vibrations.

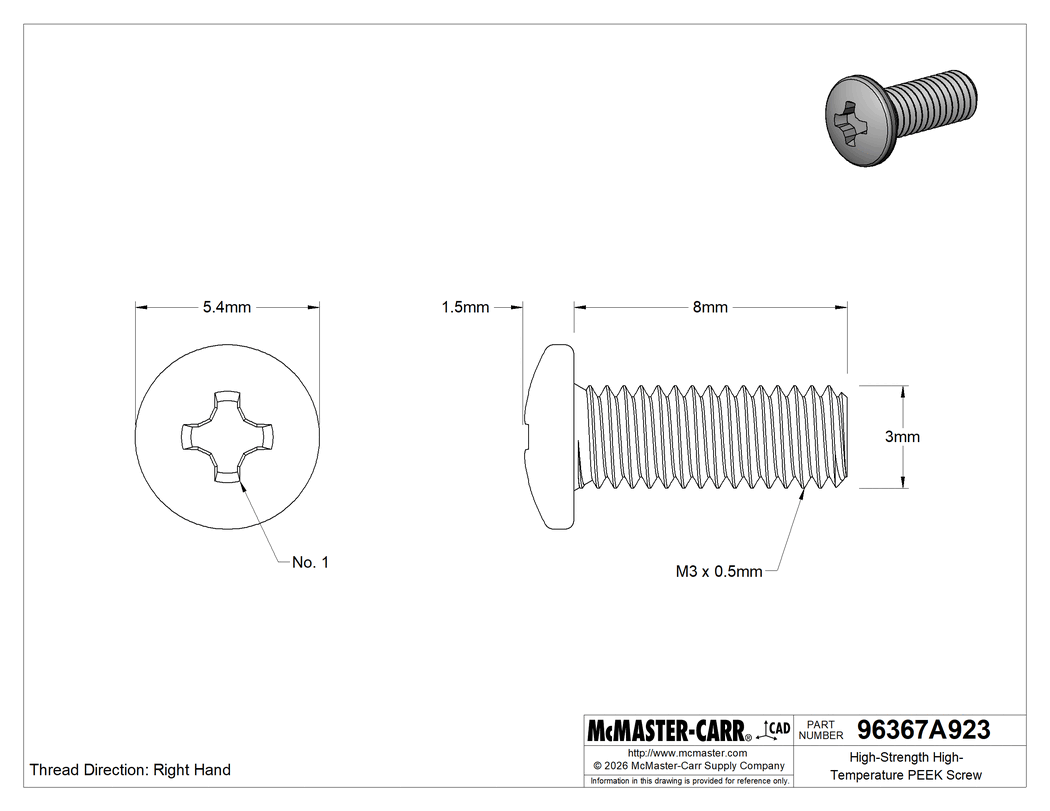

The information in this 3-D model is provided for reference only.
