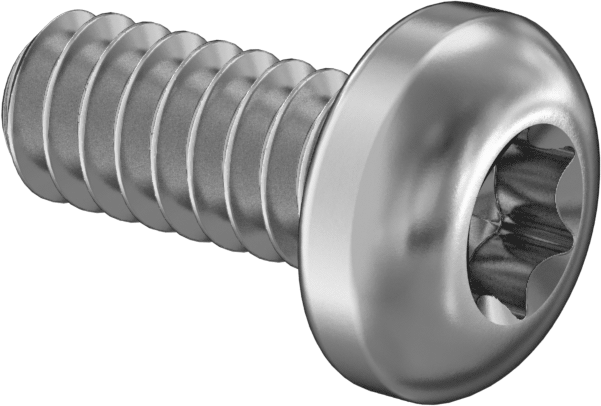

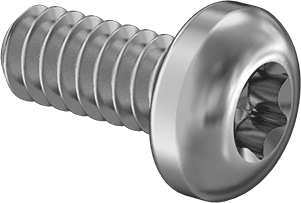

Stainless Steel Pan Head Torx Screws
4-40 Thread Size, 1/4" Long
Thread | |
Size | 4-40 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.08" |
Diameter | 0.219" |
Drive | |
Style | Torx Plus |
Size | IP10, T10 |
Material | 18-8 Stainless Steel |
Length | 1/4" |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Hardness | Rockwell B55 |
Passivation | Passivated |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.112" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The most corrosion-resistant pan head Torx Plus screws we offer. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. With larger lobes than Torx drives, Torx Plus withstands even more torque without the driver slipping and stripping the drive.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

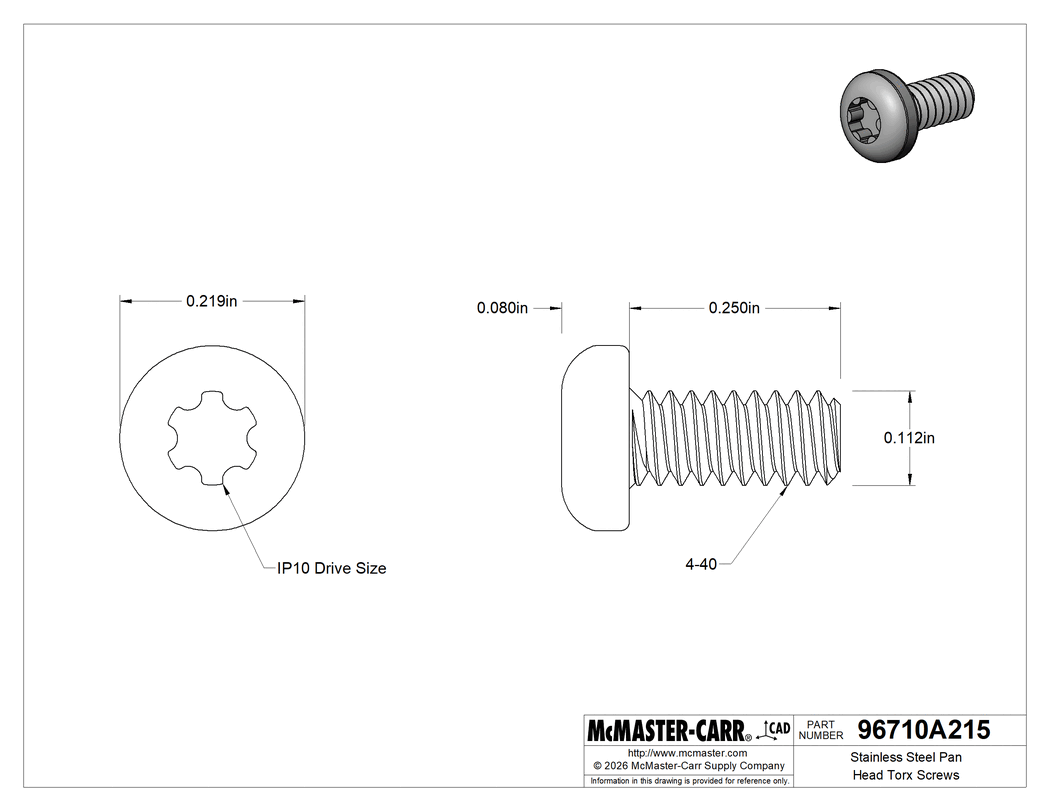

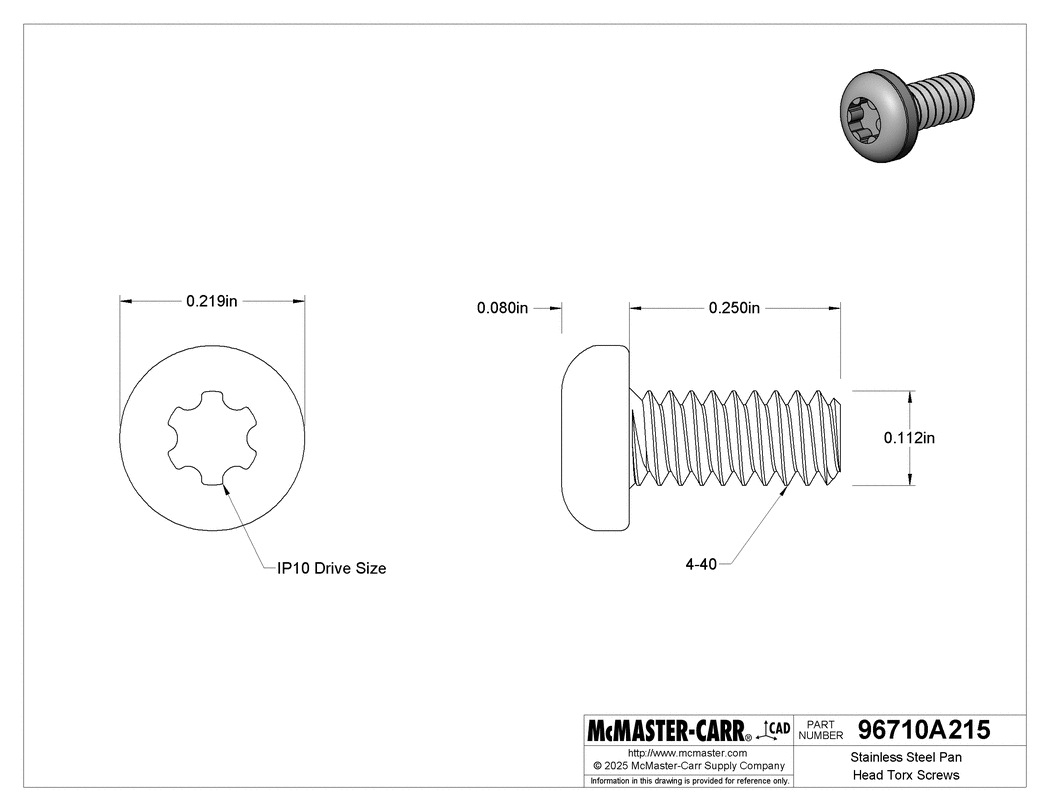

The information in this 3-D model is provided for reference only.
