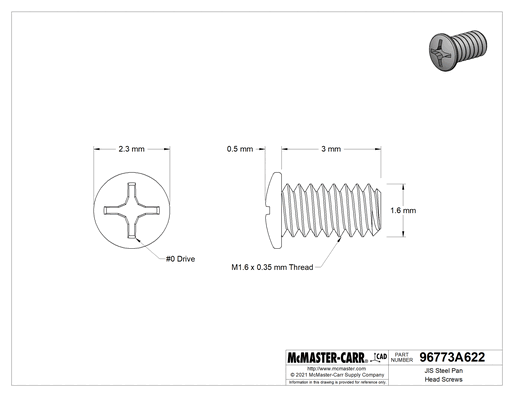

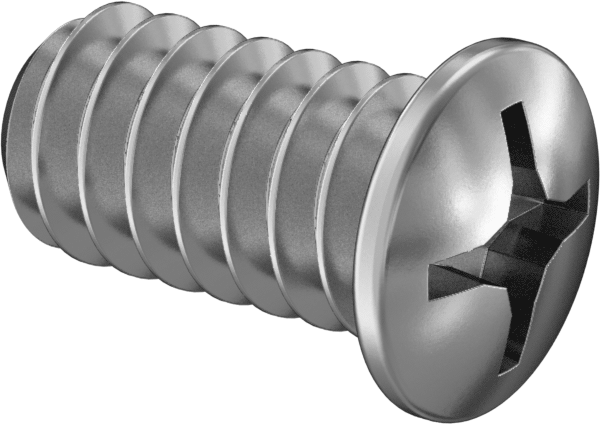

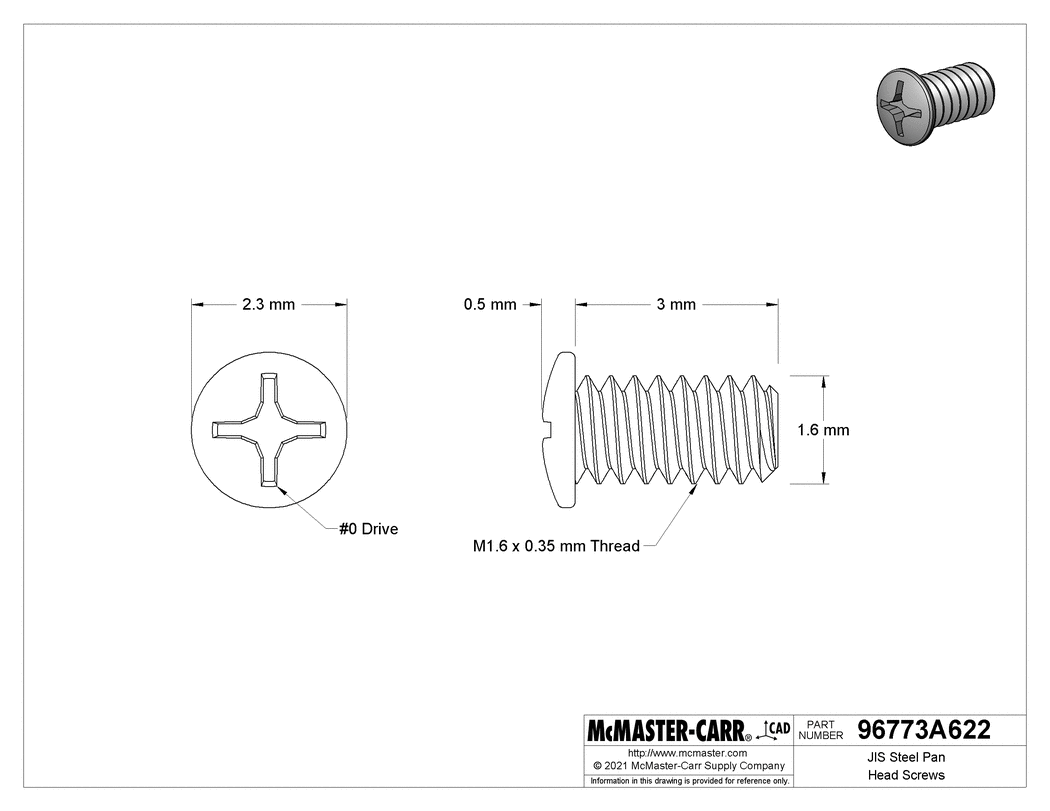

JIS Steel Pan Head Screws
M1.6 x 0.35 mm Thread, 3mm Long
Thread | |
Size | M1.6 |
Pitch | 0.35 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Not Rated |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.5 mm |
Diameter | 2.3 mm |
Drive | |
Style | JIS |
Size | No. 0 |
Length | 3 mm |
Length Tolerance | -0.2 mm to 0.2 mm |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Specifications Met | JCIS 10-70 |
Hardness | Not Rated |
Material | Zinc-Plated Steel |
System of Measurement | Metric |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These screws are manufactured to meet Japanese Industrial Standards. Similar in appearance to Phillips, the JIS drive has a shallower opening with sharper angles and straighter internal walls. This lets them withstand more torque while preventing the driver from slipping and damaging the drive. Tighten them only with a JIS driver to avoid stripping the drive. Some JIS screws are marked with a dot near the drive for quick identification. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
Resist loosening
Adhere
The information in this 3-D model is provided for reference only.
