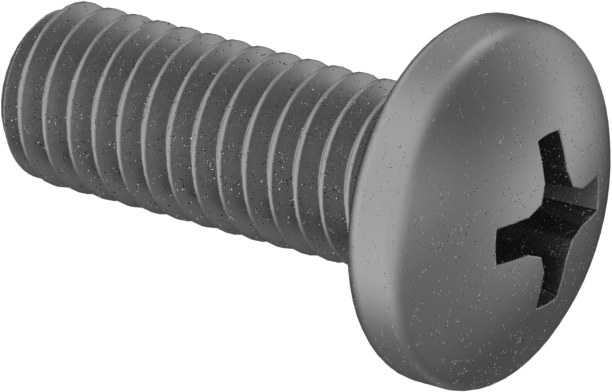

Mil. Spec. Steel Pan Head Phillips Screws
10-32 Thread Size, 1/2" Long
Thread | |
Size | 10-32 |
Direction | Right Hand |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.133" |
Diameter | 0.373" |
Drive | |
Style | Phillips |
Size | No. 2 |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | ASME B18.6.3, Fed. Spec. FF-S-92, Fed. Spec. QQ-P-416, NASM35207 |
Military Specification | MS35207-263 |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Certification | Mil. Spec. |
Hardness | Rockwell B69 |
Material | Cadmium-Plated Steel |
Screw Size Decimal Equivalent | 0.190" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Our most popular steel pan head screws. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
Cadmium-Plated Steel—The plating reduces friction between the screw and your mounting surface to prevent sticking when you tighten or loosen them. It also creates a barrier against rust.
Military Specification—These screws are manufactured and tested to meet strict U.S. military standards for material and construction.
Resist loosening
Adhere

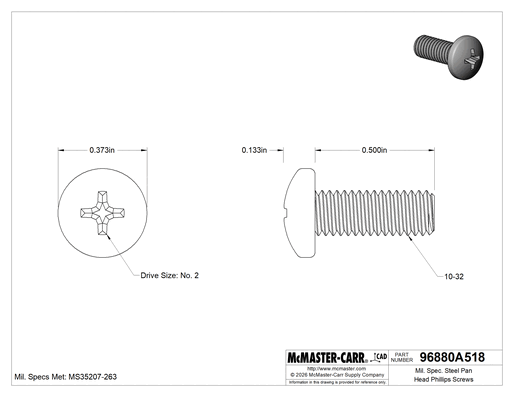

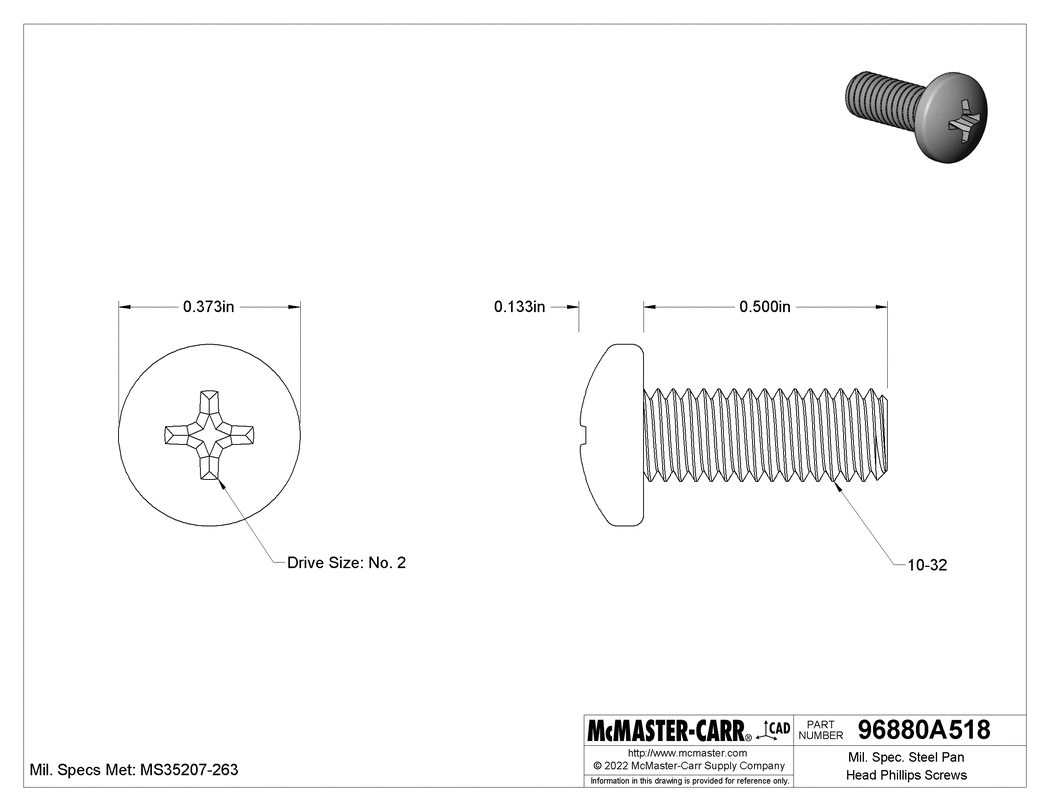

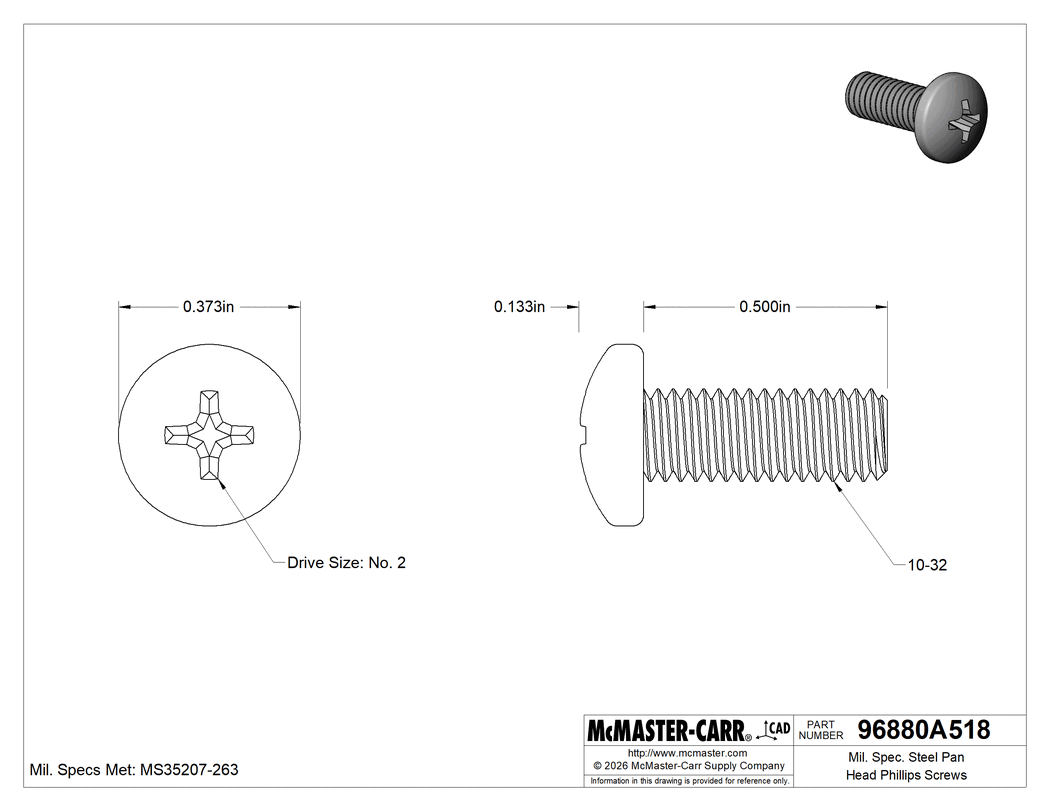

The information in this 3-D model is provided for reference only.
