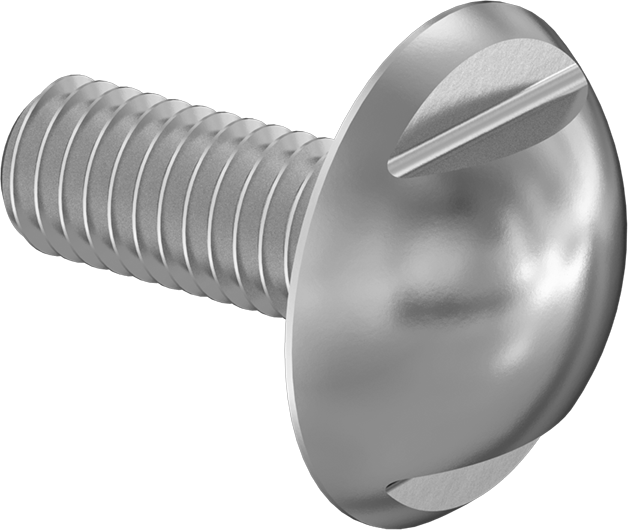

Sanitary Extra-Wide Truss Head Screw
M6 x 1.00 mm Thread Size, 16 mm Long
Thread | |
Size | M6 |
Pitch | 1 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Truss |
Profile | Wide |
Height | 5 mm |
Diameter | 17 mm |
Drive | |
Style | Wrench Flats |
Size | 10 mm |
Length | 16 mm |
Exterior Smoothness | 32 Ra |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Environment | Food and Beverage, Sanitary |
Hardness | Rockwell B96 |
Material | 316L Stainless Steel |
Performance | Chemical Resistant, Highly Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Germany |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Minimize bacteria and contaminants in food, pharmaceutical, and other sanitary environments. These screws are made of stainless steel, so they won't corrode from frequent washdowns with harsh cleaners and sanitizers. With an extremely smooth surface, they don't have microscopic crevices where bacteria can hide. Their wide head spreads out pressure without adding a washer and reduces the risk of crushing material, such as sheet metal. These screws have a wrench-flat drive with two shallow notches that self-drain to reduce bacterial growth. Tighten the drive with a spanner wrench.
Length is measured from under the head.

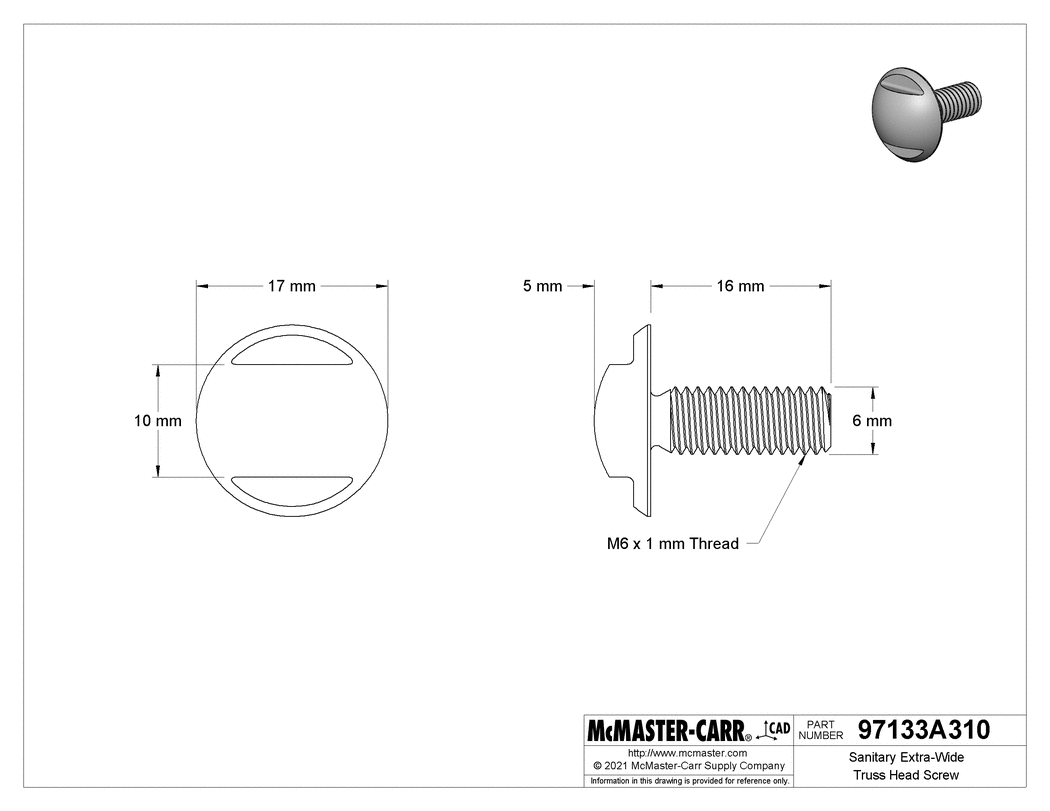

The information in this 3-D model is provided for reference only.
