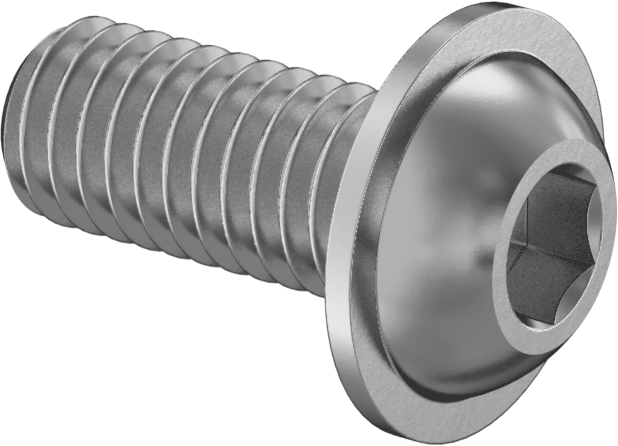

18-8 Stainless Steel Flanged Button Head Screw
M6 x 1 mm Thread Size, 14 mm Long
Thread | |
Size | M6 |
Pitch | 1 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Flanged, Rounded |
Head | |
Style | Button |
Profile | Wide |
Height | 3.3 mm |
Diameter | 10 mm |
Drive | |
Style | Hex |
Size | 4 mm |
Length | 14 mm |
Flange Diameter | 13.6 mm |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Specifications Met | ISO 7380 |
Hardness | Not Rated |
Material | 18-8 Stainless Steel |
Passivation | Passivated |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Secure thin and soft materials in corrosive environments without needing a separate washer. A flange on these screws spreads pressure evenly over a wide area. Made of stainless steel, they won't rust, but they're not as strong as alloy steel. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Head height includes the flange. Length is measured from under the flange.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

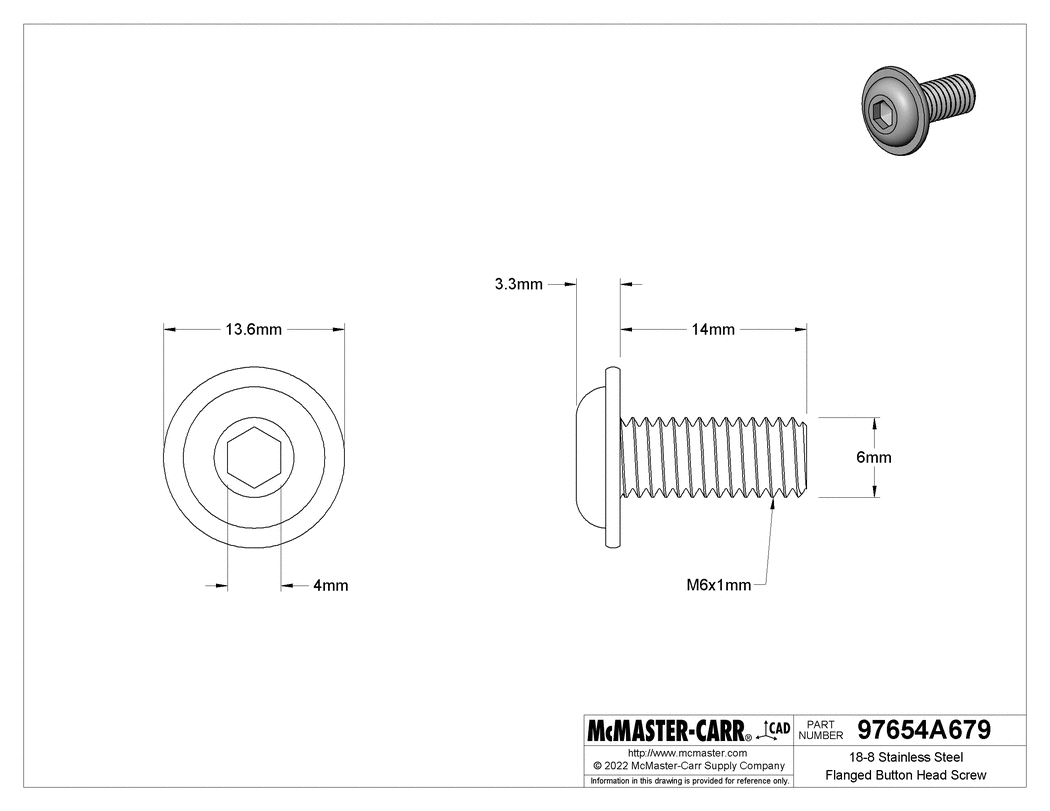

The information in this 3-D model is provided for reference only.
