Painted Steel Pan Head Torx Screws

with Black Head, M6 Thread, 20 mm Long

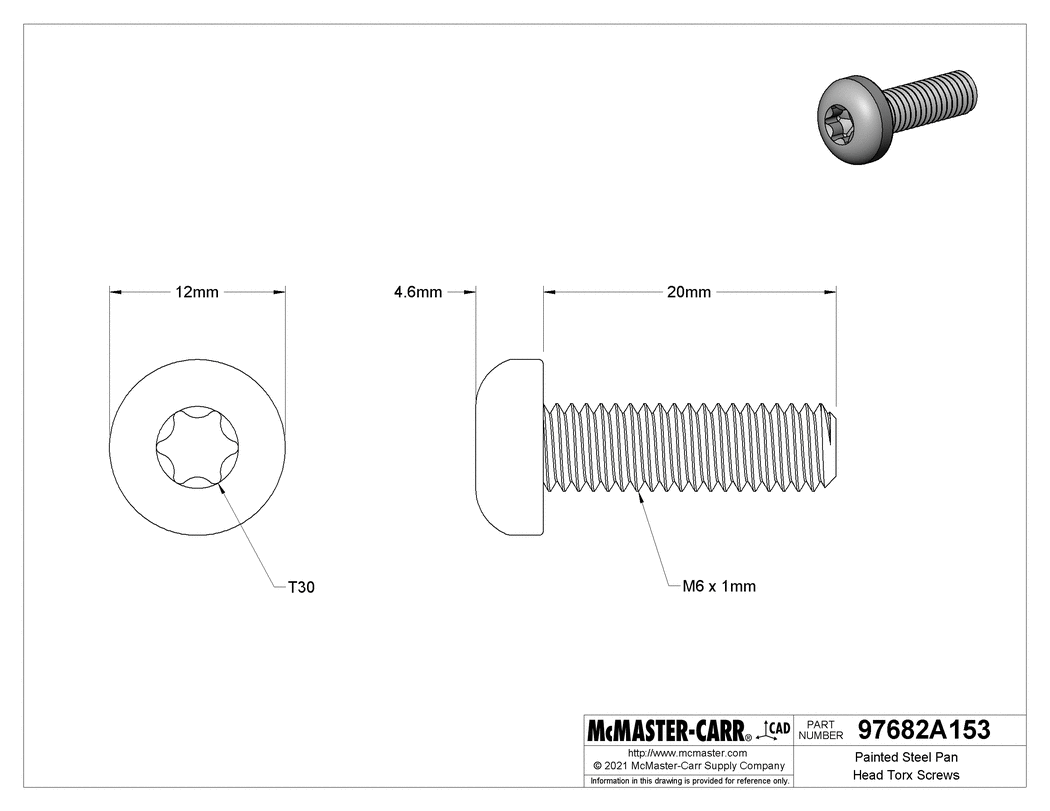

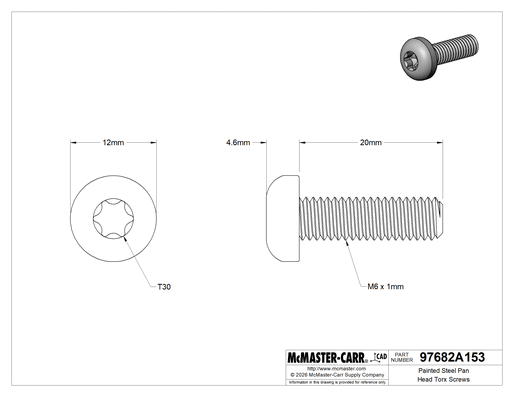

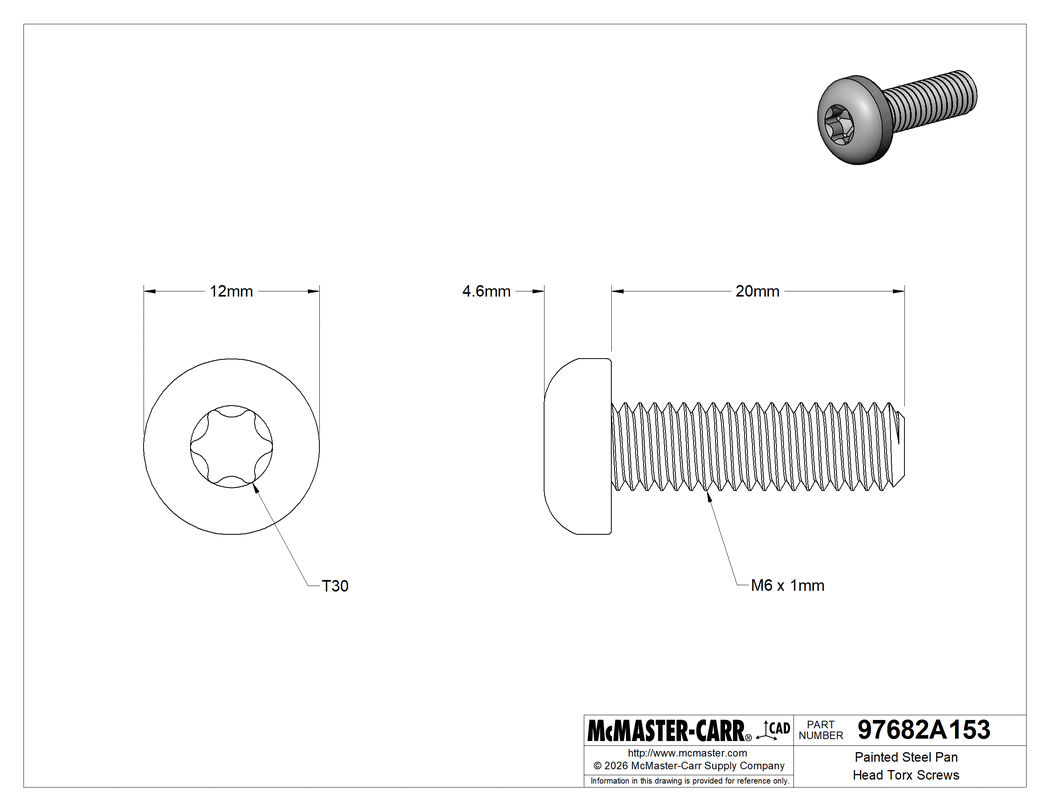

Technical Drawing of Painted Steel Pan Head Torx Screws, with Black Head, M6 Thread, 20 mm Long.

Image of Attribute. Front orientation. Painted Steel Pan Head Torx Screws, with Black Head, M6 Thread, 20 mm Long.

Image of Specification. Front orientation. Painted Steel Pan Head Torx Screws, with Black Head, M6 Thread, 20 mm Long.

2-D PDF

00000 per pack of 10

97682A153

In stock

97682A153

00000 per pack of 10

QuantityPack of 10

In stock

Select a compatible file type: Parasolid

Solidworks 2022 and Parasolid files now available

Solidworks 2022, PDF, and DWG files now available

Parasolid files now available

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread
Size	M6
Pitch	1 mm
Direction	Right Hand
Spacing	Coarse
Type	Metric
Fit	Metric Class 6g
Tip Type	Flat
Fastener Head Type	Rounded
Head
Style	Pan
Profile	Standard
Height	4.6 mm
Diameter	12 mm
Finish	Painted
Drive
Style	Torx
Size	T30
Length	20 mm
Threading	Fully Threaded
Tensile Strength	60,000 psi
Specifications Met	ISO 14583
Hardness	Rockwell B71
Material	Zinc-Plated Steel
System of Measurement	Metric
Country of Origin	Canada, China, India, Italy, Malaysia, South Korea, Taiwan, Thailand, United States, Vietnam
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

Get a grip with less slip. With a deep six-lobe opening, these screws prevent drivers from slipping and stripping drives. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.

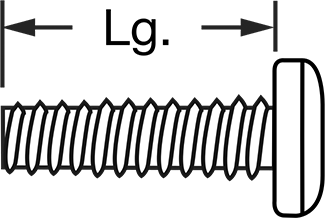

Length is measured from under the head.

Zinc-Plated Steel with Black Painted Head—Add a decorative touch to your projects without the hassle of painting screws yourself. These screws are a common choice for areas with occasional exposure to moisture.
