    Painted Steel Pan Head Torx Screw

    with Black Head, 1/4"-20 Thread Size, 3/4" Long

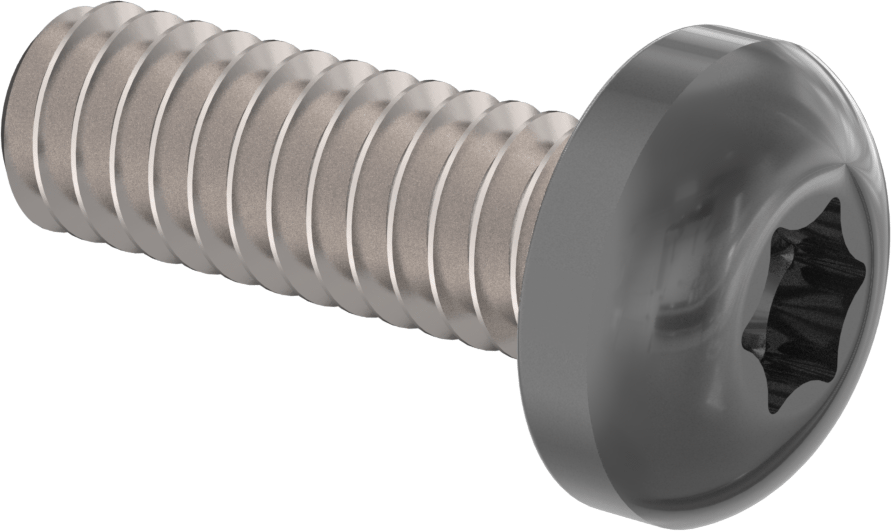

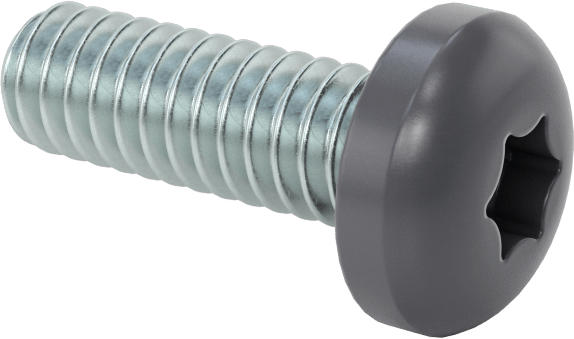

    Image of Product. Front orientation. Painted Steel Pan Head Torx Screw, with Black Head, 1/4"-20 Thread Size, 3/4" Long.

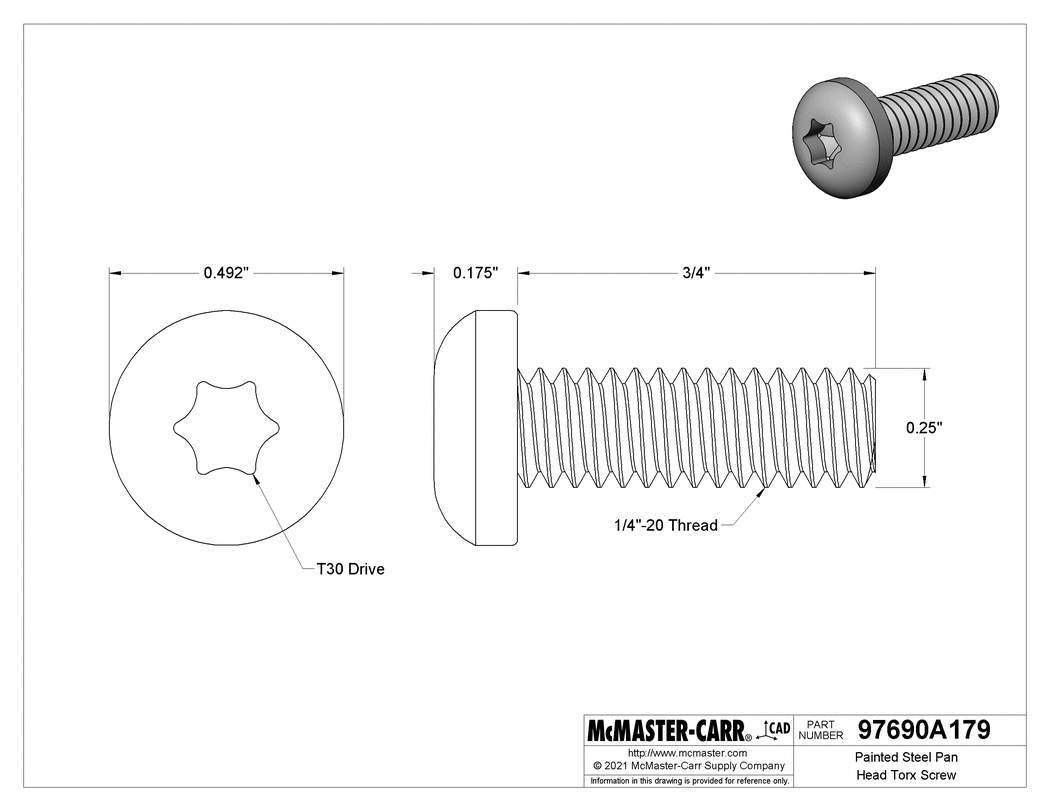

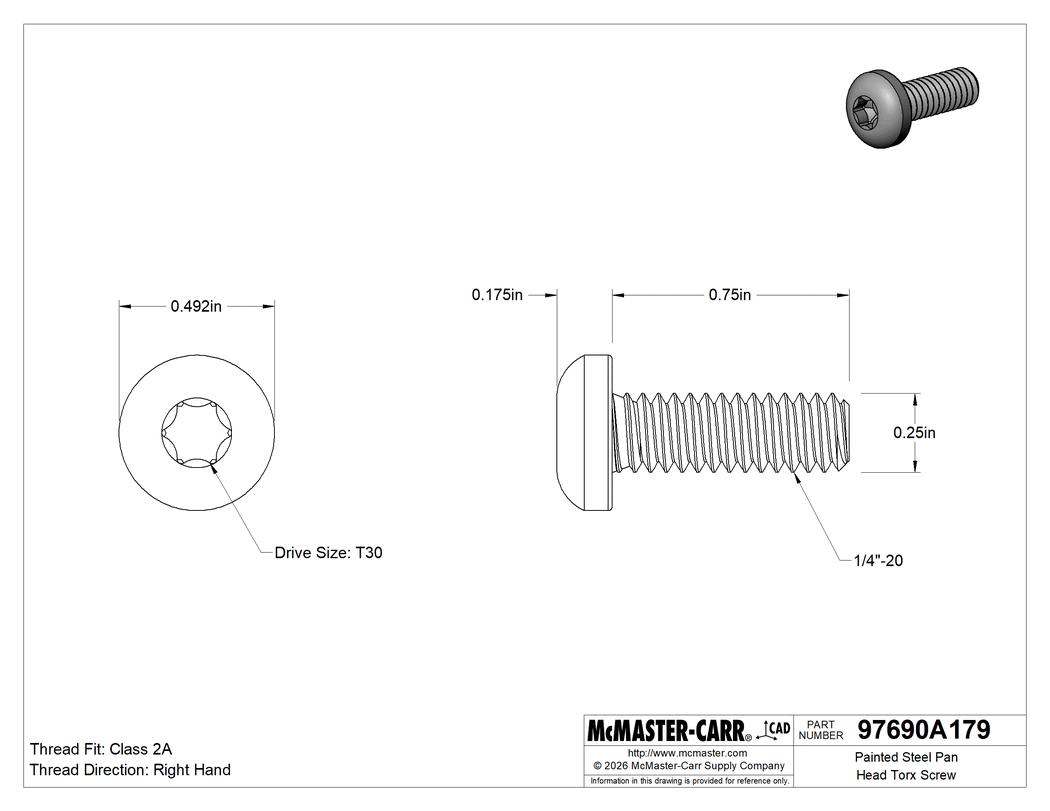

    Technical Drawing of Painted Steel Pan Head Torx Screw, with Black Head, 1/4"-20 Thread Size, 3/4" Long.
    Image of Specification. Front orientation. Painted Steel Pan Head Torx Screw, with Black Head, 1/4"-20 Thread Size, 3/4" Long.

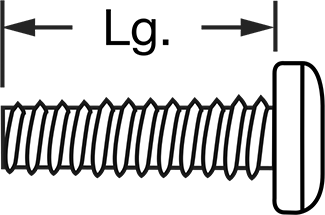

    Image of Attribute. Front orientation. Contains Annotated. Painted Steel Pan Head Torx Screw, with Black Head, 1/4"-20 Thread Size, 3/4" Long.
    2-D PDF
    00000 per pack of 10
    97690A179
    In stock
    97690A179
    00000 per pack of 10
    Pack of 10
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    1/4"-20

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    UNC

    Fit

    Unified Standard Class 2A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Pan

    Profile

    Standard

    Height

    0.175"

    Diameter

    0.492"

    Finish

    Painted

    Drive

    Style

    Torx

    Size

    T30

    Length

    3/4"

    Threading

    Fully Threaded

    Tensile Strength

    Not Rated

    Specifications Met

    ASME B18.6.3

    Certificate Form

    Digital

    Certificate Type

    Material Certificate with Traceable Lot Number

    Hardness

    Rockwell B70

    Material

    Zinc-Plated Steel

    Screw Size Decimal Equivalent

    0.250"

    System of Measurement

    Inch

    Country of Origin

    China, Taiwan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Get a grip with less slip. With a deep six-lobe opening, these screws prevent drivers from slipping and stripping drives. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.

    Length is measured from under the head.

    Zinc-Plated Steel with Black Painted Head—Add a decorative touch to your projects without the hassle of painting screws yourself. These screws are a common choice for areas with occasional exposure to moisture.

    The information in this 3-D model is provided for reference only.
