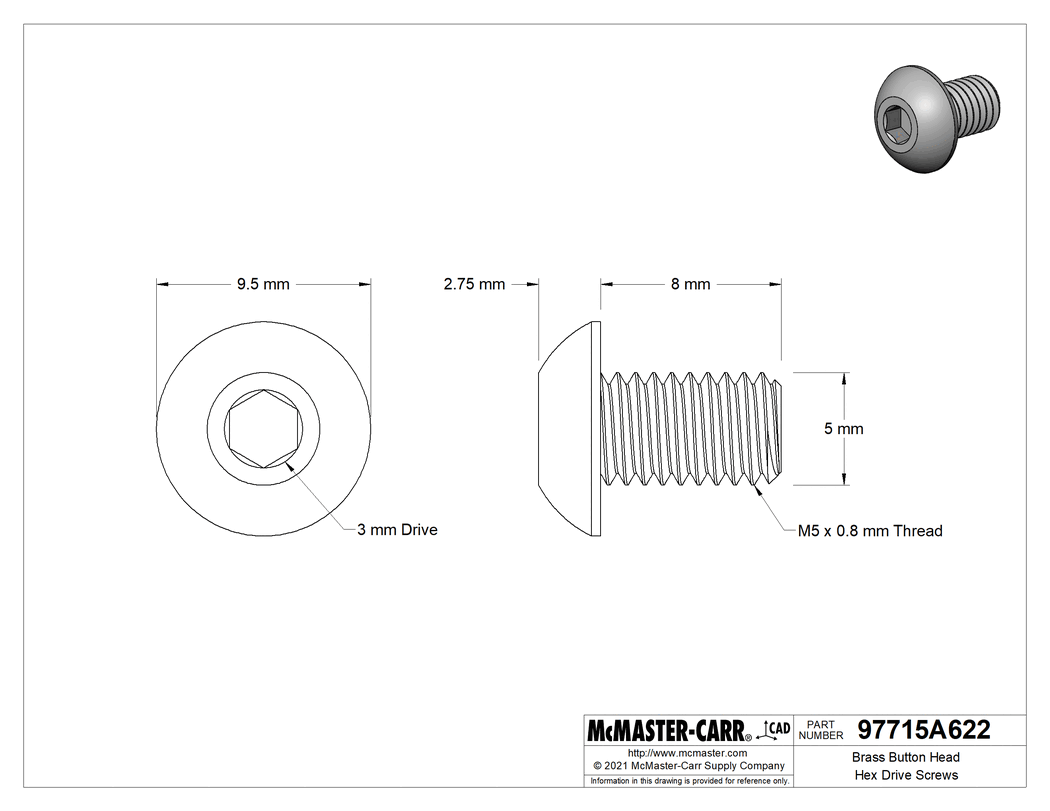

Brass Button Head Hex Drive Screws
M5 x 0.80mm Thread, 8mm Long
Thread | |
Size | M5 |
Pitch | 0.8 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 2.75 mm |
Diameter | 9.5 mm |
Drive | |
Style | Hex |
Size | 3 mm |
Material | Brass |
Length | 8 mm |
Threading | Fully Threaded |
Tensile Strength | 50,000 psi |
Hardness | Rockwell B55 |
Performance | Conductive, Corrosion Resistant, Nonmagnetic |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 741533.8550 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These button head screws have a shiny look and won't rust in damp environments. Made of brass, they're also conductive and nonmagnetic, making them useful for electrical applications. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Length is measured from under the head.

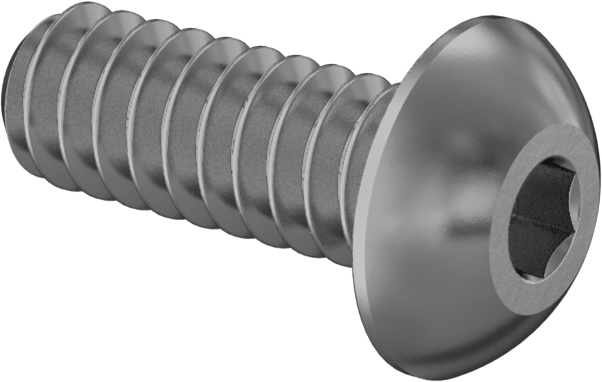

The information in this 3-D model is provided for reference only.
