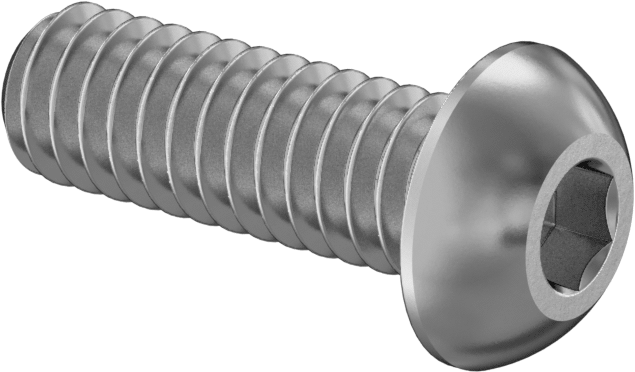

316 Stainless Steel Button Head Hex Drive Screw
Super-Corrosion-Resistant, 1/4"-20 Thread Size, 3/4" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 3A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 0.132" |
Diameter | 0.437" |
Drive | |
Style | Hex |
Size | 5/32" |
Length | 3/4" |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Specifications Met | ASME B18.3, ASTM F879 |
Hardness | Rockwell B55 |
Material | 316 Stainless Steel |
Passivation | Passivated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These button head screws won't corrode from moisture and chemicals, but they aren't as strong as alloy steel screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Length is measured from under the head.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.

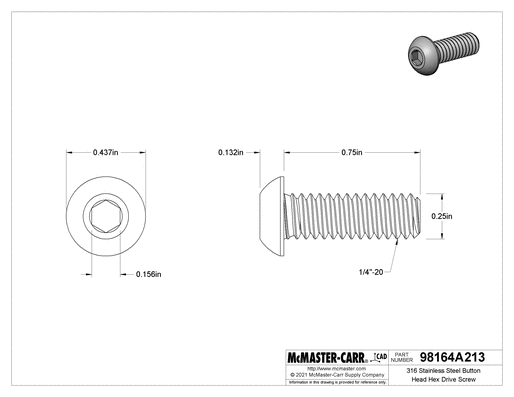

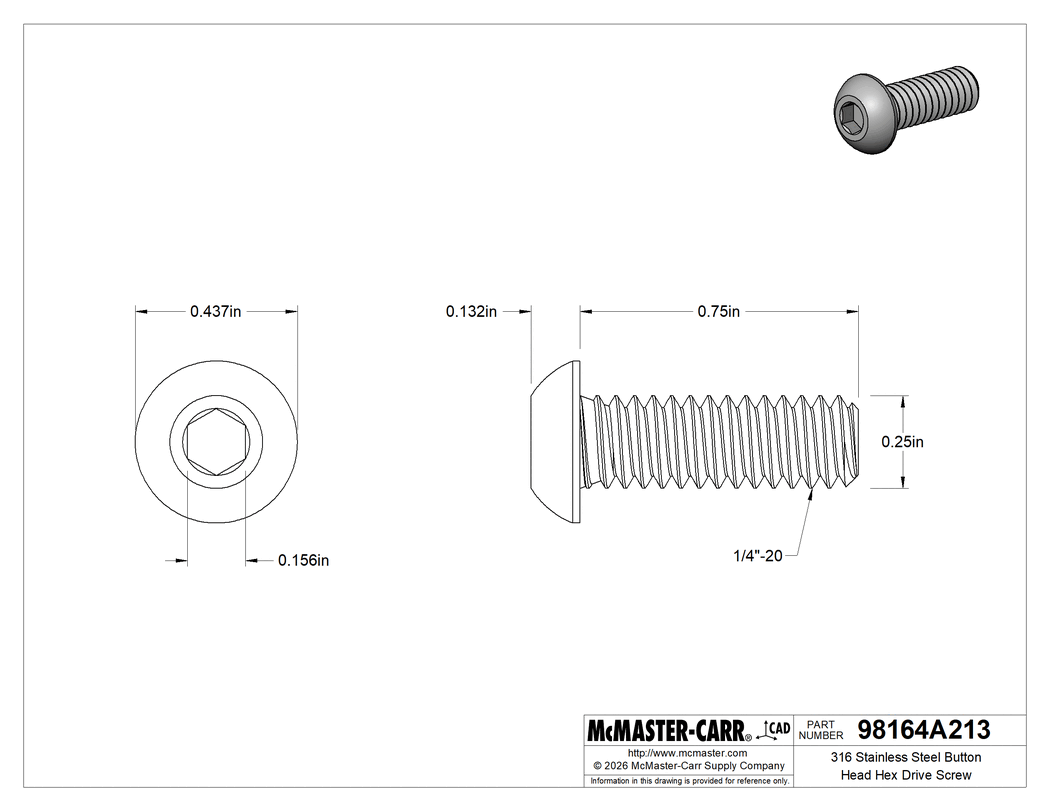

The information in this 3-D model is provided for reference only.
