Mitutoyo Electronic Calipers

All calipers have zero-position memory, also known as absolute (ABS) positioning, which retains the measuring position when the caliper is turned off. A zero-set button allows you to start measuring at any point.

USB data cable (sold separately) connects calipers with SPC data output directly to your PC.

10-pin data cables (sold separately) connect calipers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

Wireless data transmitter and receiver (sold separately) allow you to transmit measurement data from calipers with SPC data output to your PC without being tethered by a cable.

Display freeze adapter (sold separately) keeps a measurement displayed on calipers with SPC data output even if the jaw is repositioned.

Calipers

Measuring Range		Accuracy		Measuring Increments
Inch	Metric	Inch	Metric	Inch	Metric	Overall Lg.	Body Material	Jaw Material	Jaw Dp.	Batteries Included	Manufacturer Model Number		Each
With SPC Data Output
0"-18"	0 mm-450 mm	±0.002"	±0.050 mm	0.0005"	0.01 mm	24 3/4"	Stainless Steel	Stainless Steel	3 1/2"	Yes	500-505-10	00000000	0000000

Accessories

	Lg.	(Print) Package Quantity		Each
USB Data Cable	80"	__	000000	0000000
10-Pin Data Cable	40"	__	0000000	00000
10-Pin Data Cable	80"	__	00000000	00000
Wireless Data Transmitter	1 3/4"	__	000000	000000
Wireless Data Receiver	5 1/2"	__	000000	000000
Display Freeze Adapter	__	__	00000000	00000
Replacement Battery	__	1	00000000	0000

Mitutoyo Electronic Calipers with Calibration Certificate

These calipers come with a calibration certificate traceable to NIST that states they've passed a test for accuracy. All have zero-position memory, also known as absolute (ABS) positioning, which retains the measuring position when the caliper is turned off. A zero-set button allows you to start measuring at any point.

USB data cable (sold separately) connects calipers with SPC data output directly to your PC.

10-pin data cables (sold separately) connect calipers with SPC data output to a Mitutoyo miniprocessor or multiplexer.

Wireless data transmitter and receiver (sold separately) allow you to transmit measurement data from calipers with SPC data output to your PC without being tethered by a cable.

Display freeze adapter (sold separately) keeps a measurement displayed on calipers with SPC data output even if the jaw is repositioned.

Calipers

Measuring Range		Accuracy		Measuring Increments
Inch	Metric	Inch	Metric	Inch	Metric	Overall Lg.	Body Material	Jaw Material	Jaw Dp.	Batteries Included	Manufacturer Model Number		Each
With SPC Data Output
0"-18"	0 mm-450 mm	±0.002"	±0.050 mm	0.0005"	0.01 mm	24 3/4"	Stainless Steel	Stainless Steel	3 1/2"	Yes	500-505-10	00000000	0000000

Accessories

	Lg.	(Print) Package Quantity		Each
USB Data Cable	80"	__	000000	0000000
10-Pin Data Cable	40"	__	0000000	00000
10-Pin Data Cable	80"	__	00000000	00000
Wireless Data Transmitter	1 3/4"	__	000000	000000
Wireless Data Receiver	5 1/2"	__	000000	000000
Display Freeze Adapter	__	__	00000000	00000
Replacement Battery	__	1	00000000	0000

Fine-Adjustment Mitutoyo Vernier Calipers

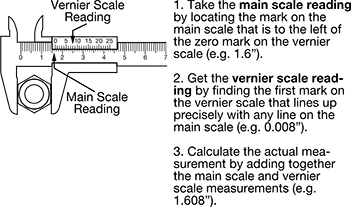

Reading a Vernier Caliper

These calipers have a mechanism which allows you to make finer adjustments. Use the graduations on the sliding vernier scale coupled with graduations on the ruler to take precise measurements.

Measuring Range		Accuracy		Measuring Increments
Inch	Metric	Inch	Metric	Inch	Metric	Overall Lg.	Body Material	Jaw Material	Jaw Dp.	Manufacturer Model No.		Each
0"-18"	0 mm-450 mm	±0.002"	±0.050 mm	0.001"	0.02 mm	24 3/4"	Stainless Steel	Stainless Steel	3 15/16"	160-151	0000000	0000000

Large-Capacity Slide Ruler Calipers

These calipers have deep jaws for measuring large-diameter objects, such as pipes, poles, and logs. Move the jaw along the ruler to take outside measurements.

Measuring Range	Min. Inside Measuring Lg.	Accuracy	Measuring Increments	Overall Lg.	Body Material	Jaw Material	Jaw Dp.		Each
0"-18"	0.1"	±0.100"	0.1"	28"	Aluminum	Aluminum	11 1/2"	00000000	0000000
