Links with Chain-Shortening Hooks—For Lifting
With One Hook
With Two Hooks
A pear-shaped link and hook for chain shortening allow you to create an adjustable-length chain sling. These links meet strict ASTM safety standards for lifting.
Note: Capacities for links with one hook are for vertical lifting only. Capacities for links with two hooks are based on two-leg sling assemblies.
For technical drawings and 3-D models, click on a part number.

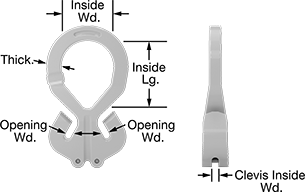

| Number of Hooks | For Straight-Link Chain Trade Size | Thick. | Inside Lg. | Inside Wd. | Hook Opening Wd. | Clevis Inside Wd. | Capacity, lbs. | Fabrication | Specifications Met | Each | |
For Grade 100 Chain | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Yellow Powder-Coated Alloy Steel | |||||||||||
| 1 | 7/32 | 19/32" | 3 15/32" | 2 3/8" | 5/16" | 5/16" | 3,300 | Forged | ASTM A952, EN 1677 | 0000000 | 000000 |
| 1 | 5/16 | 23/32" | 3 5/8" | 2 3/8" | 3/8" | 3/8" | 5,700 | Forged | ASTM A952, EN 1677 | 0000000 | 00000 |
| 1 | 3/8 | 7/8" | 4 7/16" | 2 15/16" | 15/32" | 15/32" | 8,800 | Forged | ASTM A952, EN 1677 | 0000000 | 000000 |
| 1 | 1/2 | 1 1/32" | 5 7/16" | 3 17/32" | 9/16" | 9/16" | 15,000 | Forged | ASTM A952, EN 1677 | 0000000 | 000000 |
| 1 | 5/8 | 1 7/32" | 6 3/16" | 4 1/8" | 11/16" | 11/16" | 22,600 | Forged | ASTM A952, EN 1677 | 0000000 | 000000 |
| 2 | 7/32 | 21/32" | 3 1/2" | 2 13/32" | 5/16" | 5/16" | 4,700 | Forged | ASTM A952, EN 1677 | 0000000 | 00000 |
| 2 | 5/16 | 27/32" | 3 29/32" | 3" | 3/8" | 3/8" | 9,900 | Forged | ASTM A952, EN 1677 | 0000000 | 000000 |
| 2 | 3/8 | 15/16" | 4 29/32" | 3 1/2" | 15/32" | 15/32" | 15,200 | Forged | ASTM A952, EN 1677 | 0000000 | 000000 |
| 2 | 1/2 | 1 3/16" | 5 29/32" | 4 3/32" | 9/16" | 9/16" | 26,000 | Forged | ASTM A952, EN 1677 | 0000000 | 000000 |
| 2 | 5/8 | 1 13/32" | 6 29/32" | 4 11/16" | 11/16" | 11/16" | 39,100 | Forged | ASTM A952, EN 1677 | 0000000 | 000000 |
