126 Products

0.495" Octagonal Shank Chisels for Needle Scalers

Flat Chisel Bit Blade (3/4" Wd.)

Flat Chisel Bit Blade (1 3/8" Wd.)

Flat Chisel Bit Blade (2" and 3")

Offset Chisel Bit Blade

Use with Air-Powered Needle Scalers/Chiseling Hammers.

For technical drawings and 3-D models, click on a part number.

		Shank
Blade Wd.	O'all Lg.	Type	Size	Lg.	Material	Compatible Tools		Each
Flat Chisel Bit Blade
3/4"	7"	Octagon	0.495"	51/64"	Steel	Chicago Monarch CMC-1B, Chicago Pneumatic CP 0456, Jet JAT-801, Nitto Kohki CH-24	0000000	000000
3/4"	7"	Octagon	0.495"	1 5/32"	Steel	Ingersoll-Rand 172LNA1, Ingersoll-Rand 182LNA1	0000000	00000
1 3/8"	7"	Octagon	0.495"	51/64"	Steel	Chicago Monarch CMC-1B, Chicago Pneumatic CP 0456, Jet JAT-801, Nitto Kohki CH-24	0000000	00000
1 3/8"	7"	Octagon	0.495"	1 5/32"	Steel	Ingersoll-Rand 172LNA1, Ingersoll-Rand 182LNA1	0000000	00000
1 3/8"	12"	Octagon	0.495"	51/64"	Steel	Chicago Monarch CMC-1B, Chicago Pneumatic CP 0456, Jet JAT-801, Nitto Kohki CH-24	0000000	00000
1 3/8"	12"	Octagon	0.495"	1 5/32"	Steel	Ingersoll-Rand 172LNA1, Ingersoll-Rand 182LNA1	0000000	00000
2"	7"	Octagon	0.495"	51/64"	Steel	Chicago Monarch CMC-1B, Chicago Pneumatic CP 0456, Jet JAT-801, Nitto Kohki CH-24	0000000	00000
3"	7 1/2"	Octagon	0.495"	51/64"	Steel	Chicago Monarch CMC-1B, Chicago Pneumatic CP 0456, Jet JAT-801, Nitto Kohki CH-24	0000000	00000
Offset Chisel Bit Blade
1 3/8"	7"	Octagon	0.495"	51/64"	Steel	Chicago Monarch CMC-1B, Chicago Pneumatic CP 0456, Jet JAT-801, Nitto Kohki CH-24	0000000	00000
1 3/8"	7"	Octagon	0.495"	1 5/32"	Steel	Ingersoll-Rand 172LNA1, Ingersoll-Rand 182LNA1	0000000	00000
1 3/8"	18"	Octagon	0.495"	17/32"	Steel	Ingersoll-Rand 182LNA1, Nitto Kohki CH-24	0000000	00000

Nonsparking 0.495" Octagonal Shank Chisels for Needle Scalers

Made of aluminum-bronze that is Factory Mutual approved, this chisel inhibits sparking and is nonmagnetic and corrosion resistant. It satisfies OSHA requirements that specify nonsparking tools for locations where flammable vapors and combustible residues are present. Use with Air-Powered Needle Scalers/Chiseling Hammers.

Warning: Do not use this tool in direct contact with acetylene.

			Shank
Chisel Bit Blade Type	Blade Wd.	O'all Lg.	Type	Size	Lg.		Each
Flat	2"	7 3/4"	Octagon	0.495"	5/8"	0000000	000000

7/16" Octagonal Shank Chisels for Quick-Change Chiseling Hammers

Flat Chisel Bit Blade (5/8" Wd.)

Flat Chisel Bit Blade (1 1/2" Wd.)

Offset Chisel Bit Blade

Blank Chisel Bit Blade

Scaler Blade

Use with air-powered hammers.

For technical drawings and 3-D models, click on a part number.

		Shank
Blade Wd.	O'all Lg.	Type	Size	Lg.	Material	Compatible Tools		Each
Flat Chisel Bit Blade
5/8"	4"	Octagon	7/16"	9/32"	Steel	Superior Pneumatic 90000, Superior Pneumatic 90001	0000000	000000
5/8"	7"	Octagon	7/16"	9/32"	Steel	Superior Pneumatic 90000, Superior Pneumatic 90001	0000000	00000
1 1/2"	12"	Octagon	7/16"	9/32"	Steel	Superior Pneumatic 90000, Superior Pneumatic 90001	0000000	00000
Offset Chisel Bit Blade
3/4"	3 1/2"	Octagon	7/16"	9/32"	Steel	Superior Pneumatic 90000, Superior Pneumatic 90001	0000000	00000
Blank Chisel Bit Blade
1/2"	3"	Octagon	7/16"	9/32"	Steel	Superior Pneumatic 90000, Superior Pneumatic 90001	0000000	00000
Scaler Blade
1/2"	3 1/2"	Octagon	7/16"	9/32"	Steel	Superior Pneumatic 90000, Superior Pneumatic 90001	0000000	00000

7/16" Round Shank Chisels for Quick-Change Chiseling Hammers

Use with air-powered hammers. Also known as zip gun chisels.

For technical drawings and 3-D models, click on a part number.

			Shank
Blade Style	Blade Wd.	O'all Lg.	Type	Size	Lg.	Material		Each
Point	3/8"	3 1/2"	Round	7/16"	9/32"	Steel	0000000	000000

15/32" Hex Shank Chisels for Quick-Change Chiseling Hammers

Flat Chisel Bit Blade (5/8" Wd.)

Flat Chisel Bit Blade (1" Wd.)

Flat Chisel Bit Blade (2" Wd.)

Offset Chisel Bit Blade

Blank Blade

Point Blade

Scaler Blade

Use with air-powered hammers. Also known as zip gun chisels.

For technical drawings and 3-D models, click on a part number.

		Shank
Blade Wd.	O'all Lg.	Type	Size	Lg.	Material	Compatible Tools		Each
Flat Chisel Bit Blade
5/8"	6"	Hex	15/32"	11/16"	Steel	Superior Pneumatic 120000, Superior Pneumatic 120001	0000000	000000
1"	6"	Hex	15/32"	11/16"	Steel	Superior Pneumatic 120000, Superior Pneumatic 120001	0000000	00000
2"	12"	Hex	15/32"	11/16"	Steel	Superior Pneumatic 120000, Superior Pneumatic 120001	0000000	00000
Offset Chisel Bit Blade
3/4"	7"	Hex	15/32"	11/16"	Steel	Superior Pneumatic 120000, Superior Pneumatic 120001	0000000	00000
Blank Chisel Bit Blade
5/8"	5"	Hex	15/32"	11/16"	Steel	Superior Pneumatic 120000, Superior Pneumatic 120001	0000000	00000
Point Blade
1/8"	5"	Hex	15/32"	11/16"	Steel	Superior Pneumatic 120000, Superior Pneumatic 120001	0000000	00000
Scaler Blade
5/8"	5"	Hex	15/32"	11/16"	Steel	Superior Pneumatic 120000, Superior Pneumatic 120001	0000000	00000

0.373" Round Shank Chisels for Needle Scalers

Flat Chisel Bit Blade (3/4" Wd.)

Flat Chisel Bit Blade (1 3/8" Wd.)

Flat Chisel Bit Blade (2" and 3" Wd.)

Offset Chisel Bit Blade

		Shank
Blade Wd.	O'all Lg.	Type	Size	Lg.	Material	Compatible Tools		Each
Flat Chisel Bit Blade
3/4"	7"	Round	0.373"	13/16"	Steel	Chicago Pneumatic 9356, Cleco BI-C, Ingersoll-Rand 125, Jet JSG-9121, Universal Tool 8630	00000000	000000
1 3/8"	7"	Round	0.373"	13/16"	Steel	Chicago Pneumatic 9356, Cleco BI-C, Ingersoll-Rand 125, Jet JSG-9121, Universal Tool 8630	00000000	00000
1 3/8"	12"	Round	0.373"	13/16"	Steel	Chicago Pneumatic 9356, Cleco BI-C, Ingersoll-Rand 125, Jet JSG-9121, Universal Tool 8630	00000000	00000
2"	7"	Round	0.373"	13/16"	Steel	Chicago Pneumatic 9356, Cleco BI-C, Ingersoll-Rand 125, Jet JSG-9121, Universal Tool 8630	00000000	00000
3"	7 1/2"	Round	0.373"	13/16"	Steel	Chicago Pneumatic 9356, Cleco BI-C, Ingersoll-Rand 125, Jet JSG-9121, Universal Tool 8630	00000000	00000
Offset Chisel Bit Blade
1 3/8"	7"	Round	0.373"	13/16"	Steel	Chicago Pneumatic 9356, Cleco BI-C, Ingersoll-Rand 125, Jet JSG-9121, Universal Tool 8630	00000000	00000

Air-Powered Chipping Hammers

More powerful than Air-Powered Chiseling Hammers, use these tools for heavy material removal and in foundry and fabrication shops.

Piston stroke determines the hammering power. The longer the stroke, the greater the power.

Swivel hose connectors (sold separately) eliminate cracked hoses due to kinking and broken inlet bushings. The connectors screw into the air inlet and allow hose to swivel with the hammer.

Mufflers (sold separately) cover the tool’s exhaust port to reduce sound.

Curved Grip

D-Handle Grip

				Air Inlet
Blows per Minute	Piston Stroke	Average Air Consumption, cfm	Recommended Operating Air Pressure, psi	Pipe Size	Thread Type	Gender	For Air Hose ID	For Chisel Collar Shape	O'all Lg.	Wt., lbs.	Housing Material		Each
For 0.580" Hex Chisel Shank
Curved Grip—Lever Speed Control
2,500	1"	28	90	3/8	NPT	Female	1/2"	Oval	15 1/2"	14.8	Steel	0000000	0000000
2,300	2"	28	90	3/8	NPT	Female	1/2"	Oval	16"	15.1	Steel	0000000	000000
1,725	3"	29	90	3/8	NPT	Female	1/2"	Oval	18"	16.6	Steel	0000000	000000
1,480	4"	29	90	3/8	NPT	Female	1/2"	Oval	19"	17.5	Steel	0000000	000000
D-Handle Grip—Lever Speed Control
2,450	1"	28	90	3/8	NPT	Female	1/2"	Oval	12"	16	Steel	00000000	000000
2,300	2"	28	90	3/8	NPT	Female	1/2"	Oval	14"	18	Steel	00000000	000000
2,100	3"	28	90	3/8	NPT	Female	1/2"	Oval	15 1/4"	19	Steel	00000000	000000
1,700	4"	28	90	3/8	NPT	Female	1/2"	Oval	16 1/2"	20	Steel	00000000	000000
For 0.680" Round Chisel Shank
Curved Grip—Lever Speed Control
2,500	1"	28	90	3/8	NPT	Female	1/2"	Oval	15 1/2"	14.8	Steel	0000000	000000
2,300	2"	28	90	3/8	NPT	Female	1/2"	Oval	16"	15.1	Steel	0000000	000000
1,725	3"	29	90	3/8	NPT	Female	1/2"	Oval	18"	16.6	Steel	0000000	000000
1,480	4"	29	90	3/8	NPT	Female	1/2"	Oval	19"	17.5	Steel	0000000	000000
D-Handle Grip—Lever Speed Control
2,450	1"	28	90	3/8	NPT	Female	1/2"	Oval	12"	16	Steel	00000000	000000
2,300	2"	28	90	3/8	NPT	Female	1/2"	Oval	14"	18	Steel	00000000	000000
2,100	3"	28	90	3/8	NPT	Female	1/2"	Oval	15 1/4"	19	Steel	00000000	000000
1,700	4"	28	90	3/8	NPT	Female	1/2"	Oval	16 1/2"	20	Steel	00000000	000000

Swivel Hose Connector for Curved Grip Hammers	0000000	Each	000000
Muffler for D-Handle Grip Hammer	00000000	Each	00000
Swivel Hose Connector for D-Handle Grip Hammers	00000000	Each	00000

Chisels

Point Blade

Flat Chisel Bit Blade

				Hex Shank		Round Shank
Blade Wd.	O'all Lg.	Collar Shape	Material		Each		Each
Point Blade
1/4"	9"	Oval	Steel	0000000	000000	0000000	000000
1/4"	12"	Oval	Steel	0000000	00000	0000000	00000
Flat Chisel Bit Blade
1"	9"	Oval	Steel	0000000	00000	0000000	00000
1"	12"	Oval	Steel	0000000	00000	0000000	00000
1"	18"	Oval	Steel	0000000	00000	0000000	00000
1"	24"	Oval	Steel	0000000	00000	0000000	00000
1"	36"	Oval	Steel	000000	00	0000000	00000
2"	9"	Oval	Steel	0000000	00000	0000000	00000
2"	12"	Oval	Steel	0000000	00000	0000000	00000
3"	9"	Oval	Steel	0000000	00000	0000000	00000

Replacement Parts for Curved Grip Hammers

Style	Component		Each
1	Handle	00000000	0000000
2	Throttle Lever	00000000	00000
3	Throttle Lever Pin	00000000	0000
4	Throttle Lever Stop Pin	00000000	0000
5	Throttle Valve Ball	00000000	0000
6	Throttle Valve Plunger	00000000	00000
7	Throttle Valve Plunger Bushing	00000000	00000
8	Throttle Valve Spring	00000000	0000
9	Throttle Valve Cap	00000000	00000
10	Air Strainer	00000000	00000
11	Inlet Bushing	00000000	00000
12	Valve Washer	00000000	00000
13	Valve Seat	00000000	000000
14	Valve Cap	00000000	000000
15	Valve Spacer	00000000	000000
16	Dowel Pin	00000000	00000
17	Locking Ring	00000000	00000
18	Exhaust Deflector	00000000	00000
19	Piston (for models 5957A11, A12, A15, and A16)	00000000	00000
19	Piston (for models 5957A13, A14, A17, and A18)	00000000	00000
20	Hexagon Nozzle	00000000	00000
20	Round Nozzle	00000000	00000
21	Lock Spring	00000000	0000
22	Plain Retainer	00000000	00000
23	Quick-Change Retainer for Oval Collar Chisels	00000000	00000
24	Quick-Change Retainer for Oval and Round Collar Chisels	00000000	000000

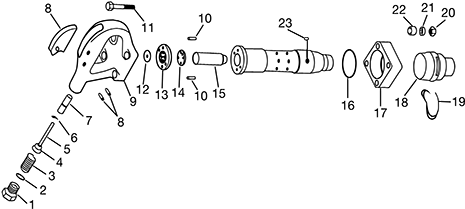

Replacement Parts for D-Handle Grip Hammers

Style	Component		Each
1	Inlet Bushing	000000000	000000
2	Inlet O-Ring	000000000	0000
3	Spring	000000000	0000
4	Throttle Valve	000000000	0000
5	Throttle Valve Pin	000000000	0000
6	Throttle Valve O-Ring	000000000	0000
7	Throttle Bushing	000000000	00000
8	Trigger and Two Valve Pins	000000000	0000
9	Handle—Includes Throttle Bushing, Trigger and Two Valve Pins	000000000	000000
10	Valve Pin	000000000	0000
11	Flange Bolt	000000000	0000
12	Disc Valve	000000000	0000
13	Seat Valve	000000000	00000
14	Valve Bumper	000000000	0000
15	1" Piston	000000000	00000
15	2" Piston	000000000	00000
15	3" Piston	000000000	00000
16	Absorbing Ring	000000000	000
17	Flange	000000000	000000
18	Retainer	00000000	00000
19	Retainer Spring	000000000	00000
20	Nyloc Nut	000000000	00000
21	Washer	000000000	0000
22	Spacer	000000000	0000
23	Plug	000000000	0000

Quick-Change Air-Powered Chiseling Hammers

Designed for fast-hitting and light striking, these hammers allow easy chisel changes—pull back on the retainer to insert or remove the chisel. Use for scaling, trimming, cutting, chipping, piercing, and peening. These tools are not suitable for driving rivets.

Piston stroke determines the hammering power. The longer the stroke, the greater the power.

Straight Grip

Pistol Grip

				Air Inlet
Blows per Minute	Piston Stroke	Average Air Consumption, cfm	Recommended Operating Air Pressure, psi	Pipe Size	Thread Type	Gender	For Air Hose ID	For Chisel Shank Type	O'all Lg.	Wt., lbs.	Housing Material	Barrel Material		Each
Straight Grip—Lever Speed Control
0 -13,000	3/4"	4	90	1/4	NPT	Female	1/4"	7/16" Octagon	7 1/4"	1.3	Aluminum	Steel	0000000	0000000
0 -9,000	1 1/4"	6	90	1/4	NPT	Female	1/4"	15/32" Hex	9 1/4"	2.3	Aluminum	Steel	0000000	000000
Pistol Grip—Button Speed Control
0 -13,000	3/4"	4	90	1/4	NPT	Female	1/4"	7/16" Octagon	6"	1.3	Aluminum	Steel	0000000	000000
0 -9,000	1 1/4"	6	90	1/4	NPT	Female	1/4"	15/32" Hex	6"	2.3	Aluminum	Steel	0000000	000000

Chisels for 0-13,000 Blows per Minute Hammers

Blank Chisel Bit Blade

Flat Chisel Bit Blade (5/8" Wd.)

Flat Chisel Bit Blade (1 1/2" Wd.)

Offset Chisel Bit Blade

Scaler Blade

Blank Chisel Bit Blade
Blade Wd.	O'all Lg.	Shank Type	Shank Lg.	Material		Each
1/2"	3"	7/16" Octagon	9/32"	Steel	0000000	000000
Flat Chisel Bit Blade
5/8"	4"	7/16" Octagon	9/32"	Steel	0000000	00000
5/8"	7"	7/16" Octagon	9/32"	Steel	0000000	00000
1 1/2"	12"	7/16" Octagon	9/32"	Steel	0000000	00000
Offset Chisel Bit Blade
3/4"	3 1/2"	7/16" Octagon	9/32"	Steel	0000000	00000
Scaler Blade
1/2"	3 1/2"	7/16" Octagon	9/32"	Steel	0000000	00000

Chisels for 0-9,000 Blows per Minute Hammers

Flat Chisel Bit Blade (5/8" Wd.)

Flat Chisel Bit Blade (1" Wd.)

Flat Chisel Bit Blade (2" Wd.)

Blank Blade

Point Blade

Scaler Blade

Flat Chisel Bit Blade
Blade Wd.	O'all Lg.	Shank Type	Shank Length	Material		Each
5/8"	6"	15/32" Hex	11/16"	Steel	0000000	000000
1"	6"	15/32" Hex	11/16"	Steel	0000000	00000
2"	12"	15/32" Hex	11/16"	Steel	0000000	00000
Offset Chisel Bit Blade
3/4"	7"	15/32" Hex	11/16"	Steel	0000000	00000
Blank Chisel Bit Blade
5/8"	5"	15/32" Hex	11/16"	Steel	0000000	00000
Point Blade
1/8"	5"	15/32" Hex	11/16"	Steel	0000000	00000
Scaler Blade
5/8"	5"	15/32" Hex	11/16"	Steel	0000000	00000

Air-Powered Scrapers/Chippers

Remove weld flux and spatter as well as perform a variety of light chipping applications.

Piston stroke determines the force of a scraper; the longer the stroke, the greater the force.

				Air Inlet				Blade			For Chisel Shank
Blows per Minute	Piston Stroke	Average Air Consumption, cfm	Recommended Operating Air Pressure, psi	Pipe Size	Thread Type	Gender	For Air Hose ID	Wd.	Lg.	Material	Type	Lg.	O'all Lg.	Wt., lbs.	Housing Material		Each
Straight Grip—Lever Speed Control
4,000	1 1/8"	7	85	3/8	NPT	Female	3/8"	1"	6 1/8"	Steel	0.495" Octagon	17/32", 51/64"	12"	3.8	Steel	0000000	0000000

Optional Chisels

Flat Chisel Bit Blade (3/4" Wd.)

Flat Chisel Bit Blade (1 3/8" Wd.)

Flat Chisel Bit Blade (2" and 3")

Offset Chisel Bit Blade

Flat Chisel Bit Blade
Blade Wd.	O'all Lg.	Shank Lg.	Material		Each
3/4"	7"	51/64"	Steel	0000000	000000
1 3/8"	7"	51/64"	Steel	0000000	00000
1 3/8"	12"	51/64"	Steel	0000000	00000
2"	7"	51/64"	Steel	0000000	00000
3"	7 1/2"	51/64"	Steel	0000000	00000
Offset Chisel Bit Blade
1 3/8"	7"	51/64"	Steel	0000000	00000
1 3/8"	18"	17/32"	Steel	0000000	00000
