How to Identify and Measure Fittings
Pipe size is an industry designation, not the actual size. View information about how to measure threaded and unthreaded pipe and pipe fittings.
More
Cleanout Plugs

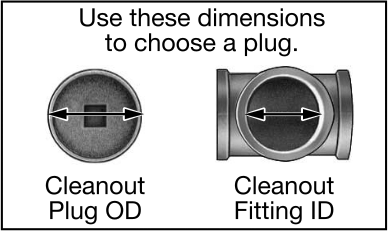

Close off your drain cleanout pipe with these threaded plugs. Note: If you do not know your pipe size, measure the OD of your existing cleanout plug or the ID of your cleanout fitting and match to the value listed.
Recessed | Raised | |||||
|---|---|---|---|---|---|---|
| For Pipe Size | Thread Type | Cleanout Plug OD/Fitting ID | Each | Each | ||
Brass | ||||||
1 1/2 | NPT | 1 7/8" | 0000000 | 000000 | 0000000 | 000000 |
| 2 | NPT | 2 3/8" | 0000000 | 00000 | 0000000 | 00000 |
| 2 1/2 | NPT | 2 27/32" | 000000 | 00 | 0000000 | 00000 |
| 3 | NPT | 3 15/32" | 0000000 | 00000 | 0000000 | 00000 |
| 3 1/2 | NPT | 3 31/32" | 0000000 | 00000 | 0000000 | 00000 |
| 4 | NPT | 4 15/32" | 0000000 | 00000 | 0000000 | 00000 |
| 4 1/2 | NPT | 4 31/32" | 0000000 | 00000 | 0000000 | 00000 |
| 5 | NPT | 5 17/32" | 0000000 | 00000 | 0000000 | 00000 |
| 5 1/2 | NPT | 6" | 0000000 | 00000 | 0000000 | 00000 |
| 6 | NPT | 6 19/32" | 0000000 | 00000 | 0000000 | 00000 |
Black ABS Plastic | ||||||
| 1 1/2 | NPT | 1 7/8" | 0000000 | 0000 | 000000 | 00 |
| 2 | NPT | 2 3/8" | 0000000 | 0000 | 000000 | 00 |
| 2 1/2 | NPT | 2 27/32" | 0000000 | 0000 | 000000 | 00 |
| 3 | NPT | 3 15/32" | 0000000 | 0000 | 000000 | 00 |
| 3 1/2 | NPT | 3 31/32" | 0000000 | 0000 | 000000 | 00 |
| 4 | NPT | 4 15/32" | 0000000 | 0000 | 000000 | 00 |
| 4 1/2 | NPT | 4 31/32" | 0000000 | 0000 | 000000 | 00 |
| 6 | UNC | 6 19/32" | 0000000 | 00000 | 000000 | 00 |
| Driver for Recessed Plugs | 000000 | Each | 000000 |
Drain Cleanout Hole Covers
Allow easy access to cleanout plugs hidden behind walls and floors.
Wall covers come with a screw to hold the cover in place.
| Dia. | Thick. | Material | Mounting Fasteners Included | Cap., lbs. | Bolt Lg. | Screw Lg. | Each | |
Wall | ||||||||
|---|---|---|---|---|---|---|---|---|
| 3" | 1/32" | 430 Stainless Steel | Yes | __ | __ | 2 1/4" | 0000000 | 00000 |
| 4" | 1/32" | 430 Stainless Steel | Yes | __ | __ | 2 1/4" | 0000000 | 0000 |
| 5" | 1/32" | 430 Stainless Steel | Yes | __ | __ | 2 1/4" | 0000000 | 00000 |
| 6" | 1/32" | 430 Stainless Steel | Yes | __ | __ | 2 1/4" | 0000000 | 00000 |
| 8" | 1/32" | 430 Stainless Steel | Yes | __ | __ | 2 1/4" | 0000000 | 00000 |
Floor | ||||||||
| 5 1/8" | 3/16" | Nickel Alloy | Yes | 2,400 | 1 1/2" | __ | 0000000 | 00000 |
| 6 1/8" | 1/4" | Nickel Alloy | Yes | 2,400 | 1 1/2" | __ | 0000000 | 00000 |
| 8 3/8" | 1/4" | Nickel Alloy | Yes | 2,400 | 1 1/2" | __ | 0000000 | 000000 |
Underground PVC Pipe Fittings for Drain, Waste, and Vent
- For Use With: Water
- Max. Temperature: 140° F
- Specifications Met: ASTM D2729, ASTM D3034
With thinner walls than Schedule 40 fittings, these are lighter in weight and have more space on the inside for high-flow applications, such as underground gravity-flow sewer and storm drainage lines. They are also known as SDR 35 fittings. Fittings are PVC, which has good corrosion resistance. Fittings meet ASTM D2729 and ASTM D3034 specifications and testing requirements for material quality.
Warning: Never use plastic pipe fittings and pipe with compressed air or gas.
Sealants cannot be sold to the listed regions due to local VOC (Volatile Organic Compounds) regulations.
For technical drawings and 3-D models, click on a part number.
To prevent leaks in threaded connections, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic threaded connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.
.
Aboveground Standard-Wall PVC Pipe
Fittings for Drain, Waste, and Vent
- For Use With: Water
- Max. Temperature: 140° F
- Specifications Met: ASTM D1784, ASTM D2665
- Pipe Nipples and Pipe: Use Schedule 40 PVC Plastic
- Flanges: Use Schedule 40 PVC Plastic
These Schedule 40 fittings are the industry standard for gravity-flow drain, waste, and vent (DWV) applications. Fittings are PVC, which has good corrosion resistance. They meet ASTM D1784 and ASTM D2665 specifications and testing requirements for material quality.
Warning: Never use plastic pipe fittings and pipe with compressed air or gas.
Sealants cannot be sold to the listed regions due to local VOC (Volatile Organic Compounds) regulations.
For technical drawings and 3-D models, click on a part number.
To prevent leaks in threaded connections, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic threaded connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.
.
Quick-Open Duct Access Panels
The panels open and close by turning the knobs. Also known as cleanouts, panels cover cutouts in duct to provide access for inspection and cleaning. All have a gasket to create a tight seal. Use the included template to make the cutout.
Style C panels have an observation view port that lets you quickly see if dust or debris is blocking the airflow in your duct without having to open the panel.
Black-coated steel panels are often used in grease duct applications. While they stand up to grease, they are not corrosion resistant.
Galvanized steel panels have good corrosion resistance.
304 stainless steel panels are more corrosion resistant than galvanized steel panels.
For technical drawings and 3-D models, click on a part number.
For Duct | For Cutout | Opening | Temp. Range, °F | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Ht. | Wd. | Ht. | Wd. | Gauge | Min. | Max. | Features | Mount Type | Each | ||
Black-Coated Steel Panel and Frame | |||||||||||||
| A | 10" | 14" | 6" | 10" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 0000000 |
| A | 12" | 16" | 8" | 12" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| A | 18" | 22" | 14" | 18" | __ | __ | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| B | 8" | 12" | 4" | 8" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| B | 16" | 20" | 12" | 16" | __ | __ | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
Galvanized Steel Panel and Black-Coated Steel Frame | |||||||||||||
| A | 10" | 14" | 6" | 10" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| A | 12" | 16" | 8" | 12" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| A | 16" | 20" | 12" | 16" | __ | __ | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| A | 18" | 22" | 14" | 18" | __ | __ | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| B | 8" | 12" | 4" | 8" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| B | 22" | 28" | 18" | 24" | __ | __ | 18 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
Galvanized Steel Panel and Frame | |||||||||||||
| A | 8" | 12" | 4" | 8" | __ | __ | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| A | 10" | 14" | 6" | 10" | __ | __ | 22 | -20° | 200° | Insulated Backing | Clamp On | 0000000 | 00000 |
| A | 12" | 16" | 8" | 12" | __ | __ | 22 | -20° | 200° | Insulated Backing | Clamp On | 0000000 | 00000 |
| A | 18" | 22" | 14" | 18" | __ | __ | 20 | -20° | 200° | Insulated Backing | Clamp On | 0000000 | 000000 |
| B | 16" | 20" | 12" | 16" | __ | __ | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| B | 22" | 28" | 18" | 24" | __ | __ | 18 | -20° | 200° | Insulated Backing | Clamp On | 0000000 | 000000 |
| C | 10" | 14" | 6" | 10" | 2 5/8" | 4" | 22 | -20° | 200° | Observation View Port | Clamp On | 00000000 | 00000 |
| C | 16" | 20" | 12" | 16" | 8" | 8" | 22 | -20° | 200° | Insulated Backing, Observation View Port | Clamp On | 00000000 | 000000 |
304 Stainless Steel Panel and Frame | |||||||||||||
| A | 10" | 14" | 6" | 10" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| A | 12" | 16" | 8" | 12" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| A | 18" | 22" | 14" | 18" | __ | __ | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| B | 8" | 12" | 4" | 8" | __ | __ | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| B | 8" | 12" | 4" | 8" | __ | __ | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| B | 10" | 14" | 6" | 10" | __ | __ | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| B | 12" | 16" | 8" | 12" | __ | __ | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| B | 16" | 20" | 12" | 16" | __ | __ | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| B | 16" | 20" | 12" | 16" | __ | __ | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| B | 18" | 22" | 14" | 18" | __ | __ | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| C | 10" | 14" | 6" | 10" | 2 5/8" | 4" | 22 | -20° | 200° | Observation View Port | Clamp On | 00000000 | 000000 |
| C | 16" | 20" | 12" | 16" | 8" | 8" | 22 | -20° | 200° | Insulated Backing, Observation View Port | Clamp On | 0000000 | 000000 |
For Cutout | Temp. Range, °F | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Duct Trade Size | Ht. | Wd. | Gauge | Min. | Max. | Features | Mount Type | Each | ||
Black-Coated Steel Panel and Frame | ||||||||||
| D | 5-6 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 0000000 |
| D | 7-9 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 10-11 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 10-11 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 12-14 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 12-14 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 15-16 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 15-16 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 17-18 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 17-18 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 19-20 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 19-20 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 21-22 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 23-24 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 25-28 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 29-32 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 0000000 | 000000 |
| D | 33-36 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
Galvanized Steel Panel and Black-Coated Steel Frame | ||||||||||
| D | 5-6 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 0000000 | 000000 |
| D | 7-9 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 10-11 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 10-11 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 12-14 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 12-14 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 15-16 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 15-16 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 17-18 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 17-18 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 0000000 | 000000 |
| D | 19-20 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 19-20 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 21-22 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 23-24 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 25-28 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 29-32 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 29-32 | 18" | 24" | 18 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 33-36 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 33-36 | 18" | 24" | 18 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 37-40 | 18" | 24" | 18 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 41-44 | 18" | 24" | 18 | Not Rated | 2300° | __ | Clamp On | 0000000 | 000000 |
| D | 45-48 | 18" | 24" | 18 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 49-52 | 18" | 24" | 18 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 53-56 | 18" | 24" | 18 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 57-62 | 18" | 24" | 18 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
Galvanized Steel Panel and Frame | ||||||||||
| D | 5-6 | 4" | 8" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| D | 6-7 | 6" | 10" | 22 | -20° | 200° | Insulated Backing | Clamp On | 000000 | 00000 |
| D | 7-9 | 4" | 8" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| D | 8-9 | 6" | 10" | 22 | -20° | 200° | Insulated Backing | Clamp On | 000000 | 00000 |
| D | 10-11 | 4" | 8" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| D | 10-11 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| D | 10-12 | 6" | 10" | 22 | -20° | 200° | Insulated Backing | Clamp On | 000000 | 00000 |
| D | 12-14 | 4" | 8" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| D | 12-14 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 0000000 | 00000 |
| D | 13-14 | 6" | 10" | 22 | -20° | 200° | Insulated Backing | Clamp On | 000000 | 00000 |
| D | 15-16 | 6" | 10" | 22 | -20° | 200° | Insulated Backing | Clamp On | 000000 | 00000 |
| D | 15-16 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| D | 15-16 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 17-18 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| D | 17-18 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 17-20 | 6" | 10" | 22 | -20° | 200° | Insulated Backing | Clamp On | 000000 | 00000 |
| D | 19-20 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 00000 |
| D | 19-20 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 21-22 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 21-24 | 6" | 10" | 22 | -20° | 200° | Insulated Backing | Clamp On | 000000 | 00000 |
| D | 23-24 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 24-28 | 6" | 10" | 22 | -20° | 200° | Insulated Backing | Clamp On | 000000 | 00000 |
| D | 25-28 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 29-32 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 0000000 | 000000 |
| D | 29-32 | 18" | 24" | 18 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 33-36 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 33-36 | 18" | 24" | 18 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 37-40 | 18" | 24" | 18 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 41-44 | 18" | 24" | 18 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 45-48 | 18" | 24" | 18 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 49-52 | 18" | 24" | 18 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 53-56 | 18" | 24" | 18 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 57-62 | 18" | 24" | 18 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
304 Stainless Steel Panel and Frame | ||||||||||
| D | 5-6 | 4" | 8" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 5-6 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 7-9 | 4" | 8" | 22 | -20° | 200° | Insulated Backing | Clamp On | 0000000 | 000000 |
| D | 7-9 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 10-11 | 4" | 8" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 10-11 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 10-11 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 10-11 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 0000000 | 000000 |
| D | 12-14 | 4" | 8" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 12-14 | 4" | 8" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 12-14 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 12-14 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 15-16 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 15-16 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 15-16 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 15-16 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 17-18 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 17-18 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 17-18 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 17-18 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 19-20 | 8" | 12" | 22 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 19-20 | 8" | 12" | 22 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 19-20 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 0000000 | 000000 |
| D | 19-20 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 21-22 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 21-22 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 23-24 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 23-24 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 25-28 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 25-28 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 0000000 | 000000 |
| D | 29-32 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 29-32 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
| D | 33-36 | 12" | 16" | 20 | -20° | 200° | Insulated Backing | Clamp On | 00000000 | 000000 |
| D | 33-36 | 12" | 16" | 20 | Not Rated | 2300° | __ | Clamp On | 00000000 | 000000 |
Duct Access Panels
Also known as cleanouts, panels cover cutouts in duct to provide access for inspection and cleaning.
For technical drawings and 3-D models, click on a part number.
Square-Head Expansion Plugs
Turn the square head of the plug into the sealing ring to close off pipe openings. Maximum air back pressure is the amount of pressure a plug can withstand without moving. Maximum water back pressure refers to the pressure resulting from the height of the water above the plug.
For Pipe | Max. Back Pressure | |||||||
|---|---|---|---|---|---|---|---|---|
| Size | ID | Air, psi | Water, ft. of head | O'all Ht. | Temp. Range, °F | Seal Material | Each | |
Plastic Head | ||||||||
| 1 1/2 | 1.61"-1.71" | 21 | 50 | 2" | 35° to 210° | PVC | 00000000 | 00000 |
| 2 | 2.07"-2.16" | 21 | 50 | 2" | 35° to 210° | PVC | 00000000 | 0000 |
| 3 | 3.07"-3.16" | 21 | 50 | 2" | 35° to 210° | PVC | 00000000 | 0000 |
| 4 | 4.03"-4.12" | 21 | 50 | 2" | 35° to 210° | Polyurethane Rubber | 00000000 | 00000 |
| 6 | 6.07"-6.16" | 13 | 30 | 2" | 35° to 210° | Polyurethane Rubber | 00000000 | 00000 |
Cleanout Plug Wrenches
Use this tool to install and remove recessed-head cleanout plugs.
| Tip Lg. (Wd.) | Overall Lg. | Material | Color | Each | |
| 1 1/2" (1/2"), 1 1/4" (1 1/4"), 1" (1"), 1 1/8" (3/8"), 1 1/2" (1 1/2"), 7/8" (7/8") | 5 3/4" | Powder-Coated Iron | Red | 000000 | 000000 |
