48 Products

Build-Your-Own Wire, Cable, and Cord Length Measurers

Combine a counter, feeder reel, coiler reel, and stand to create a wire, cable, and cord length measurer.

Counters measure material as you thread it through the internal wheels. These counters add and subtract. Mount them on a pedestal or floor stand (sold separately). Urethane-coated wheels are for PTFE-coated wire and fiber-optic cable.

Counters

Counter for Cord and Rope

Counter for Wire

Counter for Wire with Cutter

Counter for Wire, Cable, and Hose

Steel Wheel
For Use With	Unit of Measure	Max. Lg. Measured, ft.	Includes	Material OD		Each
Cord, Rope	Feet, Inches	9,999	__	1/4"-3/4"	0000000	0000000
Wire	Feet, Inches	9,999	__	1/64"-1/2"	0000000	000000
Wire	Feet, Inches	9,999	Cutter	1/64"-1/2"	0000000	000000
Wire, Cable, Hose	Feet, Inches	99,999	__	1/2"-2"	0000000	00000000
Urethane-Coated Steel Wheel
Wire	Feet, Inches	9,999	__	1/64"-1/2"	0000000	00000000
Wire	Feet, Inches	9,999	Cutter	1/64"-1/2"	0000000	00000000
Wire, Cable, Hose	Feet, Inches	99,999	__	1/2"-2"	0000000	00000000

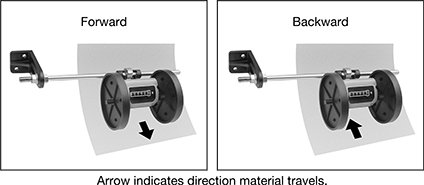

Flat-Material Length Measurers

Backward Material Travel

Forward Material Travel

Measure sheets, rolls, and strips using these wheels and their attached counters.

Aluminum wheels are for high temperature processes and coarse materials such as sandpaper. The surface is knurled for good contact.

Plastic wheels are for smooth materials such as paper and cloth.

For technical drawings and 3-D models, click on a part number.

Measurers

One Wheel

Two Wheels

Measurers
	Max.				Overall			Mounting Holes						Replacement Wheels		Replacement Counters
Material Travel Direction	Lg. Measured	Speed, ft./min.	Wheel Circumference	Tread Wd.	Lg.	Wd.	Ht.	No.	Dia.	Ctr.-to-Ctr. Distance	Functions		Each		Each		Each
Feet
One Aluminum Wheel
Backward	999,999 ft.	3,000	12"	5/8"	3 13/16"	19"	6 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	0000000	0000000	0000000	0000000	0000000
Forward	999,999 ft.	3,000	12"	5/8"	3 13/16"	19"	6 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	000000	0000000	000000
Two Aluminum Wheels
Backward	999,999 ft.	4,500	18"	5/8"	5 3/4"	19"	7 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	000000	0000000	000000
Forward	999,999 ft.	4,500	18"	5/8"	5 3/4"	19"	7 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	000000	0000000	000000
One Plastic Wheel with Rubber Tread
Backward	999,999 ft.	3,000	12"	5/8"	3 13/16"	19"	6 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	00000	0000000	000000
Forward	999,999 ft.	3,000	12"	5/8"	3 13/16"	19"	6 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	00000	0000000	000000
Two Plastic Wheels with Rubber Tread
Backward	999,999 ft.	4,500	18"	5/8"	5 3/4"	19"	7 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	00000	0000000	000000
Forward	999,999 ft.	4,500	18"	5/8"	5 3/4"	19"	7 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	00000	0000000	000000
Feet/Inches
One Aluminum Wheel
Backward	999,999 ft.	3,000	12"	5/8"	3 13/16"	19"	6 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	000000	0000000	000000
Forward	999,999 ft.	3,000	12"	5/8"	3 13/16"	19"	6 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	000000	0000000	000000
One Plastic Wheel with Rubber Tread
Backward	999,999 ft.	3,000	12"	5/8"	3 13/16"	19"	6 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	00000	0000000	000000
Forward	999,999 ft.	3,000	12"	5/8"	3 13/16"	19"	6 1/2"	2	3/8"	1 1/2"	Adds Subtracts Zero Reset	0000000	000000	0000000	00000	0000000	000000

Repair Kits

Includes		Each
Handle, Shaft, Springs	0000000	00000

Replacement Parts

Component	Includes		Each
Counter Mounting Bracket	__	0000000	000000
Measurer Mounting Bracket	__	0000000	00000
Mounting Kit	Counter Mounting Bracket, Lug, Measurer Mounting Bracket, Rod	0000000	000000

Wire Length Measurers

Bench Mount

Floor Mount

Feed wire through the wheels inside the included counter to take measurements. The counter adds and subtracts. Wind your wire around adjustable pins on the feeder reel, or place spooled wire on the 1/2" diameter spindle. Gather it on the coiler reel once it has passed through the counter. Coiler reels have a hand crank and collapse for storage.

Urethane-coated wheels are for PTFE-coated wire and fiber-optic cable.

				Feeder Reel			Coiler Reel
Mounting Location	Max. Lg. Measured	Includes	Material OD	Max. Coil OD	Coil ID	Weight Cap.	Coil ID	Coil Cap.	Weight Cap.	Pedestal Ht.	Floor Stand Ht.		Each
Feet/Inches
Steel
Bench	9,999 ft.	Counter, Feeder Reel, Coiler Reel, Three Bench-Mount Pedestals	1/64"-1/2"	15"	6 1/2"-10 1/2"	75 lbs.	12"	500' of 1/2" Dia. Materials	125 lbs.	14"	__	0000000	000000000
Bench	9,999 ft.	Counter, Feeder Reel, Coiler Reel, Three Bench-Mount Pedestals	1/64"-1/2"	24"	6 1/2"-18 1/2"	150 lbs.	12"	500' of 1/2" Dia. Materials	125 lbs.	14"	__	0000000	00000000
Floor	9,999 ft.	Counter, Feeder Reel, Coiler Reel, Floor Stand, Two Pedestals	1/64"-1/2"	24"	6 1/2"-18 1/2"	150 lbs.	12"	500' of 1/2" Dia. Materials	125 lbs.	14"	22"	0000000	00000000
Urethane-Coated Steel
Bench	9,999 ft.	Counter, Feeder Reel, Coiler Reel, Three Bench-Mount Pedestals	1/64"-1/2"	15"	6 1/2"-10 1/2"	75 lbs.	12"	500' of 1/2" Dia. Materials	125 lbs.	14"	__	0000000	00000000
Bench	9,999 ft.	Counter, Feeder Reel, Coiler Reel, Three Bench-Mount Pedestals	1/64"-1/2"	24"	6 1/2"-18 1/2"	150 lbs.	12"	500' of 1/2" Dia. Materials	125 lbs.	14"	__	0000000	00000000
Floor	9,999 ft.	Counter, Feeder Reel, Coiler Reel, Floor Stand, Two Pedestals	1/64"-1/2"	24"	6 1/2"-18 1/2"	150 lbs.	12"	500' of 1/2" Dia. Materials	125 lbs.	14"	22"	0000000	00000000

Distance-Measuring Wheels

Roll these wheels along a surface to measure distances up to 99,999 feet. Choose 36" circumference and larger wheels for measuring uneven surfaces.

Style E operates on a nonreplaceable battery with a minimum 10 year life.

Measuring Wheels
		Wheel						Batteries				Replacement Batteries
Style	Max. Distance	Circumference	Material	Tread Material	O'all Lg.	Folded Lg.	Functions	Required	Included		Each		Pkg.
Inches/Feet
A	9,999 ft.	12"	Plastic	Rubber	36 1/2"	18"	Adds, Zero Reset	No	No	0000000	000000	000000	00
B	9,999 ft.	12"	Plastic	Rubber	36 1/2"	18"	Adds, Zero Reset	No	No	0000000	00000	000000	00
C	9,999 ft.	39"	Aluminum	Rubber	42 1/2"	24"	Zero Reset	No	No	0000000	00000	000000	00
Feet
D	99,999 ft.	36"	Steel	Rubber	44"	23"	Adds, Zero Reset	No	No	0000000	000000	000000	00
D	99,999 ft.	48"	Steel	Rubber	44"	23"	Adds, Zero Reset	No	No	0000000	000000	000000	00
Feet/Meters/Yards
E	9,999 ft.	39 3/8"	Plastic	Rubber	40"	27"	Zero Reset	Yes	Yes	0000000	000000	000000	00
Inches/Feet/Meters
F	99,999 ft.	48"	Steel	Rubber	43"	22"	Calculates Area, Permanent Memory, Zero Reset	Yes	No	0000000	000000	00000000	00000

Optional Fabric Carrying Case for Styles C & D

000000

Each

000000
