Space-Saver Crossover Bridges
Set at a steeper angle than our other crossover bridges, these bridges require less floor space. Use them to walk over conveyors, machines, and pipes.
You are responsible for adhering to local, state, and federal safety codes, including OSHA.
Note: The number of steps listed is the number of steps on each side including platform.
Serrated steps offer excellent slip resistance and an open-grid design that allows dirt and liquids to fall through.
Diamond-plate steps also provide slip resistance but do not allow anything to fall through.
Overall | Ground Clearance | Platform | Step | Mounting Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. (A) | Wd. (B) | Dp. (C) | Ht. (D) | Dp. (E) | Ht. | Wd. | Dp. | Wd. | Dp. | Cap., lbs. | No. of Steps | Handrail Ht. | Mounting Hardware Included | No. of | Dia. | Assembled or Unassembled | Each | |
Gray Powder-Coated Steel | ||||||||||||||||||
Serrated Steps | ||||||||||||||||||
| 6'2" | 29" | 4'6" | 2'6" | 25 9/16" | 2'8" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 000000000 |
| 6'2" | 29" | 5'5" | 2'6" | 37 5/16" | 2'8" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'10" | 29" | 5'0" | 3'2" | 25 9/16" | 3'4" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'10" | 29" | 5'11" | 3'2" | 37 5/16" | 3'4" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 7'6" | 29" | 5'5" | 3'10" | 25 9/16" | 4' | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 7'6" | 29" | 6'5" | 3'10" | 37 5/16" | 4' | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 8'2" | 29" | 5'11" | 4'6" | 25 9/16" | 4'8" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 8'2" | 29" | 6'11" | 4'6" | 37 5/16" | 4'8" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
Diamond-Plate Steps | ||||||||||||||||||
| 6'2" | 29" | 4'6" | 2'6" | 25 9/16" | 2'8" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'2" | 29" | 5'5" | 2'6" | 37 5/16" | 2'8" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'10" | 29" | 5'0" | 3'2" | 25 9/16" | 3'4" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'10" | 29" | 5'11" | 3'2" | 37 5/16" | 3'4" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 7'6" | 29" | 5'5" | 3'10" | 25 9/16" | 4' | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 7'6" | 29" | 6'5" | 3'10" | 37 5/16" | 4' | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 8'2" | 29" | 5'11" | 4'6" | 25 9/16" | 4'8" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 8'2" | 29" | 6'11" | 4'6" | 37 5/16" | 4'8" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
Corrosion-Resistant Space-Saver Crossover Bridges
Aluminum is a good choice for damp areas and outdoor use. Set at a steeper angle than our other crossover bridges, these bridges require less floor space. Use them to walk over conveyors, machines, and pipes.
You are responsible for adhering to local, state, and federal safety codes, including OSHA.
Note: The number of steps listed is the number of steps on each side including platform.
Serrated steps offer excellent slip resistance and an open-grid design that allows dirt and liquids to fall through.
Diamond-plate steps also provide slip resistance but do not allow anything to fall through.
Overall | Ground Clearance | Platform | Step | Mounting Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. (A) | Wd. (B) | Dp. (C) | Ht. (D) | Dp. (E) | Ht. | Wd. | Dp. | Wd. | Dp. | Cap., lbs. | No. of Steps | Handrail Ht. | Mounting Hardware Included | No. of | Dia. | Assembled or Unassembled | Each | |
Aluminum  | ||||||||||||||||||
Serrated Steps | ||||||||||||||||||
| 6'2" | 29" | 4'6" | 2'6" | 25 9/16" | 2'8" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 000000000 |
| 6'2" | 29" | 5'5" | 2'6" | 37 5/16" | 2'8" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'10" | 29" | 5'0" | 3'2" | 25 9/16" | 3'4" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'10" | 29" | 5'11" | 3'2" | 37 5/16" | 3'4" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 7'6" | 29" | 5'5" | 3'10" | 25 9/16" | 4' | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 7'6" | 29" | 6'5" | 3'10" | 37 5/16" | 4' | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 8'2" | 29" | 5'11" | 4'6" | 25 9/16" | 4'8" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 8'2" | 29" | 6'11" | 4'6" | 37 5/16" | 4'8" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
Diamond-Plate Steps | ||||||||||||||||||
| 6'2" | 29" | 4'6" | 2'6" | 25 9/16" | 2'8" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'2" | 29" | 5'5" | 2'6" | 37 5/16" | 2'8" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'10" | 29" | 5'0" | 3'2" | 25 9/16" | 3'4" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 6'10" | 29" | 5'11" | 3'2" | 37 5/16" | 3'4" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 7'6" | 29" | 5'5" | 3'10" | 25 9/16" | 4' | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 7'6" | 29" | 6'5" | 3'10" | 37 5/16" | 4' | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 8'2" | 29" | 5'11" | 4'6" | 25 9/16" | 4'8" | 24" | 33" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
| 8'2" | 29" | 6'11" | 4'6" | 37 5/16" | 4'8" | 24" | 44" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | 00000000 | 00000000 |
Crossover Bridges
Use these bridges to walk over conveyors, machines, and pipes.
Note: The number of steps listed is the number of steps on each side including platform.
Serrated steps offer excellent slip resistance and an open-grid design that allows dirt and liquids to fall through.
Diamond-plate steps also provide slip resistance but do not allow anything to fall through.
Note: Crossover bridges meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
Overall | Ground Clearance | Platform | Step | Mounting Holes | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. (A) | Wd. (B) | Dp. (C) | Ht. (D) | Dp. (E) | Ht. | Wd. | Dp. | Wd. | Dp. | Cap., lbs. | No. of Steps | Handrail Ht. | Mounting Hardware Included | No. of | Dia. | Assembled or Unassembled | Specifications Met | Each | |
Gray Powder-Coated Steel | |||||||||||||||||||
Serrated Steps | |||||||||||||||||||
| 6'2" | 29" | 6'6" | 2'6" | 24 7/8" | 2'8" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 000000000 |
| 6'2" | 29" | 7'6" | 2'6" | 36 5/8" | 2'8" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 6'10" | 29" | 7'7" | 3'2" | 24 7/8" | 3'4" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 6'10" | 29" | 8'7" | 3'2" | 36 5/8" | 3'4" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 7'6" | 29" | 8'9" | 3'10" | 24 7/8" | 4' | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 7'6" | 29" | 9'8" | 3'10" | 36 5/8" | 4' | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 8'2" | 29" | 10'10" | 4'6" | 36 5/8" | 4'8" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 8'2" | 29" | 9'10" | 4'6" | 24 7/8" | 4'8" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
Diamond-Plate Steps | |||||||||||||||||||
| 6'2" | 29" | 6'6" | 2'6" | 24 7/8" | 2'8" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 6'2" | 29" | 7'6" | 2'6" | 36 5/8" | 2'8" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 6'10" | 29" | 7'7" | 3'2" | 24 7/8" | 3'4" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 6'10" | 29" | 8'7" | 3'2" | 36 5/8" | 3'4" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 7'6" | 29" | 8'9" | 3'10" | 24 7/8" | 4' | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 7'6" | 29" | 9'8" | 3'10" | 36 5/8" | 4' | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 8'2" | 29" | 10'10" | 4'6" | 36 5/8" | 4'8" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 8'2" | 29" | 9'10" | 4'6" | 24 7/8" | 4'8" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
Corrosion-Resistant Crossover Bridges
Aluminum is a good choice for damp areas and outdoor use. Use these bridges to walk over conveyors, machines, and pipes.
Note: The number of steps listed is the number of steps on each side including platform.
Serrated steps offer excellent slip resistance and an open-grid design that allows dirt and liquids to fall through.
Diamond-plate steps also provide slip resistance but do not allow anything to fall through.
Note: Crossover bridges meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
Overall | Ground Clearance | Platform | Step | Mounting Holes | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. (A) | Wd. (B) | Dp. (C) | Ht. (D) | Dp. (E) | Ht. | Wd. | Dp. | Wd. | Dp. | Cap., lbs. | No. of Steps | Handrail Ht. | Mounting Hardware Included | No. of | Dia. | Assembled or Unassembled | Specifications Met | Each | |
Aluminum | |||||||||||||||||||
Serrated Steps | |||||||||||||||||||
| 6'2" | 29" | 6'6" | 2'6" | 24 7/8" | 2'8" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 000000000 |
| 6'2" | 29" | 7'6" | 2'6" | 36 5/8" | 2'8" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 6'10" | 29" | 7'7" | 3'2" | 24 7/8" | 3'4" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 6'10" | 29" | 8'7" | 3'2" | 36 5/8" | 3'4" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 7'6" | 29" | 8'9" | 3'10" | 24 7/8" | 4' | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 7'6" | 29" | 9'8" | 3'10" | 36 5/8" | 4' | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 8'2" | 29" | 10'10" | 4'6" | 36 5/8" | 4'8" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
| 8'2" | 29" | 9'10" | 4'6" | 24 7/8" | 4'8" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 0000000 | 00000000 |
Diamond-Plate Steps | |||||||||||||||||||
| 6'2" | 29" | 6'6" | 2'6" | 24 7/8" | 2'8" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 6'2" | 29" | 7'6" | 2'6" | 36 5/8" | 2'8" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 4 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 6'10" | 29" | 7'7" | 3'2" | 24 7/8" | 3'4" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 6'10" | 29" | 8'7" | 3'2" | 36 5/8" | 3'4" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 5 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 7'6" | 29" | 8'9" | 3'10" | 24 7/8" | 4' | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 7'6" | 29" | 9'8" | 3'10" | 36 5/8" | 4' | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 6 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 8'2" | 29" | 10'10" | 4'6" | 36 5/8" | 4'8" | 24" | 49" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
| 8'2" | 29" | 9'10" | 4'6" | 24 7/8" | 4'8" | 24" | 37" | 24 1/8" | 4 7/8" | 500 | 7 | 42" | No | 4 | 5/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622 | 00000000 | 00000000 |
Build-Your-Own Fixed Work Platforms
Shown Assembled

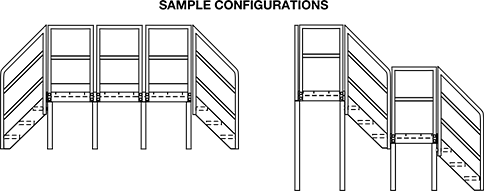

Configure a work platform to fit your application. Made of aluminum, these platforms are lightweight and corrosion resistant. Platform and steps are serrated for maximum slip resistance.
First, determine how high your work platform needs to be and choose the stairs that accommodate that height. Then, choose a platform section based on the desired length. Next, choose platform supports that correspond to the height of your stairs—each end of the platform must be supported by a platform support. Finally, choose handrails for the stairs and platform. Assembled work platforms should be secured to a supporting surface (mounting hardware not included).
Platform handrails have built-in toeboards.
Note: Work platforms meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices. Work platforms also meet CAL-OSHA standards, which is required for use in California.
Stairs
Step | Mounting Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Platform Ht. | Ground Clearance Ht. | No. of Steps | Wd. | Dp. | Tread | Climbing Angle | Cap., lbs. | Assembled or Unassembled | Mounting Hardware Included | No. of | Dia. | Specifications Met | Each | |
Aluminum | ||||||||||||||
| 18" | 14" | 1 | 24" | 9 1/2" | Serrated | 45° | 500 | Unassembled | No | 4 | 7/16" | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 0000000 |
| 27" | 23" | 2 | 24" | 9 1/2" | Serrated | 45° | 500 | Unassembled | No | 4 | 7/16" | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 36" | 32" | 3 | 24" | 9 1/2" | Serrated | 45° | 500 | Unassembled | No | 4 | 7/16" | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 45" | 41" | 4 | 24" | 9 1/2" | Serrated | 45° | 500 | Unassembled | No | 4 | 7/16" | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 54" | 50" | 5 | 24" | 9 1/2" | Serrated | 45° | 500 | Unassembled | No | 4 | 7/16" | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 63" | 59" | 6 | 24" | 9 1/2" | Serrated | 45° | 500 | Unassembled | No | 4 | 7/16" | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 72" | 68" | 7 | 24" | 9 1/2" | Serrated | 45° | 500 | Unassembled | No | 4 | 7/16" | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 81" | 77" | 8 | 24" | 9 1/2" | Serrated | 45° | 500 | Unassembled | No | 4 | 7/16" | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
Stair Handrails
| For Platform Ht. | Ht. | Assembled or Unassembled | Specifications Met | Each | |
Aluminum | |||||
|---|---|---|---|---|---|
| 18" | 36 1/2" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 27" | 36 1/2" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 36" | 36 1/2" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 45" | 36 1/2" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 54" | 36 1/2" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 63" | 36 1/2" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 72" | 36 1/2" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 81" | 36 1/2" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
Platform Supports
Mounting Holes | ||||||||
|---|---|---|---|---|---|---|---|---|
| For Platform Ht. | Assembled or Unassembled | Mounting Hardware Included | No. of | Dia. | Includes | Specifications Met | Each | |
Aluminum | ||||||||
| 18" | Unassembled | No | 10 | 7/16" | 2 Platform Support Legs | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 0000000 |
| 27" | Unassembled | No | 10 | 7/16" | 2 Platform Support Legs | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 36" | Unassembled | No | 10 | 7/16" | 1 Platform Support with 2 Legs | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 45" | Unassembled | No | 10 | 7/16" | 1 Platform Support with 2 Legs | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 54" | Unassembled | No | 10 | 7/16" | 1 Platform Support with 2 Legs | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 63" | Unassembled | No | 10 | 7/16" | 1 Platform Support with 2 Legs | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 72" | Unassembled | No | 10 | 7/16" | 1 Platform Support with 2 Legs | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 81" | Unassembled | No | 10 | 7/16" | 1 Platform Support with 2 Legs | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
Platform Sections
| Lg. | Wd. | Cap., lbs. | Platform Tread | Assembled or Unassembled | Specifications Met | Each | |
Aluminum | |||||||
|---|---|---|---|---|---|---|---|
| 30" | 30" | 500 | Serrated | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 0000000 |
| 60" | 30" | 500 | Serrated | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
| 90" | 30" | 500 | Serrated | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 00000000 |
| 120" | 30" | 500 | Serrated | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 00000000 |
Platform Handrails
| For Platform Lg. | Ht. | Toeboard Ht. | Assembled or Unassembled | Specifications Met | Each | |
Aluminum | ||||||
|---|---|---|---|---|---|---|
| 30" | 42" | 4" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 0000000 |
| 60" | 42" | 4" | Unassembled | ANSI/ASSE A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 000000 |
Nonconductive Build-Your-Own Fixed Work Platforms
Shown Assembled
These platforms are nonconductive fiberglass. Configure them to fit your application. For good slip resistance, platforms are perforated and stairs are grit coated.
First, determine how high your work platform needs to be and choose the stairs that accommodate that height. Then, choose a platform section based on the desired length. Next, choose platform supports that correspond to the height of your stairs—each end of the platform must be supported by a platform support. Finally, choose handrails for the stairs and platform. Assembled work platforms should be secured to a supporting surface.
Platform handrails have built-in toeboards.
Platform supports are required at each end of a platform section. Supports must be used every 60", so 120" long platform sections also require a support in the middle.
Note: Work platforms meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices. Work platforms also meet CAL-OSHA standards, which is required for use in California.
Stairs
Step | Mounting Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Platform Ht. | Ground Clearance Ht. | No. of Steps | Wd. | Dp. | Finish | Cap., lbs. | Color | Assembled or Unassembled | Mounting Hardware Included | No. of | Dia. | Specifications Met | Each | |
Fiberglass | ||||||||||||||
| 18" | 11" | 1 | 25 3/4" | 10 1/2" | Grit Coated | 250 | Gray | Unassembled | Yes | 2 | 9/16" | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 0000000 |
| 27" | 20" | 2 | 25 3/4" | 10 1/2" | Grit Coated | 250 | Gray | Unassembled | Yes | 2 | 9/16" | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
| 36" | 29" | 3 | 25 3/4" | 10 1/2" | Grit Coated | 250 | Gray | Unassembled | Yes | 2 | 9/16" | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
| 45" | 38" | 4 | 25 3/4" | 10 1/2" | Grit Coated | 250 | Gray | Unassembled | Yes | 2 | 9/16" | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
Stair Handrails
| For Platform Ht. | Ht. | Color | Assembled or Unassembled | Mounting Hardware Included | Specifications Met | Each | |
Fiberglass | |||||||
|---|---|---|---|---|---|---|---|
| 27" | 42" | Yellow | Unassembled | Yes | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 0000000 |
| 36" | 42" | Yellow | Unassembled | Yes | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
| 45" | 42" | Yellow | Unassembled | Yes | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
Platform Supports
Mounting Holes | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Platform Ht. | Color | Assembled or Unassembled | Mounting Hardware Included | No. of | Dia. | Includes | Specifications Met | Each | |
Fiberglass | |||||||||
| 18" | Gray | Unassembled | Yes | 2 | 9/16" | 4 Mounting Brackets, 2 Platform Support Legs | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 0000000 |
| 27" | Gray | Unassembled | Yes | 2 | 9/16" | 4 Mounting Brackets, 2 Platform Support Legs | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
| 36" | Gray | Unassembled | Yes | 2 | 9/16" | 4 Mounting Brackets, 2 Platform Support Legs | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
| 45" | Gray | Unassembled | Yes | 2 | 9/16" | 4 Mounting Brackets, 2 Platform Support Legs | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
Platform Sections
| Lg. | Wd. | Cap., lbs. | Platform Tread | Color | Assembled or Unassembled | Mounting Hardware Included | Specifications Met | Each | |
Fiberglass | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 30" | 30" | 500 | Perforated | Gray | Unassembled | No | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 0000000 |
| 60" | 30" | 500 | Perforated | Gray | Unassembled | No | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 00000000 |
| 120" | 30" | 500 | Perforated | Gray | Unassembled | No | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 00000000 |
Platform Handrails
| For Platform Lg. | Ht. | Toeboard Ht. | Color | Assembled or Unassembled | Mounting Hardware Included | Specifications Met | Each | |
Fiberglass | ||||||||
|---|---|---|---|---|---|---|---|---|
| 30" | 42" | 4" | Yellow | Unassembled | Yes | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 0000000 |
| 60" | 42" | 4" | Yellow | Unassembled | Yes | Cal/OSHA Compliant Title 8 Section 3642, OSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
Fixed Work Platforms
Install these platforms for easy access to elevated areas. They're large enough to provide plenty of space for working. Platform and steps are serrated for maximum slip resistance and to allow dirt and debris to fall through.
Note: The number of steps listed includes the platform.
Styles 1-5 allow you to lower the platform up to 3" by sliding the U-bolts.
Style 7 have a hinged access panel that you can flip up and remove to inspect and maintain nearby machinery, such as conveyor systems.
Note: Work platforms meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
Also Available: Other platform sizes. Please select 8031T999 and specify style number, platform size, and platform height.
Platforms
(1) Platform
(2) Platform
(3) Platform
(4) Platform
(5) Platform
(6) Platform
(7) Platform
Replacement Platform Handrail
Replacement Stair Handrail
Replacement Platform Leg
Replacement Platform Post
Platforms | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Overall | Step | Repl. Platform Legs | Repl. Platform Posts | Repl. Platform Handrails | Repl. Stair Handrails | ||||||||||||||
| Style | Ht. (A) | Wd. (B) | Dp. (C) | Max. Platform Ht. (D) | Ground Clearance Ht. (E) | No. of Steps | Wd. | Dp. | Cap., lbs. | Each | Each | Each | Each | Each | |||||
Gray Powder-Coated Steel | |||||||||||||||||||
36" Platform Wd. × 39" Platform Dp.—Unassembled (Meets Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25) | |||||||||||||||||||
| 1 | 1'9" | 39" | 4' | 1'9" | 1'3 1/4" | 2 | 36" | 9 1/2" | 500 | 000000 | 0000000 | 00000000 | 000000 | 00000000 | 000000 | 000000 | 00 | 000000 | 00 |
| 1 | 2'9" | 39" | 4'9" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 000000 | 000000 | 00000000 | 00000 | 00000000 | 00000 | 000000 | 00 | 000000 | 00 |
| 2 | 5' | 39" | 4' | 1'9" | 1'3 1/4" | 2 | 36" | 9 1/2" | 500 | 0000000 | 000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 0000000 | 00000000 | 0000000 |
| 2 | 5'6" | 39" | 4'9" | 2'3" | 1'9 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 2 | 6' | 39" | 4'9" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 2 | 7' | 39" | 5'6" | 3'9" | 3'3 1/4" | 4 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 3 | 5' | 39" | 4' | 1'9" | 1'3 1/4" | 2 | 36" | 9 1/2" | 500 | 0000000 | 000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 4 | 6'6" | 39" | 5'6" | 3'3" | 2'9 1/4" | 4 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 4 | 7' | 39" | 5'6" | 3'9" | 3'3 1/4" | 4 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 5 | 6' | 39" | 6'3" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 5 | 7' | 39" | 7'9" | 3'9" | 3'3 1/4" | 4 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 6 | 6' | 39" | 6'3" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
36" Platform Wd. × 39" Platform Dp.—Unassembled (Meets Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.28, OSHA Compliant 29 CFR 1910.29) | |||||||||||||||||||
| 3 | 5'6" | 39" | 4'9" | 2'3" | 1'9 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 3 | 6' | 39" | 4'9" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 5 | 5' | 39" | 4'9" | 1'9" | 1'3 1/4" | 2 | 36" | 9 1/2" | 500 | 0000000 | 000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
36" Platform Wd. × 77" Platform Dp.—Unassembled (Meets Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25) | |||||||||||||||||||
| 2 | 5' | 39" | 7'2" | 1'9" | 1'3 1/4" | 2 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 2 | 5'6" | 39" | 7'11" | 2'3" | 1'9 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 2 | 6' | 39" | 7'11" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 2 | 7' | 39" | 8'8" | 3'9" | 3'3 1/4" | 4 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 3 | 5' | 39" | 7'2" | 1'9" | 1'3 1/4" | 2 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 3 | 5'6" | 39" | 7'11" | 2'3" | 1'9 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 3 | 6' | 39" | 7'11" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 4 | 6'6" | 39" | 8'8" | 3'3" | 2'9 1/4" | 4 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 4 | 7' | 39" | 8'8" | 3'9" | 3'3 1/4" | 4 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 5 | 5' | 39" | 7'11" | 1'9" | 1'3 1/4" | 2 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 5 | 6' | 39" | 9'5" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 5 | 7' | 39" | 10'11" | 3'9" | 3'3 1/4" | 4 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
| 6 | 6' | 39" | 9'5" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 00000000 | 000000 | 00000000 | 000000 |
36" Platform Wd. × 77" Platform Dp.—Unassembled (Meets Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.28, OSHA Compliant 29 CFR 1910.29) | |||||||||||||||||||
| 1 | 1'9" | 39" | 7'2" | 1'9" | 1'3 1/4" | 2 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 000000 | 00 | 000000 | 00 |
| 1 | 2'9" | 39" | 7'11" | 2'9" | 2'3 1/4" | 3 | 36" | 9 1/2" | 500 | 0000000 | 00000000 | 00000000 | 00000 | 00000000 | 00000 | 000000 | 00 | 000000 | 00 |
Gray Painted Steel | |||||||||||||||||||
30" Platform Wd. × 30" Platform Dp.—Unassembled (Meets Cal/OSHA Compliant Title 8 Section 3234, OSHA Compliant 29 CFR 1910.25) | |||||||||||||||||||
| 7 | 1'6" | 42" | 3'4" | 1'6" | 1'2" | 2 | 27" | 9 1/2" | 500 | 0000000 | 00000000 | 000000 | 00 | 000000 | 00 | 000000 | 00 | 000000 | 00 |
| 7 | 2'3" | 42" | 4'1" | 2'3" | 1'11" | 3 | 27" | 9 1/2" | 500 | 0000000 | 00000000 | 000000 | 00 | 000000 | 00 | 000000 | 00 | 000000 | 00 |
| 7 | 3' | 42" | 4'11" | 3' | 2'8" | 4 | 27" | 9 1/2" | 500 | 0000000 | 00000000 | 000000 | 00 | 000000 | 00 | 000000 | 00 | 000000 | 00 |
| 7 | 3'9" | 42" | 5'8" | 3'9" | 3'5" | 5 | 27" | 9 1/2" | 500 | 0000000 | 00000000 | 000000 | 00 | 000000 | 00 | 000000 | 00 | 000000 | 00 |
30" Platform Wd. × 60" Platform Dp.—Unassembled (Meets Cal/OSHA Compliant Title 8 Section 3234, OSHA Compliant 29 CFR 1910.25) | |||||||||||||||||||
| 7 | 1'6" | 42" | 5'10" | 1'6" | 1'2" | 2 | 27" | 9 1/2" | 500 | 0000000 | 00000000 | 000000 | 00 | 000000 | 00 | 000000 | 00 | 000000 | 00 |
| 7 | 2'3" | 42" | 6'7" | 2'3" | 1'11" | 3 | 27" | 9 1/2" | 500 | 0000000 | 00000000 | 000000 | 00 | 000000 | 00 | 000000 | 00 | 000000 | 00 |
| 7 | 3' | 42" | 7'5" | 3' | 2'8" | 4 | 27" | 9 1/2" | 500 | 0000000 | 00000000 | 000000 | 00 | 000000 | 00 | 000000 | 00 | 000000 | 00 |
| 7 | 3'9" | 42" | 8'2" | 3'9" | 3'5" | 5 | 27" | 9 1/2" | 500 | 0000000 | 00000000 | 000000 | 00 | 000000 | 00 | 000000 | 00 | 000000 | 00 |
Replacement Parts for Gray Powder-Coated Steel Platforms
Replacement Back Handrail
Replacement Cross Brace
Replacement Platform
Replacement Platform Connector
Replacement
Step
Connector Post
Step
Connector Post
Replacement Step Leg
Replacement Steps
Replacement Parts for Gray Painted Steel Platforms
Replacement Steps
Replacement Platform
Replacement Support Frame
Platform | ||||||
|---|---|---|---|---|---|---|
| Component | For No. of Steps | For Platform Overall Ht. | Wd. | Dp. | Each | |
| Steps | 2 | __ | __ | __ | 00000000 | 0000000 |
| Steps | 3 | __ | __ | __ | 00000000 | 000000 |
| Steps | 4 | __ | __ | __ | 00000000 | 000000 |
| Steps | 5 | __ | __ | __ | 00000000 | 000000 |
| Platform | __ | __ | 30" | 30" | 00000000 | 000000 |
| Platform | __ | __ | 30" | 60" | 00000000 | 00000000 |
| Support Frame | __ | 1'6" | __ | __ | 00000000 | 000000 |
| Support Frame | __ | 2'3" | __ | __ | 00000000 | 000000 |
| Support Frame | __ | 3' | __ | __ | 00000000 | 000000 |
| Support Frame | __ | 3'9" | __ | __ | 00000000 | 000000 |
Clean Room Work Platforms
Access elevated areas with these platforms that meet Fed. Std. Class 100 and ISO Class 5 clean room requirements. They are 316 stainless steel to withstand repeated washdowns. They also have a smooth finish and seamless welds, so there are no cracks or crevices that can harbor dust, dirt, and bacteria. Steps and platform are perforated to provide slip resistance. Easily move the platform with the four swivel casters. They’re spring loaded to stay stationary while in use—when you step on, the casters retract; when you step off, the casters roll again.
Note: The number of steps listed includes the platform.
Overall | Platform | Step | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. (A) | Wd. (B) | Dp. (C) | Wd. | Dp. | Ht. (D) | Ground Clearance Ht. (E) | Cap., lbs. | Wd. | Dp. | Tread | Wheel Configuration | Weight Actuation Type | No. of Wheel Brakes | Assembled or Unassembled | Environmental Rating | Each | |
316 Stainless Steel | |||||||||||||||||
| 4'9" | 36" | 4'9" | 33" | 49" | 1'9" | 1'8" | 300 | 34" | 9" | Perforated | Four Swivel Casters | Spring-Loaded Casters | 4 | Assembled | Fed. Std. Class 100, ISO Class 5 | 0000000 | 000000000 |
Rolling Step Stools with Handrail
Grip the handrail for stability. Casters are spring loaded—when you're on the stool, they retract to keep the stool stationary. When you step off, the casters roll again.
Overall | Top Step | Bottom Step | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cap., lbs. | Ht.(A) | Wd. (B) | Dp. (C) | Ht. (D) | Wd. | Dp. | Wd. | Dp. | Assembled or Unassembled | Wheel Configuration | Specifications Met | Each | |
Aluminum | |||||||||||||
With Serrated Steps | |||||||||||||
| 500 | 50" | 28" | 46" | 20" | 24" | 24" | 24" | 10 1/2" | Unassembled | Four Swivel Casters | OSHA Compliant 29 CFR 1910 Subpart D, ANSI/ASSE A1264.1 | 000000 | 0000000 |
| 500 | 50" | 28" | 62" | 20" | 24" | 39 1/2" | 24" | 10 1/2" | Unassembled | Four Swivel Casters | OSHA Compliant 29 CFR 1910 Subpart D, ANSI/ASSE A1264.1 | 000000 | 000000 |
