About Sound Levels
Measured in decibels (dB), volume ratings indicate how much noise equipment makes. Some common volume levels include a whisper @ 20 dB, a refrigerator @ 40 dB, a conversation @ 60 dB, and a light machine shop @ 90 dB. OSHA recommends hearing protection for exposure to 80 dB and greater.
About Exhaust Fans
More
About Calculating the Airflow Required for Air Cleaning
More
Economy Direct-Drive Mobile Floor Fans with Tilt Stand
Tilt fans to direct air where it's needed. These direct-drive fans have fewer moving parts than belt-drive fans for less maintenance.
Fans with a totally enclosed motor enclosure can be used in dirty, dusty, and damp environments.
30" and 36" blade diameter fans can also mount to the wall and ceiling.
Fans | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Overall | Replacement Wheels | |||||||||||||||||
| Blade Dia. | Airflow, cfm | Volume | Motor Speed, rpm | No. of Speeds | Power, hp | Current, A | Ht. | Wd. | Dp. | Cord Lg., ft. | Housing Material | Blade Material | Guard Material | Specifications Met | Each | Each | ||
Totally Enclosed Motor Enclosure | ||||||||||||||||||
120V AC, Single Phase—Three Prong Plug | ||||||||||||||||||
| 30" | 5,600 | 76 dB @ 5 ft. | 1,110 | 3 | 1/4 | 2.9 | 36" | 35" | 14" | 10 | Steel | Steel | Steel | UL Listed | 00000000 | 0000000 | 000000000 | 0000000 |
Blade | ||||
|---|---|---|---|---|
| Dia. | Material | No. of | Each | |
For Fans with Totally Enclosed Motor Enclosure | ||||
| 30" | Galvanized Steel | 3 | 000000000 | 0000000 |
| For Motor Speed, rpm | For Blade Dia. | Each | |
For Fans with Totally Enclosed Motor Enclosure | |||
|---|---|---|---|
| 1,110 | 30" | 000000000 | 0000000 |
for Currents
2.9A and 4.6A
| For Current, A | Each | |
For Fans with Totally Enclosed Motor Enclosure | ||
|---|---|---|
| 2.9 | 000000000 | 000000 |
Dust-Resistant Direct-Drive Wall-Mount Exhaust Fans
Better suited for dirty, dusty, and damp environments than standard direct-drive fans, these have a totally enclosed motor enclosure. Direct-drive fans have fewer moving parts than belt-drive fans for less maintenance. Use these fans to draw stagnant and humid air out of a room or area.
Collars and louvers are sold separately. Use a collar to connect a wall-mount exhaust fan to a louver.
For technical drawings and 3-D models, click on a part number.
Fans | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Overall | Collars | ||||||||||||||||
| Blade Dia. | Airflow, cfm | Volume | Motor Speed, rpm | No. of Speeds | Power, hp | Ht. | Wd. | Dp. | Wt., lbs. | Max. Ambient Temperature | Frame Material | Blade Material | Each | Each | |||
120V AC, Single Phase—Hardwire | |||||||||||||||||
| 4 | 30" | 7,300 | 61 dB @ 5 ft. | 825 | 1 | 1/2 | 36" | 36" | 13 3/4" | 75 | 104° F | Steel | Steel | 0000000 | 000000000 | 0000000 | 0000000 |
208-230/460V AC, Three Phase—Hardwire | |||||||||||||||||
| 4 | 30" | 7,300 | 61 dB @ 5 ft. | 825 | 1 | 1/2 | 36" | 36" | 13 3/4" | 74 | 104° F | Steel | Steel | 0000000 | 00000000 | 0000000 | 000000 |
230/460V AC, Three Phase—Hardwire | |||||||||||||||||
| 5 | 30" | 14,400 | 80 dB @ 5 ft. | 1,750 | 1 | 3 | 36" | 36" | 14 1/4" | 148 | 104° F | Steel | Steel | 0000000 | 00000000 | 0000000 | 000000 |
Belt-Drive Wall-Mount Exhaust Fans
Belt-drive fans are quieter and have a longer life span than direct-drive fans because components can be replaced if worn or damaged. Use these fans to draw stagnant and humid air out of a room or area. All have an open dripproof motor enclosure for relatively clean, dry, indoor locations.
Collars and louvers are sold separately. Use a collar to connect a wall-mount exhaust fan to a louver.
For technical drawings and 3-D models, click on a part number.
Fans | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Overall | Collars | |||||||||||||
| Blade Dia. | Airflow, cfm | Volume | Motor Speed, rpm | No. of Speeds | Power, hp | Ht. | Wd. | Dp. | Frame Material | Blade Material | Each | Each | ||
120V AC, Single Phase—Hardwire | ||||||||||||||
| 30" | 8,200 | 56 dB @ 5 ft. | 600 | 1 | 1/2 | 36" | 36" | 18 3/8" | Steel | Steel | 0000000 | 0000000 | 0000000 | 0000000 |
230/460V AC, Three Phase—Hardwire | ||||||||||||||
| 30" | 8,200 | 56 dB @ 5 ft. | 600 | 1 | 1/2 | 36" | 36" | 18 3/8" | Steel | Steel | 0000000 | 000000 | 0000000 | 000000 |
| For Blade Dia. | Each | |
| 30" | 00000000 | 000000 |
Blade | ||||
|---|---|---|---|---|
| Dia. | Material | No. of | Each | |
| 30" | Galvanized Steel | 4 | 00000000 | 0000000 |

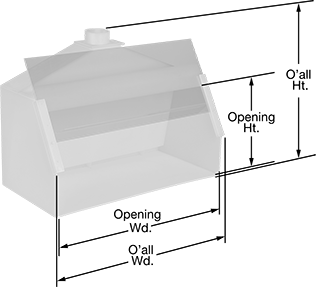

Fume Hoods
Pair these hoods with an exhaust system to contain harmful fumes, vapors, and gasses while venting them away from work spaces—they protect users from inhaling or coming in contact with them. To access the enclosed space, these hoods have an adjustable sliding window, which also lets your exhaust system pull air from the outside.
Polypropylene hoods are nonconductive. They’re also translucent, so they let in more light than polyethylene hoods for added visibility.
Overall | Opening | Windows | Outlets | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Recommended Airflow, cfm | Height | Width | Depth | Height | Width | Number of | Material | Clarity | Number of | OD | Gender | Each | |
Polypropylene Plastic with Adjustable Sliding Window | |||||||||||||
| 500 | 36" | 48" | 24" | 21" | 46" | 1 | Acrylic Plastic | Clear | 1 | 6" | Male | 00000000 | 000000000 |
