Made-to-Order Unthreaded Spacers
Reference Table 1: Maximum Lengths by ID

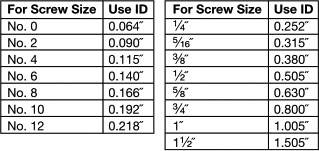

Reference Table 2: IDs for Common Screw Sizes
How to Order:
1. Choose material.
2. Find the needed OD and length combination.
3. Specify OD, length, and ID in .001” increments. Long lengths may not be possible at small IDs. See Reference Table 1: Maximum Lengths by ID.
Certificates with a traceable lot number are available for these products. Download certificates from ORDER HISTORY after your order ships.
Choose an ID | Each | ||||||
|---|---|---|---|---|---|---|---|
| Choose an OD | Choose a Lg. | Min. | Max. | 1-4 | 5-9 | 10-Up | |
18-8 Stainless Steel  | |||||||
| 0.125" to 0.250" | 0.125" to 2.000" | 0.063" | ID must be at least 0.050" less than OD | 000000000 | 000000 | 000000 | 000000 |
| 0.251" to 0.500" | 0.125" to 4.000" | 0.125" | ID must be at least 0.060" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 0.501" to 1.000" | 0.125" to 5.000" | 0.188" | ID must be at least 0.120" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 1.001" to 1.500" | 0.125" to 3.000" | 0.250" | ID must be at least 0.160" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 1.001" to 1.500" | 3.001" to 6.000" | 0.250" | ID must be at least 0.160" less than OD | 000000000 | 000000 | 00000 | 00000 |
| 1.501" to 2.000" | 0.125" to 3.000" | 0.375" | ID must be at least 0.250" less than OD | 000000000 | 000000 | 00000 | 00000 |
| 1.501" to 2.000" | 3.001" to 6.000" | 0.375" | ID must be at least 0.250" less than OD | 000000000 | 000000 | 000000 | 00000 |
| 2.001" to 3.000" | 0.125" to 3.000" | 0.625" | ID must be at least 0.375" less than OD | 000000000 | 000000 | 000000 | 000000 |
| 2.001" to 3.000" | 3.001" to 6.000" | 0.625" | ID must be at least 0.375" less than OD | 000000000 | 000000 | 000000 | 000000 |
12L14 Steel | |||||||
| 0.125" to 0.250" | 0.125" to 2.000" | 0.063" | ID must be at least 0.050" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 0.251" to 0.500" | 0.125" to 4.000" | 0.125" | ID must be at least 0.060" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 0.501" to 1.000" | 0.125" to 5.000" | 0.188" | ID must be at least 0.120" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 1.001" to 1.500" | 0.125" to 3.000" | 0.250" | ID must be at least 0.160" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 1.001" to 1.500" | 3.001" to 6.000" | 0.250" | ID must be at least 0.160" less than OD | 000000000 | 000000 | 00000 | 00000 |
| 1.501" to 2.000" | 0.125" to 3.000" | 0.375" | ID must be at least 0.250" less than OD | 000000000 | 000000 | 00000 | 00000 |
| 1.501" to 2.000" | 3.001" to 6.000" | 0.375" | ID must be at least 0.250" less than OD | 000000000 | 000000 | 000000 | 00000 |
| 2.001" to 3.000" | 0.125" to 3.000" | 0.625" | ID must be at least 0.375" less than OD | 000000000 | 000000 | 000000 | 000000 |
| 2.001" to 3.000" | 3.001" to 6.000" | 0.625" | ID must be at least 0.375" less than OD | 000000000 | 000000 | 000000 | 000000 |
6061 Aluminum | |||||||
| 0.125" to 0.250" | 0.125" to 2.000" | 0.063" | ID must be at least 0.050" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 0.251" to 0.500" | 0.125" to 4.000" | 0.125" | ID must be at least 0.060" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 0.501" to 1.000" | 0.125" to 5.000" | 0.188" | ID must be at least 0.120" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 1.001" to 1.500" | 0.125" to 3.000" | 0.250" | ID must be at least 0.160" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 1.001" to 1.500" | 3.001" to 6.000" | 0.250" | ID must be at least 0.160" less than OD | 000000000 | 000000 | 00000 | 00000 |
| 1.501" to 2.000" | 0.125" to 3.000" | 0.375" | ID must be at least 0.250" less than OD | 000000000 | 000000 | 00000 | 00000 |
| 1.501" to 2.000" | 3.001" to 6.000" | 0.375" | ID must be at least 0.250" less than OD | 000000000 | 000000 | 000000 | 00000 |
| 2.001" to 3.000" | 0.125" to 3.000" | 0.625" | ID must be at least 0.375" less than OD | 000000000 | 000000 | 000000 | 000000 |
| 2.001" to 3.000" | 3.001" to 6.000" | 0.625" | ID must be at least 0.375" less than OD | 000000000 | 000000 | 000000 | 000000 |
Brass | |||||||
| 0.125" to 0.250" | 0.125" to 2.000" | 0.063" | ID must be at least 0.050" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 0.251" to 0.500" | 0.125" to 4.000" | 0.125" | ID must be at least 0.060" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 0.501" to 1.000" | 0.125" to 5.000" | 0.188" | ID must be at least 0.120" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 1.001" to 1.500" | 0.125" to 3.000" | 0.250" | ID must be at least 0.160" less than OD | 000000000 | 00000 | 00000 | 00000 |
| 1.001" to 1.500" | 3.001" to 6.000" | 0.250" | ID must be at least 0.160" less than OD | 000000000 | 000000 | 00000 | 00000 |
| 1.501" to 2.000" | 0.125" to 3.000" | 0.375" | ID must be at least 0.250" less than OD | 000000000 | 000000 | 00000 | 00000 |
| 1.501" to 2.000" | 3.001" to 6.000" | 0.375" | ID must be at least 0.250" less than OD | 000000000 | 000000 | 000000 | 00000 |
| 2.001" to 3.000" | 0.125" to 3.000" | 0.625" | ID must be at least 0.375" less than OD | 000000000 | 000000 | 000000 | 000000 |
| 2.001" to 3.000" | 3.001" to 6.000" | 0.625" | ID must be at least 0.375" less than OD | 000000000 | 000000 | 000000 | 000000 |
Made-to-Order Press-Fit Drill Bushings
Mount flush with jig plates for precise drilling. These bushings can also be used as spacers, shims, and machinery bushings.
To Order: Specify ID, OD, and length from the ranges listed. The difference between the ID and OD must be at least 0.07".
Each | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Choose an ID | Choose an OD | Choose a Length | Length Tolerance | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
| 0.0135" to 2.2656" in 0.0001" increments | 0.1562" to 2.7500" in 0.0001" increments | 0.125" to 3" | -0.015" to 0.015" | P | Steel | Rockwell C61 | 00000000 | 000000 | 000000 | 000000 |
